| Place of Origin: | China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | BF10206001-7TH |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Chassis Material: | High Quality Aluminium Sheet Chassis | Size: | 440mm*250mm*44mm |
|---|---|---|---|
| Chassis Color: | Black | CPU: | 7th Gen I3-7130U / I5-7360U / I7-7560U / Celeron® 3865U |
| Memory: | Support 2*SO-DIMM, DDR4 | Gigabit LAN: | Onboard 6*Intel I211 GLAN |
| Console: | 1* RJ45 COM | Power Supply: | ATX Power Supply |
Notice:
When you inquiry , you can choose the following Model
BF10206001-7TH-3865U Integrated Kaby Lake-U Intel® Celeron® Processor 3865U dual cores 2 threads 1.8GHz Processor
BF10206001-7TH-I3 Integrated Kaby Lake-U i3-7130U dual cores 4 threads 2.7GHz Processor
BF10206001-7TH-I5 Integrated Kaby Lake-U i5-7360U dual cores 4 threads 2.3~3.6GHz Processor
BF10206001-7TH-I7 Integrated Kaby Lake-U i7-7560U dual cores 4 threads 2.4~3.8GHz Processor
1U rackmount 6 Gigabit LAN network security pFsense soft router firewall PC 7th Gen i3-7130U I5-7360U i7-7560U
Key Features
Integrated Intel® Core™Kaby Lake-U 7th Gen i3-7130U / I5-7360U / i7-7560U / Celeron® 3865U Processor
Integrated Intel® Iris® Plus Graphics 640
Support 2*SO-DIMM, DDR4 2133 / 2400MHz max 32GB
Support 1*MSATA SSD expansion
Support 1* 2.5”/3.5” SATA HDD bay
1* CISCO standard serial port
2* USB3.0
6* RJ45 Gigabit Ethernet Port
1* VGA display output
High quality aluminium sheet chassis

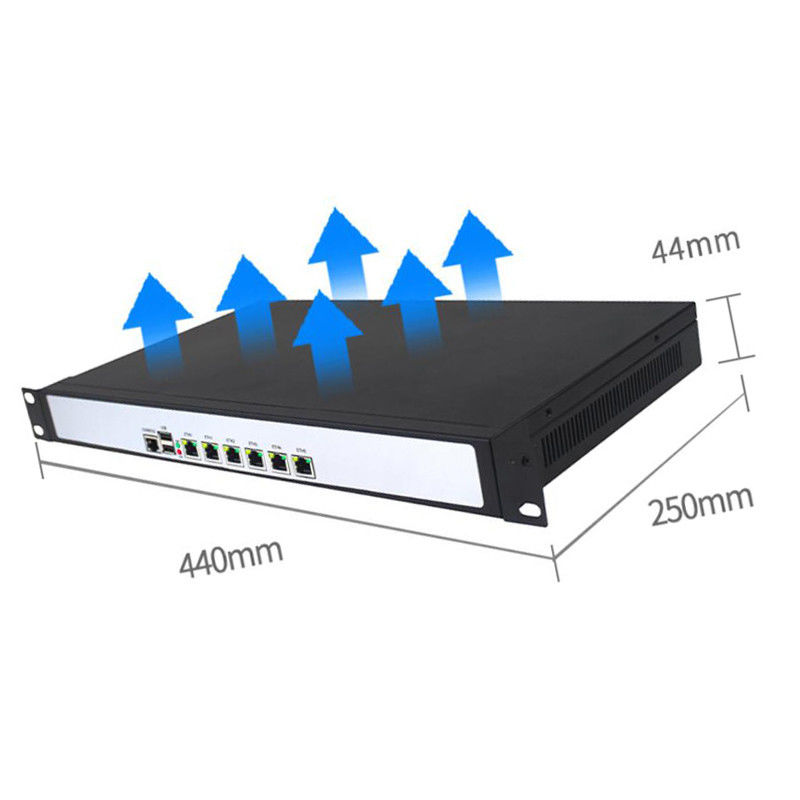

Dimension: 440mm*250mm*44mm
1U rackmount Standard chassis
Specifications
| Model No. | VGS-BF10206001-7360U | |
| Chassis | Color | Black |
| Dimension | 440mm*250mm*44mm | |
| Structure | 1U rackmount Standard chassis | |
| Material | High quality aluminium sheet chassis | |
| Platform | Processor |
Integrated Intel® Core™Kaby Lake-U 7th Gen i3-7130U / I5-7360U / i7-7560U / Celeron® 3865U Processor |
| Chipset | Intel | |
| Graphics |
Integrated Intel® Iris® Plus Graphics 640 support 1*VGA display output |
|
| Storage | Memory | Support 2*SO-DIMM, DDR4 2133 / 2400MHz max 32GB |
| HDD | Support 1* 2.5”/3.5” SATA HDD bay | |
| SSD | Support 1*MSATA SSD expansion | |
| Audio | Audio | N/A |
| Network | Ethernet | Onboard 6*Intel i211 GLAN |
| WiFi | N/A | |
| I/O Port | Serial Port | 1* CISCO standard serial port |
| USB | 2* USB3.0 | |
| LAN | 6* RJ45 Gigabit Ethernet Port | |
| LED | 1* HDD LED, 1* Power LED | |
| Display | 1* VGA display output | |
| Power Supply | 1* Power Interface | |
| Power Supply | Input | AC 110V ~ 240V |
| Power type | ATX power supply(Mean Well power supply) | |
| Reliability | Operating Temp. | 0℃~45℃ |
| Storage Temp. | -20℃~70℃ | |
| Relative Humidity | 5%-95%, no condensing | |
| Vibration | 0.5g rms/5-500HZ/random/operating | |
| Operate System | Support Win 7/8/10, Linux, Pfsense, Mikrotik, iKuai, WayOS, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos etc. | |
Shipping
Support DHL / UPS / FEDEX / air shipping deliver time 4 to 9 business days
Support Sea shipping for Batch order deliver time 25 to 50 days
Our service:
1. We can provide OEM/ODM services .
2. We can print your Logo when you make order more than 50 pieces
3. We can sell one sample for your test .
4. High-quality product and competitive price.
5. 1 years Warranty
