| Place of Origin: | China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | BF10206001-3TH |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Chassis: | High Quality Aluminium Sheet Chassis | Dimension: | 440mm*250mm*44mm |
|---|---|---|---|
| Chassis Color: | Black / Silver | CPU: | 3th Gen Intel® Core™ I3-3110M / I5-3320M / I7-3520M Dual Core Processor |
| RAM: | Support 1*SO-DIMM, DDR3L | Gigabit LAN: | 6 * Gigabit LAN |
Notice :
When you inquiry , you can choose the following Model :
BF10206001-3TH-I3 , Integrated Intel® Core™ Ivy Bridge i3-3110M dual cores 4 threads 2.4Ghz processor
BF10206001-3TH-I5 , Integrated Intel® Core™Ivy Bridge i5-3320M dual cores 4 threads 2.6~3.3Ghz processor
BF10206001-3TH-I7, Integrated Intel® Core™Ivy Bridge i7-3520M dual cores 4 threads 2.9~3.6Ghz processor
Dual core I5-3320M 6 Gigabit LAN 1U rackmount firewall PC appliance soft router support pFsense

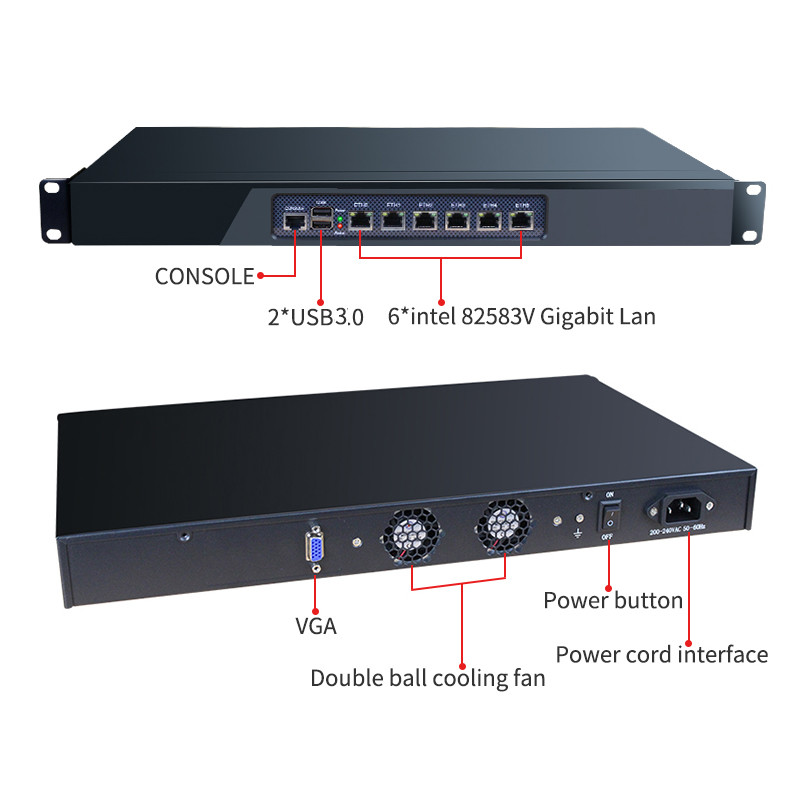

Key Features
Integrated 3th gen Intel® Core™ i3-3110M / I5-3320M / i7-3520M Dual core processor
Integrated HD Graphics 4000
Support 1*MSATA SSD expansion
Support 1* 2.5”/3.5” SATA HDD bay
1* CISCO standard serial port
2* USB3.0
6* RJ45 Gigabit Ethernet Port
1* VGA display output
High quality aluminium sheet chassis

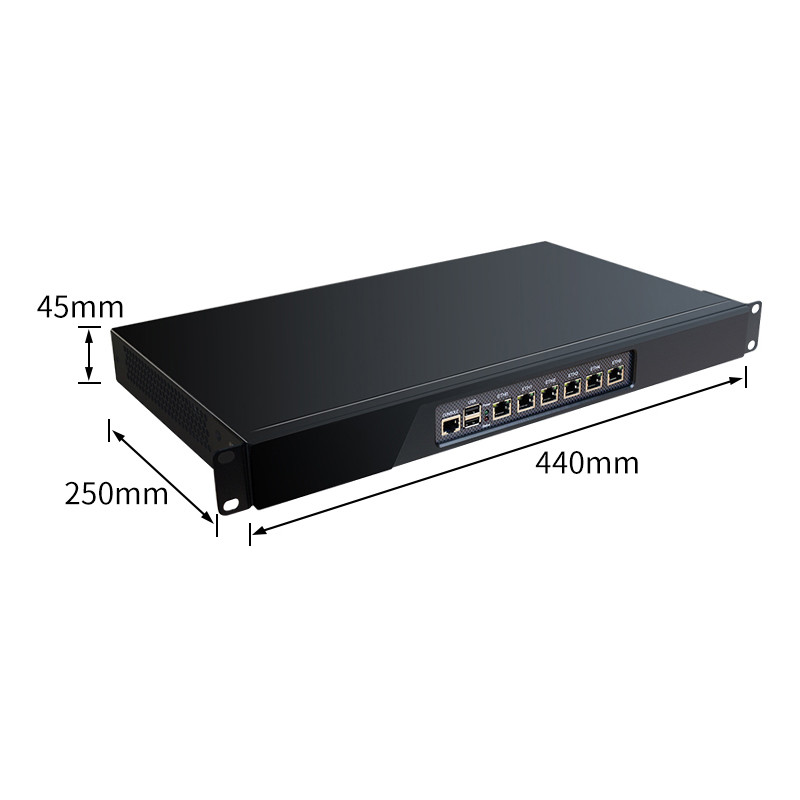

Dimension: 440mm*250mm*44mm
1U rackmount Standard chassis
Specifications
| Model No. | VGS-BF10206001-3320M | |
| Chassis | Color | Black |
| Dimension | 440mm*250mm*44mm | |
| Structure | 1U rackmount Standard chassis | |
| Material | High quality aluminium sheet chassis | |
| Platform | Processor |
Integrated 3th gen Intel® Core™ i3-3110M / I5-3320M / i7-3520M Dual core processor |
| Chipset | Intel | |
| Graphics |
Integrated HD Graphics 4000 support 1*VGA display output |
|
| Storage | Memory | Support 1*SO-DIMM, DDR3L 1333 / 1600MHz max 8GB |
| HDD | Support 1* 2.5”/3.5” SATA HDD bay | |
| SSD | Support 1*MSATA SSD expansion | |
| Audio | Audio | N/A |
| Network | Ethernet | Onboard 6*Intel i211 GLAN |
| WiFi | N/A | |
| I/O Port | Serial Port | 1* CISCO standard serial port |
| USB | 2* USB3.0 | |
| LAN | 6* RJ45 Gigabit Ethernet Port | |
| LED | 1* HDD LED, 1* Power LED | |
| Display | 1* VGA display output | |
| Power Supply | 1* Power Interface | |
| Power Supply | Input | AC 110V ~ 240V |
| Power type | ATX power supply(Mean Well power supply) | |
| Reliability | Operating Temp. | 0℃~45℃ |
| Storage Temp. | -20℃~70℃ | |
| Relative Humidity | 5%-95%, no condensing | |
| Vibration | 0.5g rms/5-500HZ/random/operating | |
| Operate System | Support Win 7/8/10, Linux, Pfsense, Mikrotik, iKuai, WayOS, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos etc. | |
About RMA
1--Warranty 1 year
2--If buyer confirm the item can`t work well due to the non-artificial factors,buyer can return it to our company. Buyers should keep it with proper packaging.
3--Buyers are responsible for return to china freight cost .
4--Seller will repair item and ship the repaired one to buyer,seller will pay the shipping cost from China to Buyer address.
5--Please contact us firstly before returning defective goods by email.
