| Place of Origin: | China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | BF12204003-J4105 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Chassis: | Aluminium Alloy | Dimension: | 121mm*121mm*40mm |
|---|---|---|---|
| Chassis Color: | Black | CPU: | Celeron J4105 |
| RAM: | DDR4 Max To 16GB | Gigabit LAN: | 4 Gigabit LAN |
| Highlight: | 4 Lan Port Mini PC J4105,PFsense 4 Lan Port Mini PC,WIFI Industrial Mini PC |
||

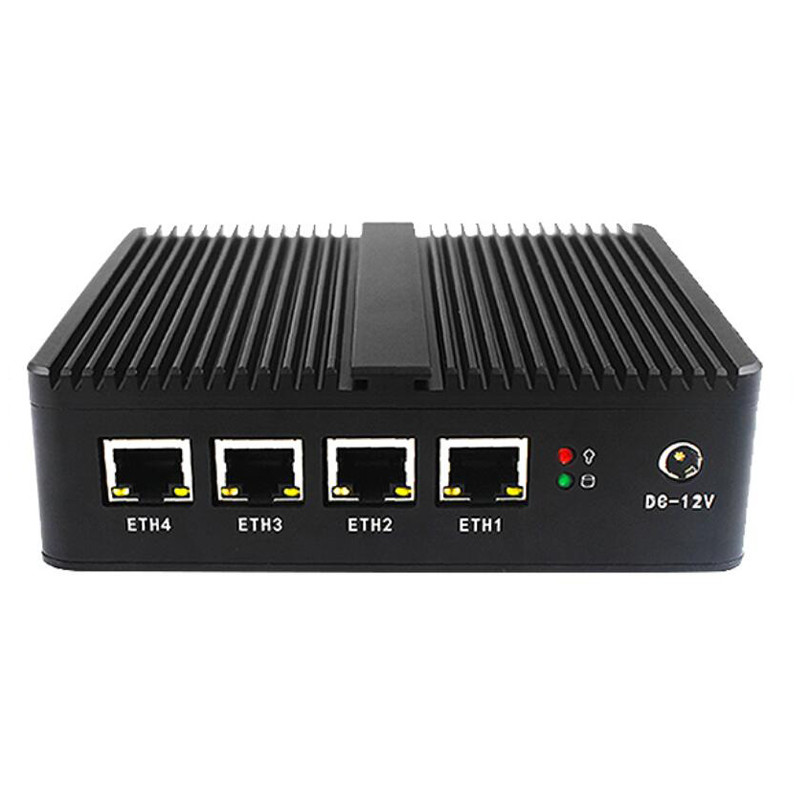

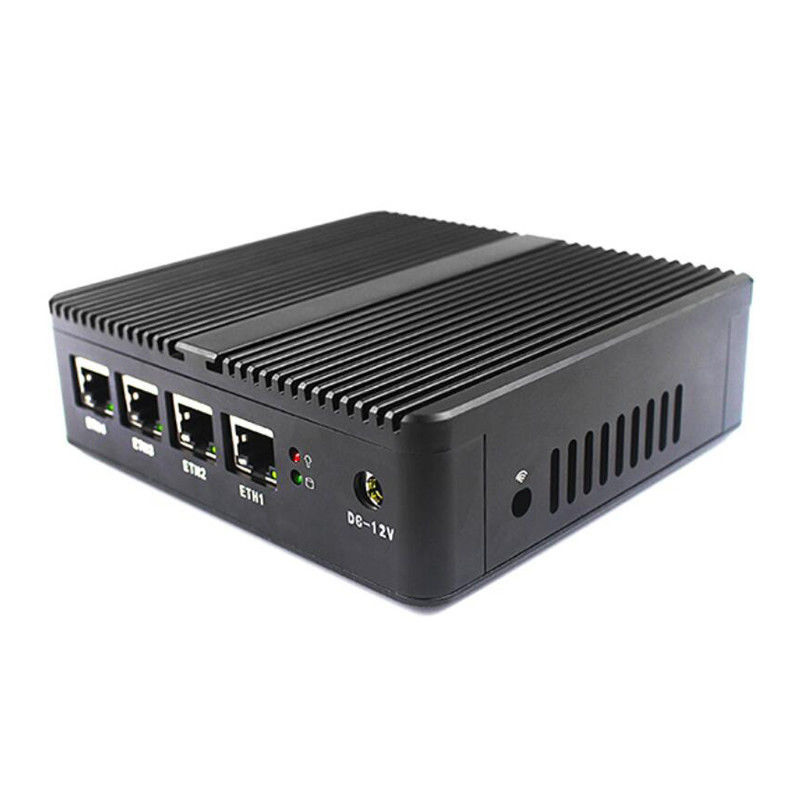

J4105 4 Gigabit LAN Industrial nano computer fanless mini pc firewall PC appliance soft router with WIFI support pFsense
Key Features
Integrated Intel® Celeron J4105 quad core 1.5G hz processor
Intel® UHD Graphics 600
Support DDR4 2133/2400mhz memory
Supports 1*2.5 inch hard drive
Support 1*MSATA SSD expansion
1* RS232 COM
4*RJ45 Gigabit Lan
4*USB3.0
1* H-D-M-I display output
DC 12V 4A power supply

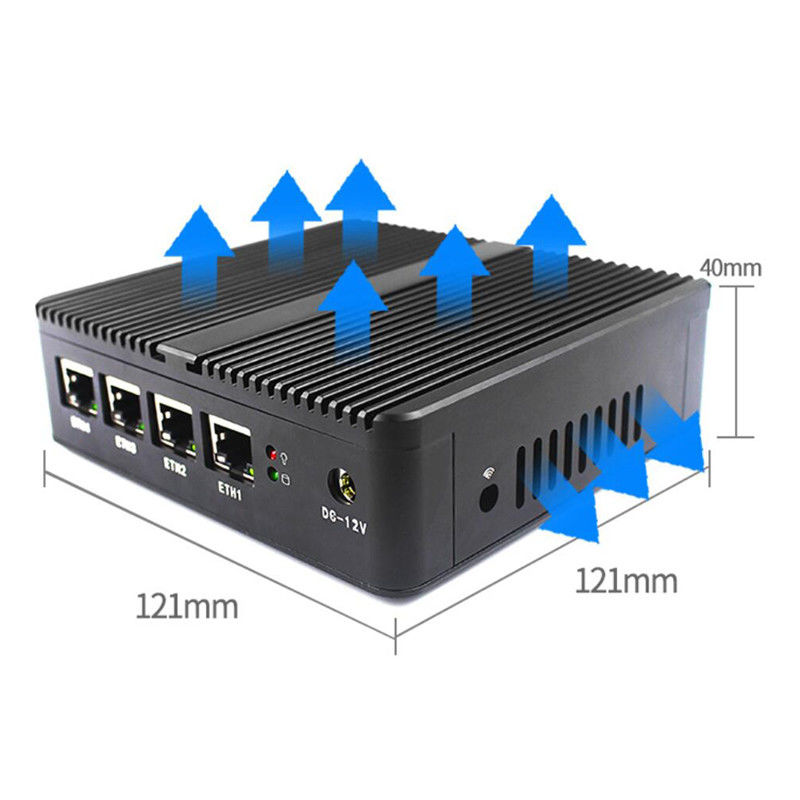

Dimension: 121mm*121mm*40mm
aluminium alloy chassis
Fanless design without noise
Specifications
| Model No. | BF12204003-J4105 | |
| Chassis | Color | Black |
| Dimension | 121mm*121mm*40mm | |
| Material | aluminium alloy chassis | |
| Platform | Processor |
Integrated Intel® Celeron J4105 quad core 4 threads 1.5Ghz processor Burst Frequency 2.50 GHz |
| Chipset | ||
| Graphics | Intel® UHD Graphics 600, support 1*H-D-M-I display output | |
| Storage | Memory | Support DDR4 memory 2133/2400MHz max to 16GB |
| HDD | supports 1* 2.5 inch hard drive | |
| SSD | Support 1*MSATA SSD expansion | |
| Audio | Audio | N/A |
| Network | Ethernet | Onboard Intel i211 chip 4*RJ45 GLAN |
| WiFi | ||

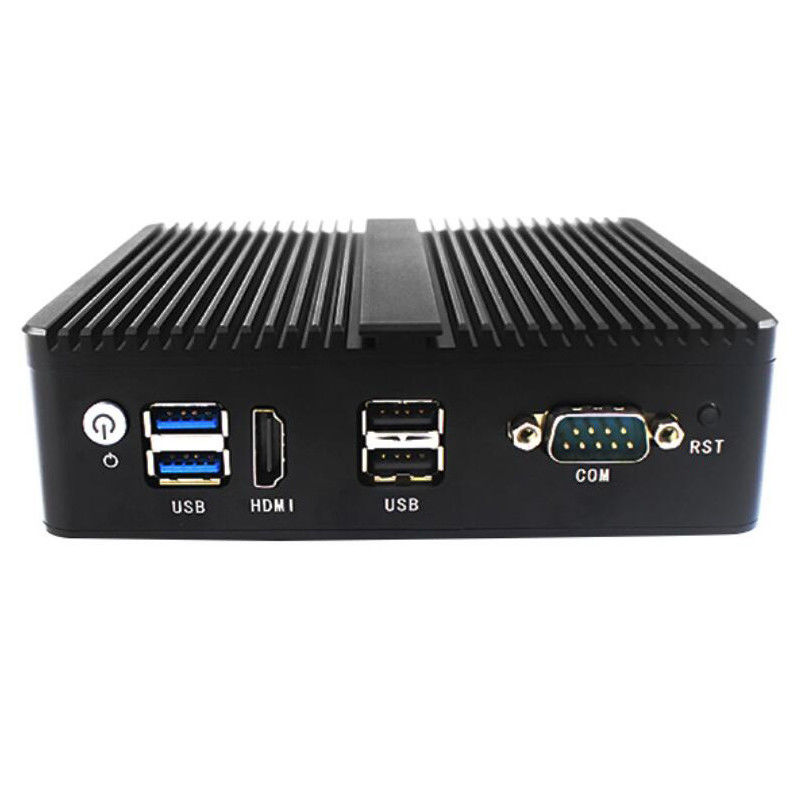

| Front I / O | 1*power button | |
| 1*RS232 COM port | ||
|
Interface |
2*USB2.0, 2*USB3.0 | |
| 1* H-D-M-I display output | ||
| Back I / O | 1*Power adapter interface | |
| 4*RJ45 Gigabit Lan | ||
| 1*Power LED, 1*HDD LED | ||
| Expansion | Mini PCIe | Support 1 mini PCIE channel (WIFI / Bluetooth for optional) |
| Cooling | Fanless design without noise | |
| Power Supply | Input | AC 110V ~ 240V |
| Output | DC 12V 4A power supply | |
| Reliability | Operating Temp. | 0℃~45℃ |
| Storage Temp. | -20℃~70℃ | |
| Relative Humidity | 5%-95%, no condensing | |
| Vibration | 0.5g rms/5-500HZ/random/operating | |
| Operate System | Support Win 7/8/10, Linux, Pfsense, Mikrotik, iKuai, WayOS, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos etc. | |
Our service:
1.We can provideOEM/ODMservices . Can put your Logo if order quantity more than 50 pcs.
2.We can sell one sample for your test .
3.High-quality product and competitive price.
4.1 years Warranty
Shipping
Support DHL / UPS / FEDEX / air shipping deliver time 4 to 9 business days
Support Sea shipping for Batch order deliver time 25 to 50 days
