| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | EC-6732D-J64 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, |
| Supply Ability: | 1000 units per Month |
| CPU: | Elkhart Lake J6412/J6413 | RAM: | Supports Single Channel SO-DIMM, DDR4 3200MHz, Max16GB |
|---|---|---|---|
| Ethernet: | 2*Gigabit LAN | Display: | LVDS/eDP+DP+HDMI |
| COM: | 6*COM | Power: | DC 12V Power Supply |
| USB: | 3 * USB3.2 Gen1 (5Gbps), 7 * USB2.0 | Size: | 156X102mm |

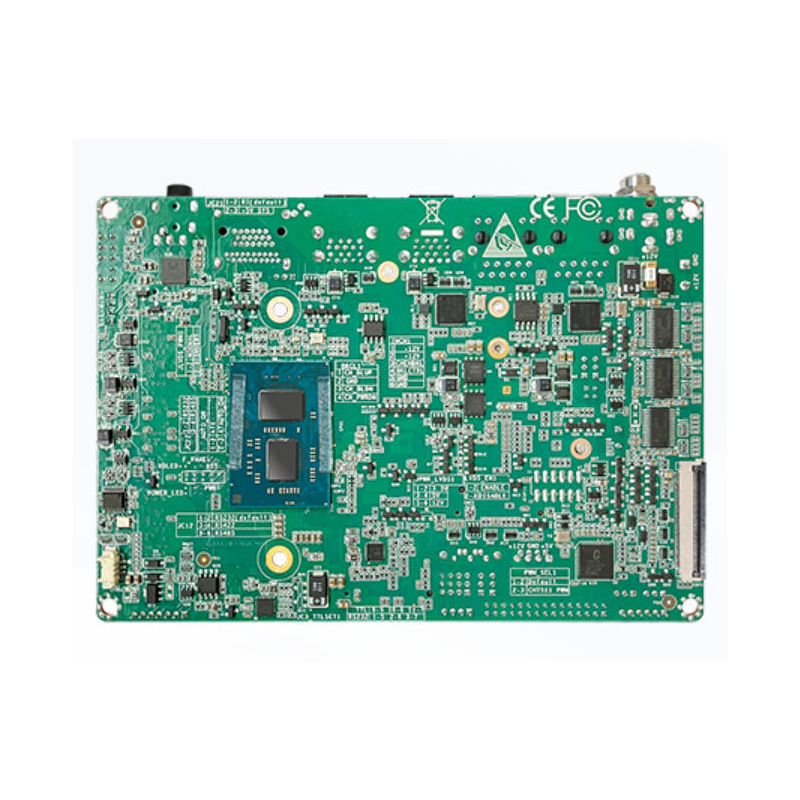

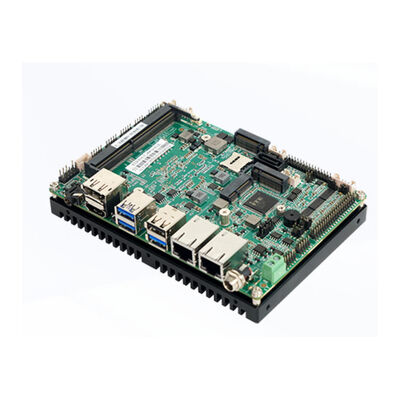

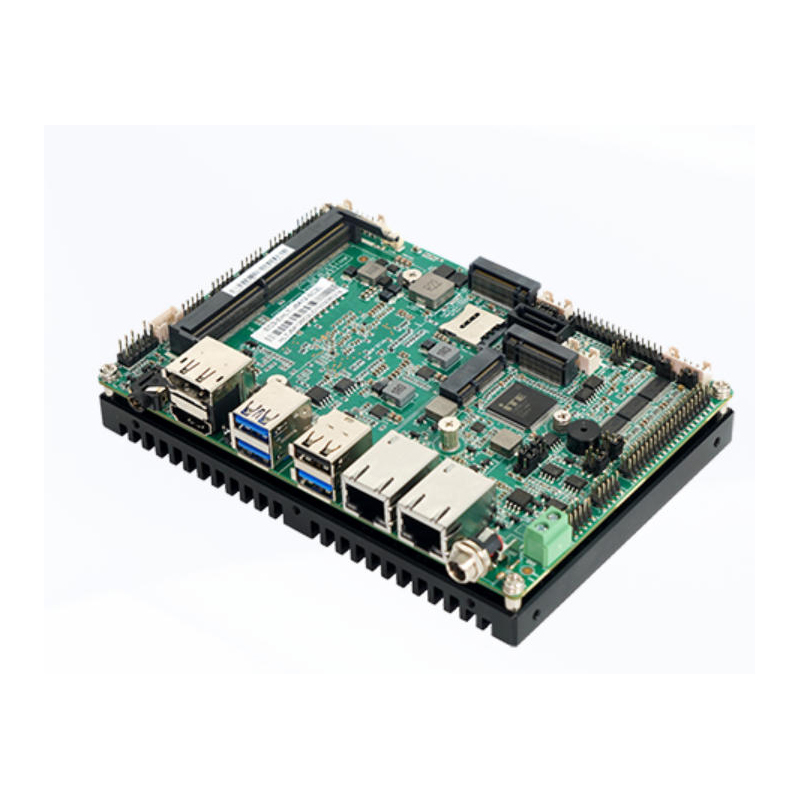

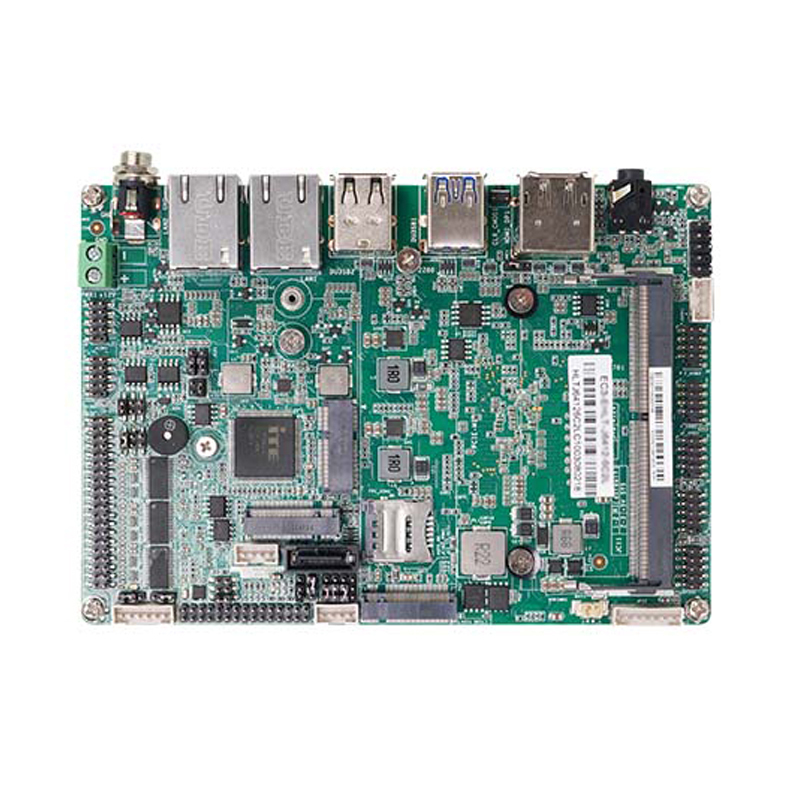

Intel® Elkhart Lake J6412/J6413 3.5 inch Industrial pc motherboard 6 COM 2LAN mainboards
Support for Intel ® Elkhart Lake J6412/J6413 Processor
Supports single channel SO-DIMM, DDR4 3200MHz, Max16GB,
Supports LVDS/EDP+HDMI+DP display output, three displays synchronous and asynchronous
On board 2 * Intel I226-V (transmission rate 2.5Gb)
Supports 3 * USB3.2 Gen1 (5Gbps), 7 * USB2.0
1 * M.2 M Key, 1 * SATA Port
1 * M.2 A Key, supporting WiFi/Bluetooth module expansion;
1 * M.2 B Key, supporting 4G/5G module expansion
Size 156X102mm
Specifications
| CPU | Intel® Elkhart Lake J6412/J6413 Processor |
| Chipset | Intel® SOC |
| Display chip | Intel® Core graphics card |
| Display output | LVDS/EDP+HDMI+DP |
| Multi display support | Three display synchronous asynchronous |
| USB | 3*USB3.2 Gen2 (10Gbps), 7*USB2.0 |
| Memory | 1*SO-DIMM DDR4 3200MHz Max32GB |
| sound effects | On board ALC269 audio decoding controller; |
| Integrated power amplifier (2.2W@4 Ω MAX) | |
| Network card | On board 2*Intel I226-V (transmission rate 2.5Gb) |
| storage | 1*SATA Port; 1*M.2 M Key |
| expansion slot | 1*M.2 A Key, supporting WiFi/Bluetooth module expansion; |
| 1*M.2 B Key, supporting 4G/5G module expansion | |

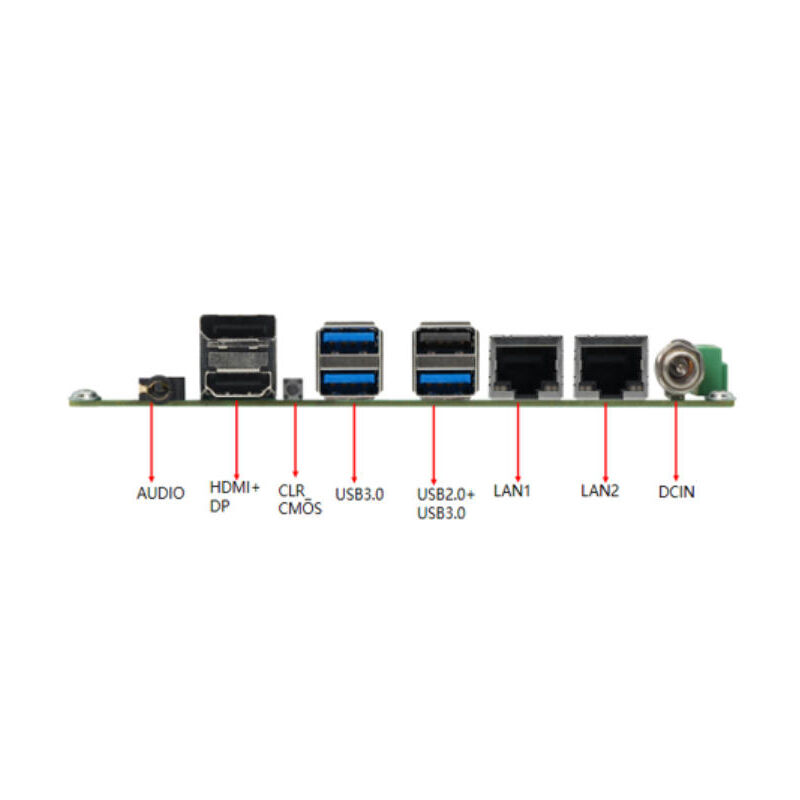

| Post I/O interface | 1*DC_IN port |
| 1*LAN2 port | |
| 1*LAN1 port | |
| 1*USB3.0+1*USB2.0 double seater port | |
| 2*USB3.2 Gen1 (5Gbps) port | |
| 1*HDMI+1*DP port | |
| 1*AUDIO interface | |
| I/O interface | 1*F_AUDIO pin |
| 1*Speaker pin | |
| 3*F_USB2.0 pin (expandable 6*USB2.0) | |
| 1*F_PANEL pin | |
| 1*GPIO pin | |
| 1*PS2 pin | |
| 1*BKCL pin | |
| 1*LVDS pin | |
| 1*INVERT socket | |
| 1*SATA socket | |
| 1*SATA_PWR socket | |
| 1*EDP socket | |
| 6*COM pin | |
| 1 * AT_ IN socket | |
| I/O chip | IT8786E-I |
| BIOS | AMI BIOS |
| power supply | DC/2PIN AT 12V power supply |
| Cooling System | Equipped with No Fan heat sink |
| Environment | Working temperature: 0-60 ℃; Storage: -20 ℃~75 ℃ 0%~95% relative humidity, non condensing |
| Size | 156X102mm |
