| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | EC-P6622DW-7TH |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Intel® Kaby Lake I7-7500U Dual Cores 4 Threads 2.7GHz Processor | RAM: | Integrated 2GB/4GB/8G DDR4 |
|---|---|---|---|
| Display: | LVDS + VGA, LVDS+HDMI, HDMI+VGA, LVDS+VGA+HDMI | Ethernet: | 2*Gigabit LAN |
| COM: | 6*COM | Power: | Wide Voltage 8-36V Input |
| Size: | 154.8 X 117.4 Mm | ||
| Highlight: | I7-7500U 3.5" Motherboard,Industrial 3.5" Motherboard,36V Industrial Computer Motherboard |
||

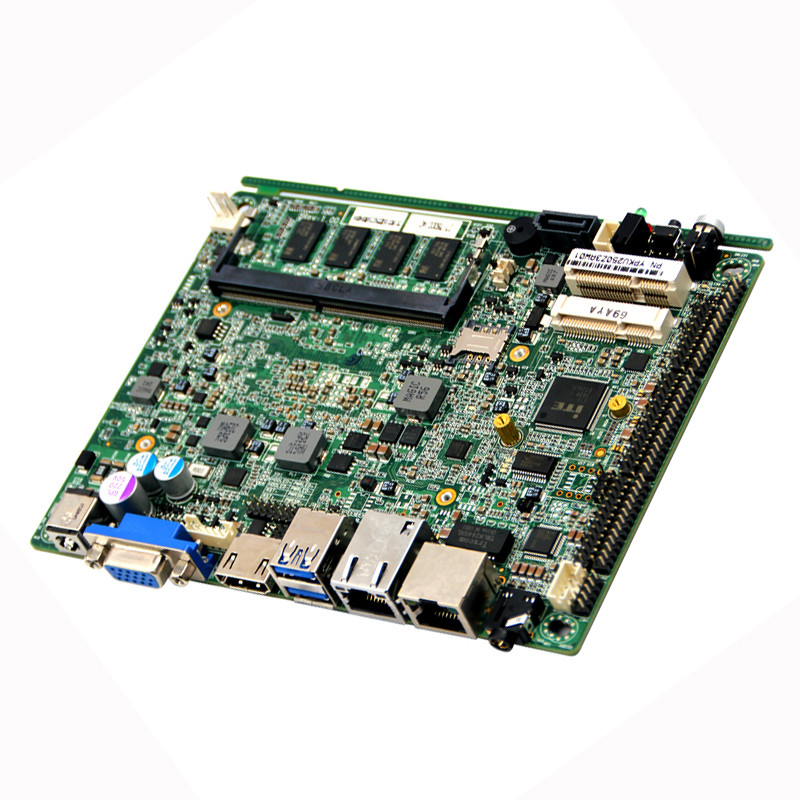

Kaby Lake i7-7500U 3.5" Industrial computer motherboard 6 COM 2 LAN integrated DDR4 Wide voltage 8-36V input wide
Notice:
When you inquiry , you can choose the following Model
EC-P6622DW-7TH-3865U Integrated Kaby Lake-U Intel® Celeron® Processor 3865U dual cores 2 threads 1.8GHz Processor
EC-P6622DW-7TH-3965U Integrated Kaby Lake-U Intel® Celeron® Processor 3865U dual cores 2 threads 2.2GHz Processor
EC-P6622DW-7TH-I3 Integrated Kaby Lake-U i3-7100U dual cores 4 threads 2.4GHz Processor
EC-P6622DW-7TH-I5 Integrated Kaby Lake-U i5-7200U dual cores 4 threads 2.5~3.1GHz Processor
EC-P6622DW-7TH-I7 Integrated Kaby Lake-U i7-7500U dual cores 4 threads 2.7~3.5GHz Processor
Kaby Lake i7-7500U Industrial computer motherboard 3.5 inch 6 COM dual gigabit LAN Mainboard integrated 4GB DDR4 Wide voltage 8-36V input
Key features
Integrated Intel® Kaby Lake i7-7500U dual cores 4 threads 2.7GHz Processor
Single channel DDR4 2133Mhz up to 16GB
Integration 2GB/4GB/8G DDR4
Integrated Intel® HD Graphics 620
Support LVDS + VGA,LVDS+HDMI,HDMI+VGA Synchronous or asynchronous display
Support LVDS VGA HDMI three-screen synchronous or asynchronous display
6*COM
2*Gigabit LAN
2*USB3.0
6*USB2.0
1* SATA3.0
Onboard SSD 16/32/64/128G optional
1* Mini-PCIe M-SATA Scoket
Onboard Realtek HD ALC662
Wide voltage 8-36V input
Size: 154.8 x 117.4 mm
Specifications
| Processor system | CPU | Integrated Intel® Kaby Lake i7-7500U dual cores 4 threads 2.7GHz Processor |
| CPU package | BGA | |
| chipset | Intel® Kaby lake-U series SOC | |
| BIOS | EFI BIOS | |
| internal storage | Technical architecture | single channel DDR4 2133Mhz; |
| memory | integration 2GB/4GB/8G DDR4 | |
| slot | Add 1 slot, up to 16GB of memory | |
| video frequency | graphics controller | Intel HD Graphics 620 |
| Dual LVDS and EDP | Support dual channel 24 bit output, maximum resolution 1920 x 1200 EDP maximum resolution support 4096U 2304 (only one option) | |
| VGA | VGA Support maximum resolution 2048x1536 | |
| HDMI | Maximum resolution support(HDMI1.4)4096*2304@30HZ Support for 4K display | |
| Dual display support | LVDS + VGA,LVDS+HDMI,HDMI+VGA Synchronous or asynchronous display | |
| Three display | Support LVDS VGA HDMI three-screen synchronous or asynchronous display | |
| I/Orear panel | port | 1*VGA,1*HDMI,2*LAN,2*USB3.0/1*MIC-OUT/LINE-OUT |
| network | controller | 1*Intel I211AT and 1*Intel I219VGigabit Ethernet(When the I / O interface is 4 USB, there's only one Intel I211AT card.) |
| Audio frequency | controller | HD ALC662 audio decoding (left and right channel + microphone) |
| Super I/O | controller | ITE8786E |
| Hardware monitoring | Watchdog timer | 0 - 255 seconds to provide watchdog routines |
| Cooler | Aluminum with fan radiator (support automatic and manual fan speed adjustment) | |
| Input / output interface | USB | 2*USB3.0 is compatible with USB2.0 / 1.1 / 6*USB2.0, with maximum support of 5V / 1.5A |
| COM | 5 RS-232, 1 RS422 / 485 optional RS485 supports automatic flow control | |
| PS/2 | 1*PS/2 Pin interface | |
| touch screen | Support for touch-screen 4wire 5wire 8 wire8 (optional) | |
| GPIO | 8-bit, providing routines, freely defined input / output 3.3V @ 24mA level | |
| Extended bus | Mini-PCle | 2 Mini-PCIe slots supporting PCIe and USB devices |
| Storage | SATA | 1 standard SATAIII interface with maximum transmission rate of 6GB / s |
| Onboard SSD | Onboard SSD 16/32/64/128G optional | |
| M-SATA | 1 Mini-PCIe M-SATA Scoket.Supports SANDISK protocol, maximum transfer rate 6gb/s | |
| Power Supply | Power Type | Wide voltage 8-36V input |
| Power consumption | 35W | |
| working temperature | -20℃ ~ +60℃ | |
| storage temperature | -40℃ ~ +85℃ | |
| Working humidity | 0% ~ 90% relative humidity, no condensation | |
| Storage humidity | 0% ~ 90% relative humidity, no condensation | |
| size | 154.8 x 117.4 mm | |
