| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | EC-P6422D-GN |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Gemini Lake J4105 / J4125 /J5005 / N4100 / N5000 | RAM: | Integrated 4GB/8G DDR4 |
|---|---|---|---|
| Ethernet: | 2* Gigabit LAN | Display: | Support LVDS Or EDP+VGA+HDMI |
| COM: | 6*COM | Size: | 154.8 X 117.4 Mm |
| Power: | DC Wide Voltage 9-36V | ||
| Highlight: | J4125 3.5 And 4 Inch Motherboard,Fanless 3.5 And 4 Inch Motherboard |
||

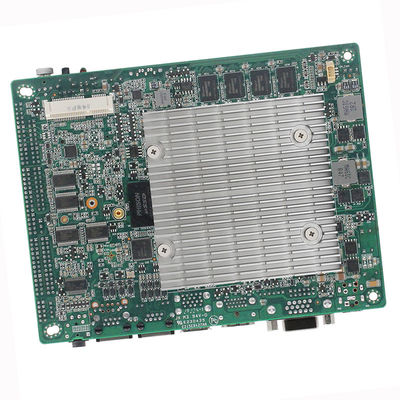

Gemini Lake J4105 J4125 quad cores 6 COM 2 LAN Fanless industrial pc motherboard onboard DDR4 4GB 9~36V DC power
Notice :
When you inquiry , you can choose one of the following:
EC-P6422D-GN-J4105 Integrated Celeron® Gemini Lake J4105 quad core 4 threads 1.5~2.5Ghz processor
EC-P6422D-GN-J4125 Integrated Celeron® Gemini Lake J4125 quad core 4 threads 2.0~2.7Ghz processor
EC-P6422D-GN-J5005 Integrated Intel® Pentium® Silver Processor Gemini Lake J5005 quad core 4 threads 1.5~2.8Ghz processor
EC-P6422D-GN-N4100 Integrated Celeron® Gemini Lake N4100 quad core 4 threads 1.1~2.4Ghz processor
EC-P6422D-GN-N5000 Integrated Intel® Pentium® Silver Processor Gemini Lake N5000 quad core 4 threads 1.1~2.7Ghz processor

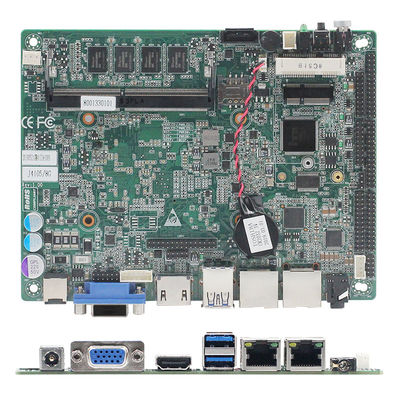

Gemini Lake J4105 J4125 quad cores 6 COM 2 LAN Fanless industrial pc motherboard onboard DDR4 4GB 9~36V DC power
Key features
Integrated Celeron® Gemini Lake J4105 quad core 4 threads 1.5Ghz processor
Integrated 4GB/8G DDR4
Integrated Intel® UHD Graphics 600
Support LVDS or eDP+VGA+HDMI, sync or asynchronous three display
1*VGA, 1*HDMI
6*COM, 2*LAN, 2*USB3.0, 4*USB2.0,
1*SATA3.0
1*mSATA socket
Onboard SSD 16/32/64/128G
Power supply: DC Wide Voltage 9-36V
Size: 154.8 x 117.4 mm
Specifications
| Processor system | CPU |
Integrated Intel Gemini Lake single chipset CPU Quad core J4105 / J4125 / J5005 / N4100 / N5000 for optional |
| CPU package | BGA | |
| Chipset | Intel Gemini Lake Serial SOC | |
| BIOS | EFI BIOS | |
| Memory | Technology framework | Single channel DDR4 2133Mhz; |
| Capacity | Integrated 4GB/8G DDR4 | |
| Socket | One socket can add,MAX expansion support 8GB ram | |
|
Video
|
Graphic controller | Intel HD Graphics 620(I3-7100U ghraphics);the model of graphics is related to the CPU type |
| Dual LVDS or EDP | Support dual channel 24bits output,MAX resolution:1920 x 1200 EDPMAX resolutionsupports:4096*2304(optional) | |
| VGA | VGA suppoprt MAX resolution: 2048x1536 | |
| HDMI | MAX resolution support(HDMI1.4)4096*2304@30HZ support 4K display | |
| Dual display | LVDS + VGA,LVDS+HDMI,HDMI+VGA, sync or asynchronous three display | |
| Three display | Support LVDS+VGA+HDMI, sync or asynchronous three display | |
| I/O rear panel | ports | 1*VGA,1*HDMI,2*LAN,2*USB3.0/1*MIC-OUT/LINE-OUT |
| Internet | Controller | 2*Intel I211AT(whenI/O interface is 4*/USB,Only 1 Intel I211AT NIC) |
| Audio | Controller | Raychem HD ALC662 audio decoding (left and right channel + microphone) |
| Super I/O | Controller | ITE8786E |
| Hardware monitoring | Watchdog timer | 0-255 seconds, providing a watchdog routine |
| Cooler | Aluminum fan heater (supports automatic and manual fan speed adjustment) | |
|
Input/output interface
|
USB | 2*USB3.0 compatible with USB2.0 / 1.1, 4*USB2.0, maximum support +5V/1.5A |
| COM | 5 RS-232, 1 RS422/485 optional, RS485 supports automatic flow control | |
| PS/2 | 1*PS/2 pin connector | |
| Touch screen | Support Touch Panel(4wire 5wire 8wire) | |
| GPIO | 8bit,sample code, Free defination input or output ,3.3V@24mA | |
| Expansion bus | Mini-PCle | 2 Mini-PCIe slots Support PCIe and USB devices |
| NGFF | 1*NGFF interface(KEY E) | |
| storage | SATA | 1 standard SATAIII interface with a maximum transfer rate of 6Gb/s |
| Onboard SSD | Onboard SSD 16/32/64/128G (and MSATA two) | |
| M-SATA | 1 Mini-PCIe M-SATA Scoket, supporting SANDISK protocol, maximum transfer rate of 6gb/s (and one onboard SSD) | |
| power supply | Power Type | Wide Voltage 9-36V |
| working environment | Operating temperature | -20℃ ~ +60℃ |
| storage temperature | -40℃ ~ +85℃ | |
| Working humidity | 0% ~ 90% relative humidity, no condensation | |
| Storage humidity | 0% ~ 90% relative humidity, no condensation | |
| System Support | Windows 10 Linux | |
| physical dimension | size | 154.8 x 117.4 mm |
| weight | 0.5KG |
