| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | EC-P6442DWEA-WSK |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Intel® Whiskey Lake 8th I3 I5 I7 | RAM: | Integrated 4GB/8G DDR4 |
|---|---|---|---|
| Ethernet: | 2*Gigabit LAN | Display: | Support LVDS/EDP+DP+HDMI, 1* DP (4K) |
| COM: | 6*COM | Power: | Wide Voltage 9-36V Input |
| USB: | 4*USB3.0, 4*USB2.0 | Size: | 154.8 X 117.4 Mm |
| Highlight: | I7-8565U Industrial PC Motherboards,Industrial PC Motherboards 6Com,Industrial 4GB Ram Motherboard |
||

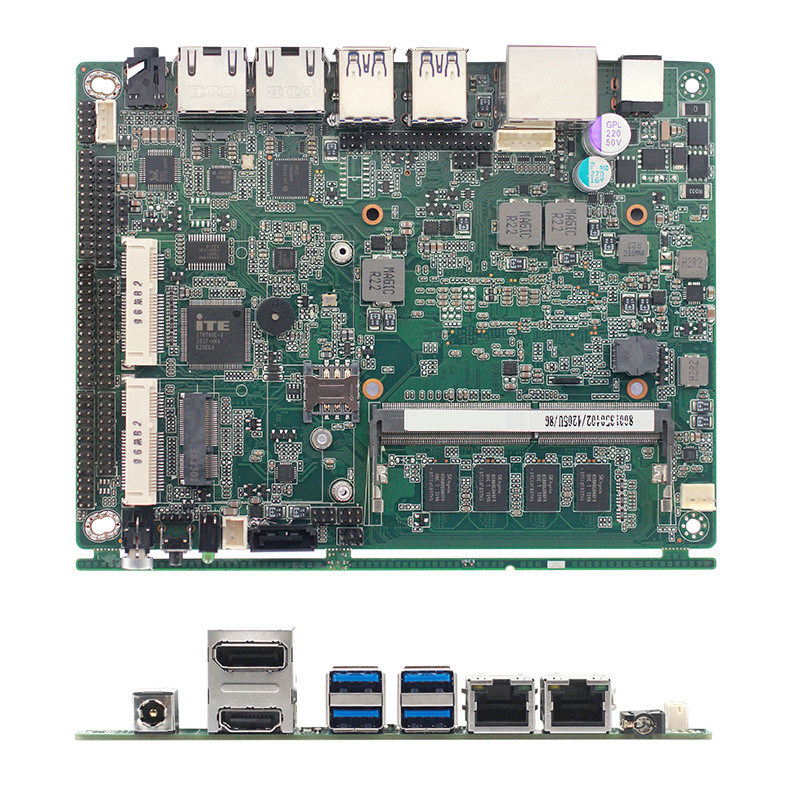

Whiskey Lake i7-8565U 6 com industrial pc motherboard onboard 4GB ram 4K display Wide voltage
Notice:
When you inquiry , you can choose the following Model
EC-P6442DWEA-WSK-I3 Integrated Intel® Whiskey Lake i3-8145U dual cores 4 threads 2.1~3.9GHz Processor
EC-P6442DWEA-WSK-I5 Integrated Intel® Whiskey Lake i5-8265U quad cores 8 threads1.6~3.9GHz Processor
EC-P6442DWEA-WSK-I7 Integrated Intel® Whiskey Lake i7-8565U quad cores 8 threads1.8~4.6GHz Processor
Whiskey Lake i7-8565U 6 com 2 lan industrial pc motherboard onboard 4gb ram DP 4K display Wide voltage 9-36V power supply
Key features
Integrated Intel® Whiskey Lake i7-8565U quad cores 8 threads1.8~4.6GHz Processor
Dual channel DDR4 2133Mhz up to 24GB
Integration 4GB/8G DDR4
Integrated Intel® UHD Graphics 620
Support LVDS/EDP+DP+HDMI synchronous or asynchronous display
1* DP 1.2 interface support 4096*2304@60HZ 4K display
6*COM
2*Gigabit LAN
4*USB3.0
4*USB2.0
1* M.2
1* SATA3.0
1* Mini-PCIe M-SATA Scoket
Onboard 32G / 64G / 128G (choose one with MSATA)
Onboard ALC662-VD
Wide voltage 9-36V input
Size: 154.8 x 117.4 mm
Specifications
| Processor system | CPU |
Integrated Intel® Whiskey Lake i7-8565U quad cores 8 threads1.8GHz Processor, Max Turbo Frequency 4.6Ghz |
| CPU package | BGA | |
| chipset | Intel® Whiskey lake-U series SOC | |
| BIOS | EFI BIOS | |
| RAM | Technology Architecture | Dual channel DDR4 2133Mhz; maximum capacity supports 24G (onboard 8G + extended 16G) |
| Onboard memory particles | 4G / 8G DDR4 onboard memory optional | |
| Slot | 1 * DDR4 SODIMM 260 Socket | |
| video | Graphics controller | Intel® UHD Graphics 620 (graphics card for i7-8565U); the graphics card model is related to the CPU |
| HDMI | One HDMI1.4 interface, maximum resolution support (HDMI1.4) 4096 * 22160 @ 30HZ support 4K display | |
| DP ++ | 1 DP 1.2 interface, support DP ++, maximum resolution support (HDMI1.4) 4096 * 2304 @ 60HZ support 4K display | |
| LVDS / EDP | 1 LVDS maximum support 1920 * 1080 or 1 EDP1.2 maximum support 4096x2160 @ 60 Hz 24bpp (choose one) | |
| Dual display support | LVDS / EDP + DP, LVDS / EDP + HDMI, HDMI + DP synchronous or asynchronous display | |
| Triple displays | LVDS / EDP + DP + HDMI synchronous or asynchronous display | |
| I / O backplane | port | 1 * HDMI 1 * DP ++ 4 * USB3.1 (GEN2) 2 * LAN 1 * MIC + LINE2 OUT 1 * DC |
| The internet | Controller | 2*Gigabit LAN (1*Intel I211AT, one Intel I219-LM) |
| Audio | ALC662-VD | 1 * MIC1 1 * LINE2 OUT 1 * MIC2 1 * FRONT OUT 1 * SPDIF 1 * AMPLIFIER OUT (TPA3113D2,6W) |
| Super I / O | Controller | IT8786E-I / EX / GX / HX |
| Hardware monitoring | Watchdog timer | 0-255 seconds, provide watchdog routine |
| Cooler | Aluminum radiator with fan | |
| Input / output interface | USB | 4 * USB3.1 (USB3.1 GEN2 is backward compatible), when using Celeron Pentium processor, USB can only reach GEN1 4 USB2.0 |
| Serial port | COM1, 2, 4 can be selected as RS232 or RS485 by jumper cap and BIOS, COM3 can be selected as RS422 / RS485 by BIOS, COM5, COM6 are RS232 | |
| GPIO | 8 bits, provide routines, freely define input / output, 3.3V@24mA level | |
| Expansion bus | Mini-PCle | 1 Mini-PCIe slot, support PCIE signal and USB signal device |
| storage | M.2 | M.2 KEY E: 2230 (WIFI) interface |
| SATA | 1* standard SATAIII interface, maximum transfer rate 6Gb / s | |
| M-SATA | 1 Mini-PCIe M-SATA Scoket, support SANDISK protocol, maximum transfer rate 6gb / s (choose with onboard SSD) | |
| Onboard SSD | Onboard 32G / 64G / 128G (choose one with MSATA) | |
| Power Supply | Power type | Wide voltage 9-36V power supply |
| Working Environment | Working temperature | -20℃ ~ +60℃ |
| Storge temperature | -40℃ ~ +85℃ | |
| Working humidity | 0% ~ 90% non-condensing | |
| Storge humidity | 0% ~ 90% non-condensing | |
| Support sysytem | Windows7 Windows 10 Linux | |
| Size | Size | 154.8 x 117.4 mm |
| Weight | 0.5KG |
About RMA
1--Warranty 1 year
2--If buyer confirm the item can`t work well due to the non-artificial factors,buyer can return it to our company. Buyers should keep it with proper packaging.
3--Buyers are responsible for return to china freight cost .
4--Seller will repair item and ship the repaired one to buyer,seller will pay the shipping cost from China to Buyer address.
5--Please contact us firstly before returning defective goods by email.
