| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | EC-Z6822-14TH |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, |
| Supply Ability: | 1000 units per Month |
| CPU: | 14ᵗʰ Ultra Processor (125U/125H) | RAM: | 1*SO-DIMM DDR5 5600MHz Max 48GB |
|---|---|---|---|
| Ethernet: | 2*Gigabit LAN | Display: | LVDS/eDP+DP+HDMI |
| COM: | 6*COM | Power: | Single Input DC 9~36V |
| USB: | 8*USB 2.0, 2*USB3.2 | Size: | 146 X 102 Mm |

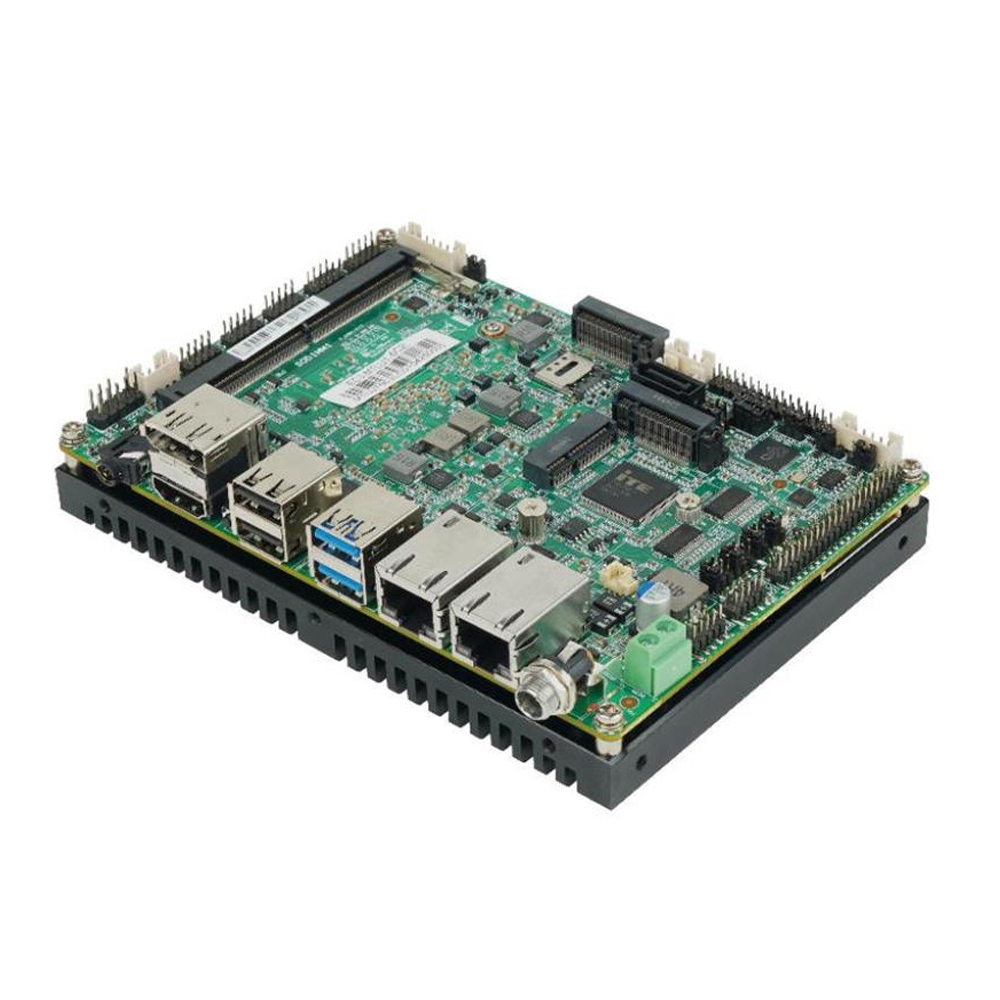

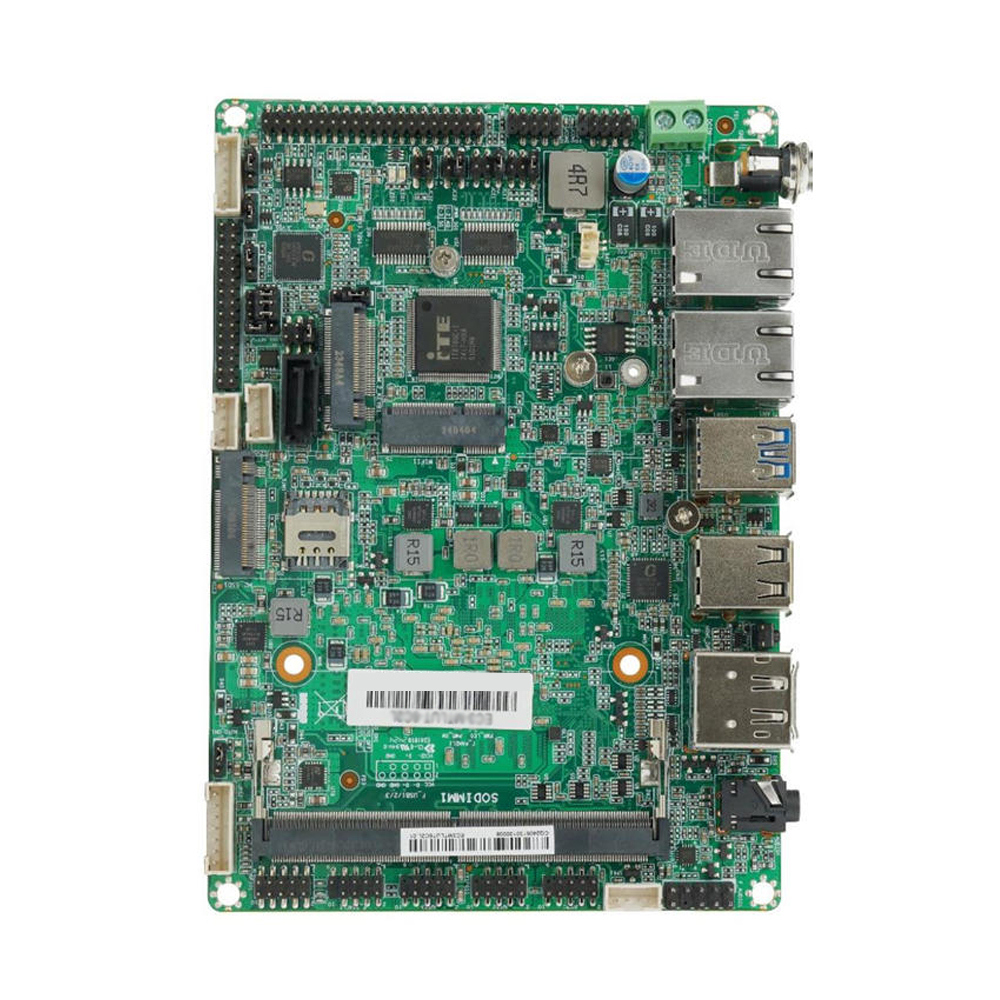

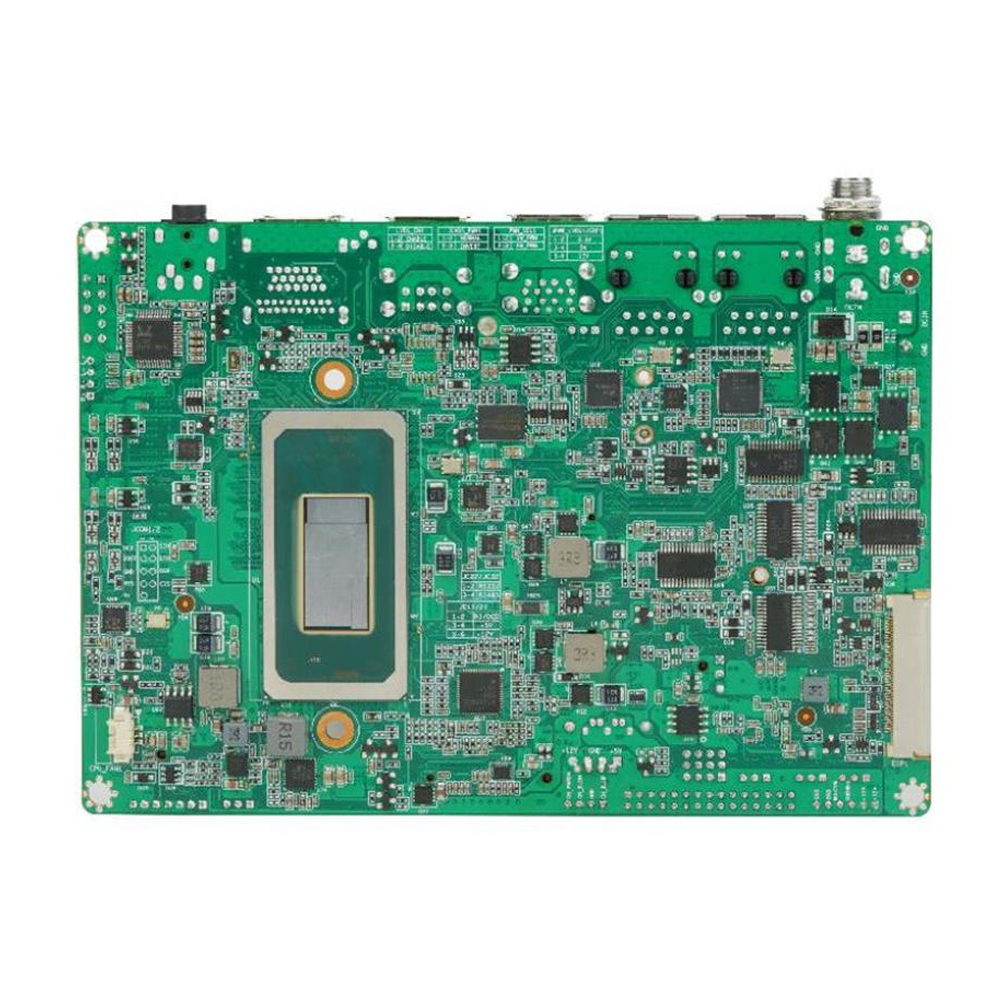

3.5 inch mainboard 14ᵗʰ Ultra Processor 125U/125H Industrial pc motherboard 6 COM 2LAN HDMI2.1 support 8K@60Hz
Integrated Intel® 14ᵗʰ Ultra Processor (125U/125H)
Support LVDS/eDP+DP+HDMI (HDMI2.1 support 8K@60Hz)
2*USB3.2 Gen2 (10Gbps) + 8USB2.0
1*SO-DIMM DDR5 5600MHz Max 48GB
On‑board Dual LAN (1 × Intel I219LM + i226‑V )
1 × M.2 M‑Key slot, auto‑adaptive for SATA / PCIe x4;
1 × SATA 3.0 interface
1 × M.2 B‑Key slot for 4G / 5G module expansion;
1 × M.2 E‑Key slot for Wi‑Fi 6 / Bluetooth, CNVi‑capable
1*DP+1*HDMI
6*COM Header
Fanless design
Supports DC 9~36 V wide range power input.
Window10/Window11/Linux
Dimension:146 x 102 mm
Specifications
| Model | EC-Z6822-14TH |
| Processor | Integrated Intel® 14ᵗʰ Ultra Processor (125U/125H) |
| Chipsets | Intel® SOC |
| Display |
Intel® Graphics LVDS/eDP+DP+HDMI (HDMI2.1 support 8K@60Hz) |
| USB | 2*USB3.2 Gen2 (10Gbps) + 8USB2.0 |
| RAM | 1*SO-DIMM DDR5 5600MHz Max 48GB |
| Audio | On‑board ALC897 audio codec; Discrete power amplifier NS4251, 3 W @ 4 Ω |
| Network | On‑board 1 × Intel I219LM + i226‑V (compatible with i226‑LM) LAN controller (vPro supported) |
| Storage |
1 × M.2 M‑Key slot, auto‑adaptive for SATA / PCIe x4; 1 × SATA 3.0 interface |
| Expansion slots |
1 × M.2 B‑Key slot for 4G / 5G module expansion; 1 × M.2 E‑Key slot for Wi‑Fi 6 / Bluetooth, CNVi‑capable |
| Rear I/O |
1*AUDIO 1*DP+1*HDMI 1 × REC button (supports one‑key system restore and CMOS clear function) 2*USB2.0 2*USB3.2 1*LAN1 1*LAN2 1*DC_IN |
| On-board Headers |
1*F_AUDIO Header 1*SPEAKER Header 3*USB Header (Can expande 6*USB2.0) 1*F_PANEL 1 × 4-channel GPIO header 1*JPS2 Header 1*SATA 1*SATA_PWR Header 1*BKCL Header 1*LVDS Header 1*INVCN Header 6*COM Header 1*CPU_FAN Header 1*ATX Phoenix terminal |
| Cooling |
Default: Fan‑less heatsink, P/N ST00000140; Optional: Heatsink with fan, P/N ST00000229 |
| I/O Chipset | IT8786E |
| BIOS | AMI BIOS |
| Power Supply | Supports DC 9‑36 V wide‑range power input. |
| Operating |
Operating temperature: 0 °C to 60 °C Storage temperature: −20 °C to 75 °C Relative humidity: 0% to 95%, non‑condensing |
| OS | Window10/Window11/Linux |
| Dimension | 146 x 102 mm |
