| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | NUC-P1422HD-TL-6305 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | 11th Generation Tiger Lake Celeron 6305 | RAM: | 2*DDR4 SO-DIMM Max 64GB |
|---|---|---|---|
| Ethernet: | 2*Gigabit LAN | Display: | Support MINI DP+H-D-M-I |
| COM: | 1*RS232 | Size: | 101 * 101mm |
| Power: | Wide Voltage DC 12-19V Power Supply | ||
| Highlight: | RS232 COM Dual Lan Motherboard,6305 Dual Lan Motherboard |
||

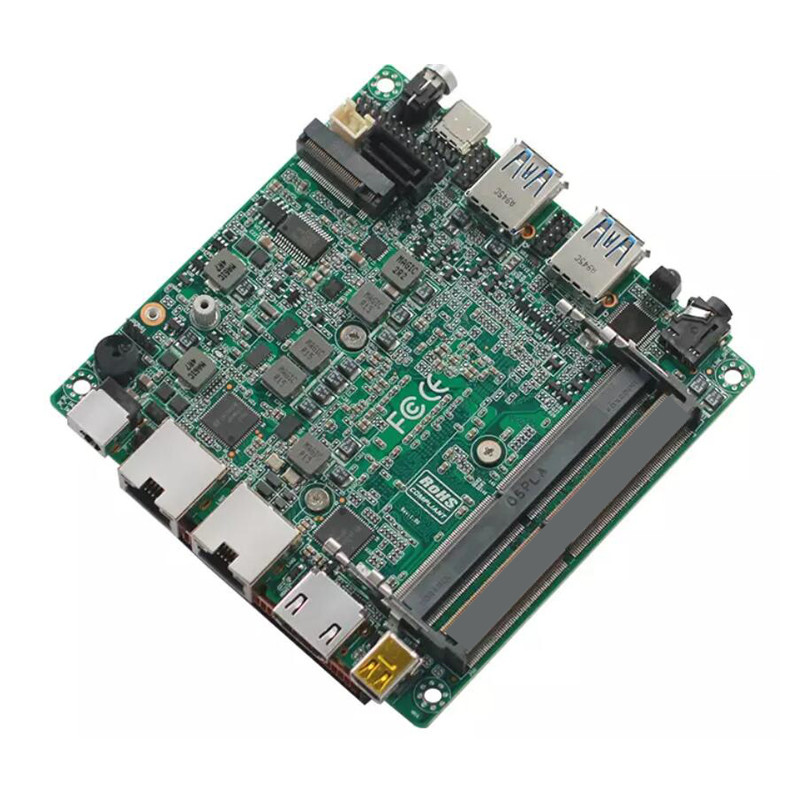

11th Celeron 6305 CPU NUC motherboard dual lan Mini DP 4K display RS232 COM industrial mainboard
Key features
Integrated 11th Generation Tiger Lake Intel® Celeron® Processor 6305 dual cores 2 threads 1.8GHz Processor
2*DDR4 SO-DIMM Ram socket,max support 64GB
Integrated Intel UHD Graphics 620
Support MINI DP+HDMI2.0 Synchronous or asynchronous display
2*LAN
2*USB3.1
4*USB2.0(2*2x5 2mm pin header)
1*RS-232(TTL level can be changed)
1*CIR1(Infrared interface)
Aluminum fan radiator
1*TYPE-C USB3.1 GEN2
1*Mini-PCIe socket,Support PCIe and USB Device
1 standard SATAIII interface, maximum transfer rate 6Gb/s
PCIE X2 NVME or SATA signal 2242 M2 hard disk (choose one of the two)
Wide voltage DC 12-19V power supply
Size: 101*101 mm
Specifications
| Processor | Onboard Intel 11th Tiger Lake-U series processor |
| Ram | 2*DDR4 3200MHz SO-DIMM,Max support 64GB |
| Display | HDMI2.0,4096x2160@60Hz,support 4K display |
| Mini DP,Support max resolution 4096x2304 60HZ(support DP++) | |
| Support Mini DP + H-D-M-I-2.0 Synchronous or asynchronous display | |
| Storage | 1*SATA3,2PIN power 5V |
| 1*M.2 Key-M 2242,NVMe/SATA choose one of two | |

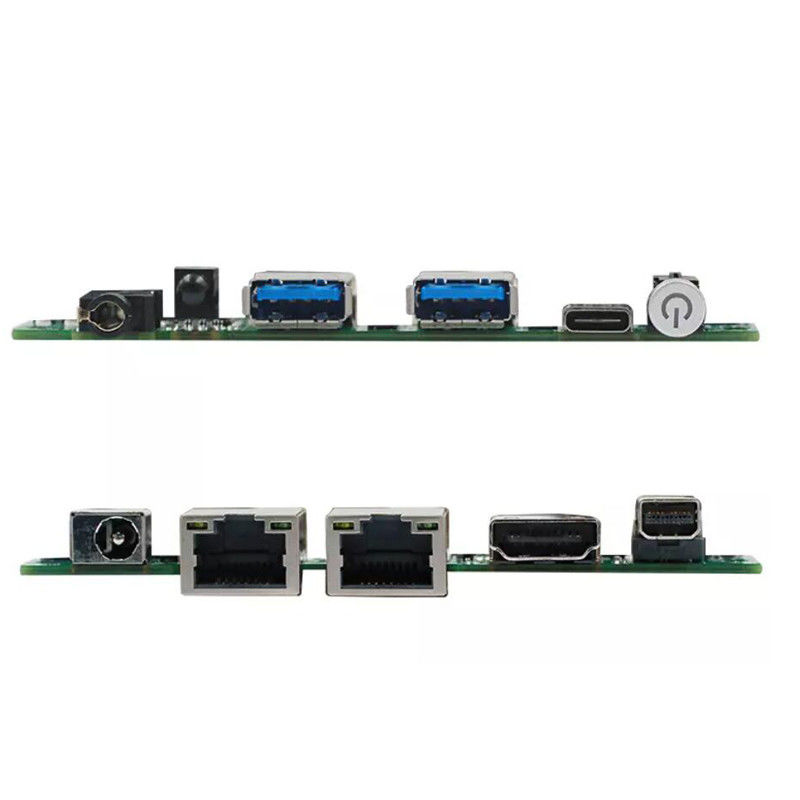

| I/O Panel | 1*HDMI,1*MiniDP |
| 2*RJ45,i211 Lan card | |
| 2*USB3.1 | |
| 1*2-in-1 audio jack | |
| 1*power button with indicator light | |
| 1*DC JACK | |
| Internal interface | 1*MiniPCIe socket,Support PCIe and USB2.0 protocol,WIFI/3G/4G device |
| 1*SATA3.0,2Pin 5V power supply | |
| 2*USB2.0,2x5Pin,space 2.0mm | |
| 1*3Pin CPU Fan | |
| F_Panel,2x5Pin,Space 2.0mm | |
| Power supply | DC12-19V,85W |
| Working Environment | Working temperature: -20℃ ~ +60℃ Working humidity: 0% ~ 90% relative humidity, no condensation |
| Storage temperature: -40℃ ~ +85℃; Storage humidity: 0% ~ 90% relative humidity, non-condensing |
|
| System | Windows10,Windows11,Linux |
| Size | 100x100mm |
| Weight | Without radiator 110g；with radiator 230g |
