| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | NANO-P4512V-BT |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Intel® Bay Trail J1800 / J1900 / E3845 /N2806 | RAM: | 2*DDR4 SO-DIMM Memory Slot, Maximum Support 64GB |
|---|---|---|---|
| Ethernet: | 2*Gigabit LAN | Display: | MINI DP + HDMI2.0 |
| COM: | 1*COM | Power: | DC 12-19V |
| Size: | 101 * 101 Mm | ||
| Highlight: | NUC fanless mini itx motherboard,E3845 fanless mini itx motherboard,NANO fanless itx motherboard |
||
Notice :
When you inquiry , you can choose the following Model :
NANO-P4512V-BT-J1800 Integrated Celeron® Bay Trail J1800 dual core 2 threads 2.41~2.58Ghz processor
NANO-P4512V-BT-J1900 Integrated Celeron® Bay Trail J1900 quad core 4 threads 2.0~2.42 Ghz processor
NANO-P4512V-BT-N2806 Integrated Celeron® Bay Trail N2806 dual core 2 threads 1.6~2.0Ghz processor
NANO-P4512V-BT-E3845 Integrated Atom® Bay Trail E3845 quad core 4 threads 1.91Ghz processor

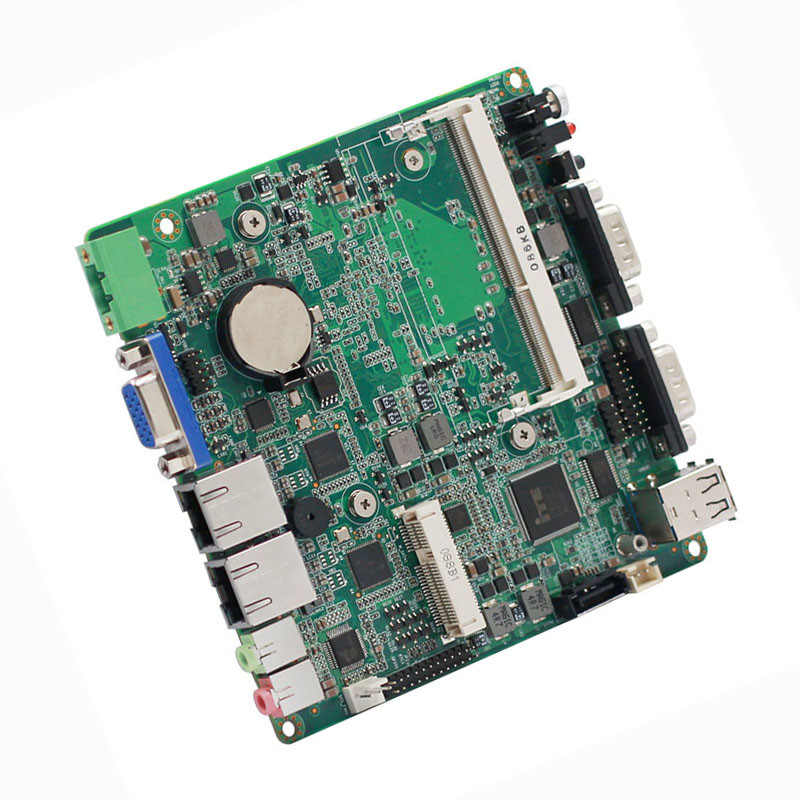

Intel® Bay Trail J1800 / J1900 / E3845 /N2806 fanless NUC motherboard 2 LAN 4 COM industrial NUC mainboard
Key features
Integrated Intel® Bay Trail J1800 / J1900 / E3845 /N2806
Single channel DDR3 1066/1333MHz up to 8G
Intel® HD Graphics
1*VGA
4* RS232 COM,
2 Intel I211AT gigabit network cards
5*USB2.0, 1 * USB3.0
1* standard SATAII
1* Mini-PCIe socket,
Wide voltage DC 12-19V power supply
size 120 * 120 mm
Specifications
| Processor system | CPU |
Integrated Intel® Bay Trail J1800 / J1900 / E3845 /N2806 |
| CPU package | BGA | |
| chipset | Support Baytrail-M/D series processors | |
| BIOS | EFI BIOS | |
| RAM | Technology Architecture | Single channel DDR3 1066/1333MHz |
| Slot | DDR3 SODIMM 204 Socket | |
| video | Graphics controller | Intel HD Graphics |
| VGA | VGA supports a maximum resolution of 1920x1200 | |
| I/O backplane | port |
1*DC 1*VGA 2*LAN 1*MIC-OUT/LINE-OUT 1*USB3.0 1*USB2.0 2*COM |
| The internet | Controller | 2 Intel I211AT gigabit network cards, RJ45 interface |
| Audio | Controller | Realtek HD ALC662 audio decoding (left and right channels + microphone) |
| Hardware monitoring | Watchdog timer | 0-255 seconds, provide watchdog routine |
| Cooler | Aluminum radiator with fan (available without fan) | |
| Input/output interface | USB |
1*USB3.0 compatible with USB2.0 / 1.1 5*USB2.0, maximum support +5V/1A |
| Serial port | 4* RS-232 | |
| GPIO | 8-bit, provide routines, freely define input/output. | |
| storage | SATA | 1 standard SATAII interface, maximum transfer rate 3Gb/s |
| M-SATA | 1 M-SATA Scoket, support SANDISK protocol, maximum transfer rate 3Gb/s | |
| power supply | Power supply type | Single input DC power supply, DC12-19V, +/-5% |
| working environment | Operating temperature | -20℃ ~ +60℃ |
| storage temperature | -40℃ ~ +85℃ | |
| Working humidity | 0% ~ 90% relative humidity, non-condensing | |
| Storage humidity | 0% ~ 90% relative humidity, non-condensing | |
| System Support | J1900 CPU supports Windows7 Windows8.1 Windows10 Linux, | |
| J1800 CPU only supports Windows8.1 Windows10, | ||
| physical dimension | size | 120 x 120 mm |
| weight | 0.5KG |
About RMA
1--Warranty 1 year
2--If buyer confirm the item can`t work well due to the non-artificial factors,buyer can return it to our company. Buyers should keep it with proper packaging.
3--Buyers are responsible for return to china freight cost .
4--Seller will repair item and ship the repaired one to buyer,seller will pay the shipping cost from China to Buyer address.
5--Please contact us firstly before returning defective goods by email.
Shipping
Support DHL / UPS / FEDEX / air shipping deliver time 4 to 9 business days
Support Sea shipping for Batch order deliver time 25 to 50 days
