| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | NANO-P6422VH-GN-J4125 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Intel® Celeron® Gemini Lake J4125 Quad Core 4 Threads 2.0~2.7GHz | RAM: | Single SO-DIMM Socket, MAX Support DDR4 8G |
|---|---|---|---|
| Ethernet: | 2*Gigabit LAN | Display: | HDMI+VGA |
| COM: | 6*COM | Power: | DC 12-19V |
| Size: | 120 * 120 Mm | ||
| Highlight: | NANO itx mainboard,J412 Nano Motherboard,Quad Core Nano Motherboard |
||

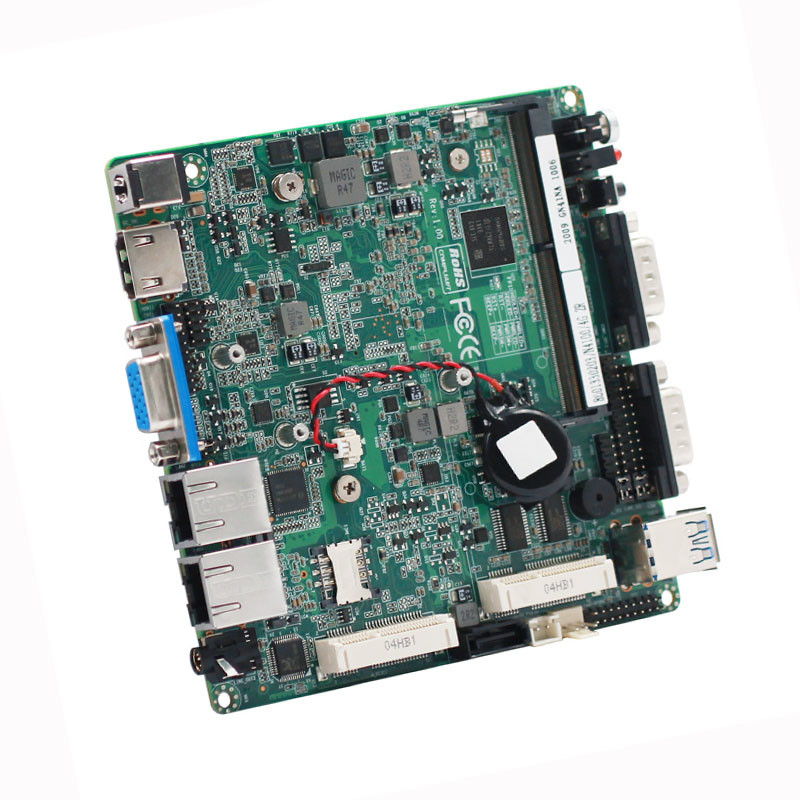

Quad core Intel® J4125 NANO itx mainboard 6 COM 2 LAN industrial motherboard
Key features
Integrated Intel® Celeron® Gemini Lake J4125 quad core 4 threads 2.0~2.7GHz Processor
Single SO-DIMM socket, MAX Support DDR4 8G
Intel® UHD Graphics 600
Support HDMI+VGA sync or asynchronous display
6*COM
2*Gigabit LAN
4*USB2.0, 2*USB3.0
1* standard SATAIII
1* Mini-PCIe socket
Onboard 32/64/128G EMMC storge chipset(optional)
Wide voltage DC 12-19V power supply
Size: 120 * 120 mm
Specifications
| Processor system | CPU |
Integrated Intel® Celeron® Gemini Lake J4125 quad core 4 threads 2.0~2.7GHz Processor
|
| CPU package | BGA | |
| Chipset | Intel Gemini Lake serial SOC | |
| BIOS | EFI BIOS | |
| Memory | Technology framework | Single channel DDR4 2133Mhz |
| Socket | Single SO-DIMM socket,MAX Support DDR4 8G | |
| Video | Graphic controller | Intel UHD Graphics 600(J4005 ghraphics );the model of graphics is related tp the CPU type |
| VGA | VGA suppoprt MAX resolution: 2048x1536 | |
| HDMI | MAX resolution support(HDMI1.4)4096*2304@30HZ support 4K display | |
| Dual display | HDMI+VGA sync or asynchronous display | |
| I/O rear panel | ports |
1*VGA 1*HDMI 2*LAN 2*USB3.0 1*LINE-OUT 2*COM |
| Network | Controller | 2*Intel I211AT |
| Audio | Controller | Raychem HD ALC662 audio decoding (left and right channel + microphone) |
| Controller | Controller | ITE8786E |
| Hardware monitoring | Watchdog timer | 0-255 seconds, providing a watchdog routine |

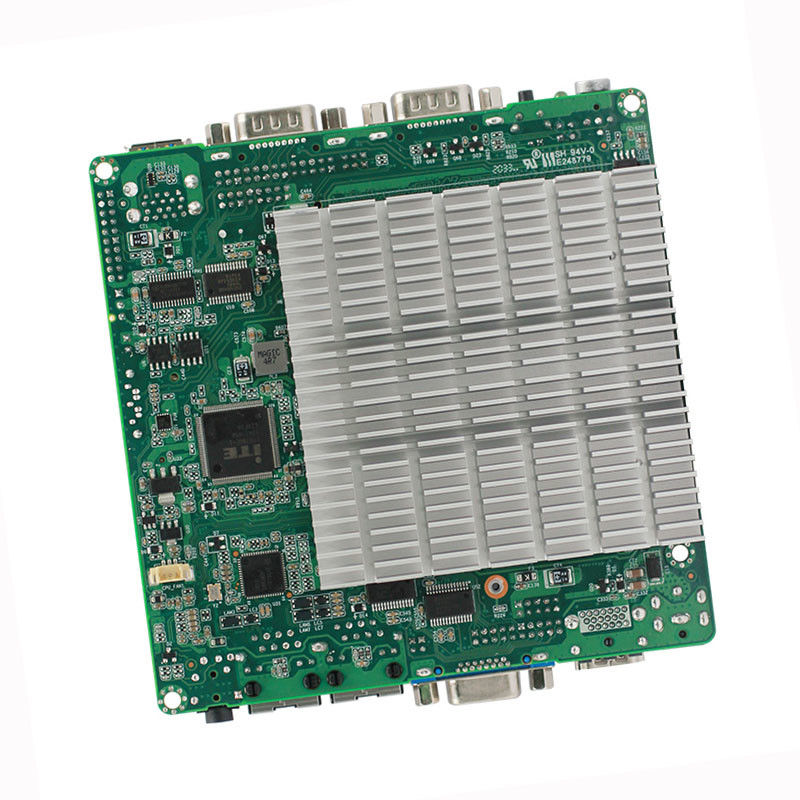

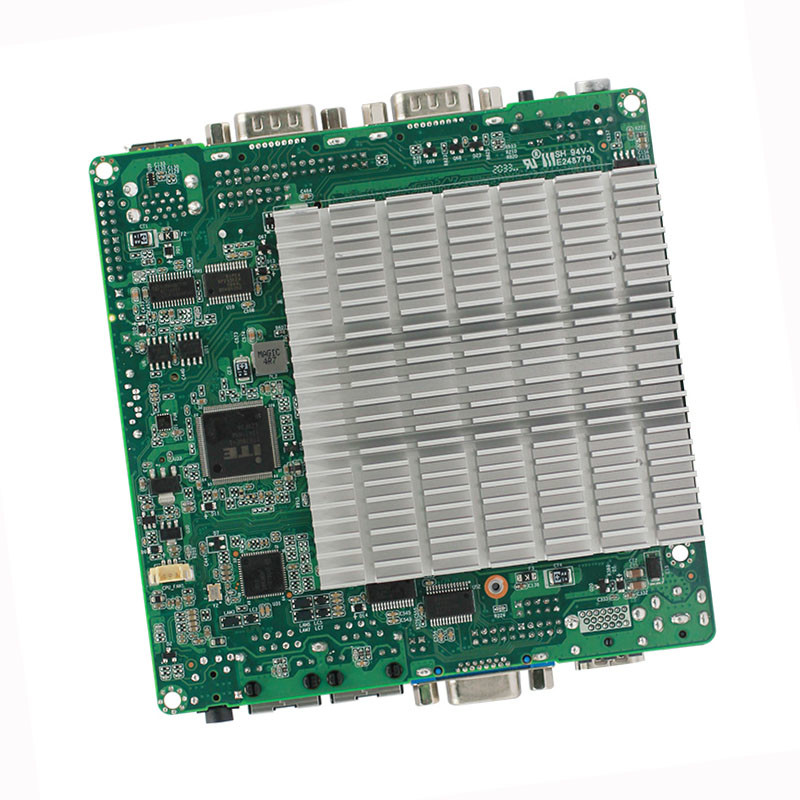

| Cooler | Aluminum fan heater (supports automatic and manual fan speed adjustment) | |
| Input/output interface | USB |
2*USB3.0 compatible with USB2.0 / 1.1 4*USB2.0,MAX Support +5V/1.5A |
| COM | 6*COM(4*RS232, 2*RS232/RS485 optional),RS485 supports automatic flow control | |
| GPIO | 8bit,sample code, Free defination input or output ,3.3V@24mA | |
| Expansion bus | Mini-PCle | 1* Mini-PCIe socket,support PCIe and USB device(5G module or PCIE module optional) |
| Storge | SATA | 1* standard SATAIII interface with a maximum transfer rate of 6Gb/s |
| M-SATA | 1* Mini-PCIe M-SATA Scoket, supporting SANDISK protocol, maximum transfer rate of 6gb/s | |
| EMMC | Onboard 32/64/128G EMMC storge chipset(optional | |
| Power supply | Power Type | Single input dc power supply,DC12-19V |
| working environment | Operating temperature | -20 ℃ ~ + 60 ℃ |
| storage temperature | -40 ℃ ~ + 85 ℃ | |
| Working humidity | 0% ~ 90% relative humidity, no condensation | |
| Storage humidity | 0% ~ 90% relative humidity, no condensation | |
| Dimensions | Size | 120*120mm |
| Weight | 0.5KG |
About RMA
1--Warranty 1 year
2--If buyer confirm the item can`t work well due to the non-artificial factors,buyer can return it to our company. Buyers should keep it with proper packaging.
3--Buyers are responsible for return to china freight cost .
4--Seller will repair item and ship the repaired one to buyer,seller will pay the shipping cost from China to Buyer address.
5--Please contact us firstly before returning defective goods by email.
