| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | FW-PB164-H110 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | LGA1151interface Intel6th And 7th I3-i5-i7/Pentium/Celeron | RAM: | 2*DDR4 SODIMM 2133/2400MHz |
|---|---|---|---|
| Display: | VGA | Ethernet: | 6*Gigabit LAN |
| COM: | 1*RJ45 Com Port | USB: | 2*USB3.0, 2*USB2.0 |
| Size: | 255 X 210 Mm | Power: | DC12-19V |
| Highlight: | H110 Firewall Motherboard,Firewall Motherboard 6 NIC,H110 firewall pc motherboard |
||

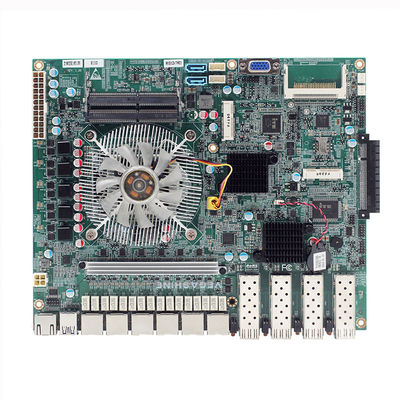

Intel® H110 firewall pc motherboard 6 gigabit NIC 4 SFP Optical port support bypass for Firewall pc network security Mainboard pfsense router
Key features
Support LGA1151interface Intel6th and 7th i3-i5-i7/Pentium/Celeron CPU
H110/H170/Z170 high speed chipset
2*DDR4 SODIMM 2133/2400MHz
1*RJ45 com port
6*Gigabit LAN
4* Optical port
1* RJ45 COM
2*USB3.0, 2*USB2.0
1*VGA
2*Standard SATAIII ports
1*Mini-PCIe M-SATA Scoket
1*CF card slot
Aluminum alloy heat sink with fan
ATX Power supply Size: 255 x 210 mm
Specifications
| PROCESSOR | CPU | Support LGA1151interface Intel6th and 7th i3-i5-i7/Pentium/Celeron CPU |
| CPU Package | LGA1151 | |
| CHIPSET | H110/H170/Z170 high speed chipset (Except H110, other chipsets support RAID) | |
| BIOS | EFI BIOS | |
| Memory | Technology framework | Dual channel DDR4 2133/2400MHz |
| Socket | 2* DDR4 Memory socket | |
| VIDEO | Graphic controller | Intel HD Graphics 610 (G4560 graphics card); graphics card model is related to the CPU |
| VGA | VGA Support for maximum resolution 2048x1536 | |
| I/O panel | Port |
1*RJ45com port 2*USB3.0 6*LAN 4* Optical port(can choose two optical port) |
| Network | CONTROLLER | 6 Intel Gigabit LAN, I211 and I210 (LAN1 and LAN2, LAN3 and LAN4 support two groups of Bypass functions) |
| 4 optical ports (chip I350) can be selected as 2 optical ports | ||
| Super I/O | CONTROLLER | NCT6102D |
| HARDWARE MONITORING | Watchdog timer | 0-255sec, sample code optional |
| Input/output interface | USB |
2*USB3.0 compatible with USB2.0 / 1.1 2*USB2.0, maximum support +5V/1.5 |
| Com port | 2 RS232 serial ports (COM1 is RJ45 interface and pin headers are selected, COM2 is pin header interface) | |
| PS/2 | 1*PS/2 pin connector | |
| EXPANSION BUS | Mini-PCle | 1 Mini-PCIe slot for PCIe and USB devices |
| PCIE | 1*PCIE_8X interface | |
| Storage | SATA | 2* standard SATAIII interfaces with a maximum transfer rate of 6Gb/s |
| M-SATA | 1 *M-SATA Scoket with SANDISK protocol, maximum transfer rate 6gb/s | |
| CF | 1*CF card slot | |
| POWER SUPPLY | Power supply TYPE | ATX Power supply |
| WORKING ENVIRONMENT | Operating temperature | -20℃ ~ +60℃ |
| storage temperature | -40℃ ~ +85℃ | |
| Working humidity | 0% ~ 90% relative humidity, no condensation | |
| Storage humidity | 0% ~ 90% relative humidity, no condensation | |
| Size | 255 x 210 mm | |
| Support system | Support Win 7/8/10, Linux, Pfsense, Mikrotik, iKuai, WayOS, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos etc. |
