| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | FW-PB26-BT-J1900 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Intel® Celeron® Bay Trail J1900 Quad Core 4 Threads 2.00~2.42Ghz Processor | RAM: | Onboard 2GB/4GB DDR3 |
|---|---|---|---|
| Display: | VGA | Ethernet: | 6*Intel I211AT LAN |
| COM: | 1*RJ45 Interface RS-232 | USB: | 2*USB 2.0 |
| Size: | 170*170 Mm | ||
| Highlight: | Network Security Firewall Motherboard,Firewall Motherboard Quad Cores,J1900 Pfsense Motherboard |
||

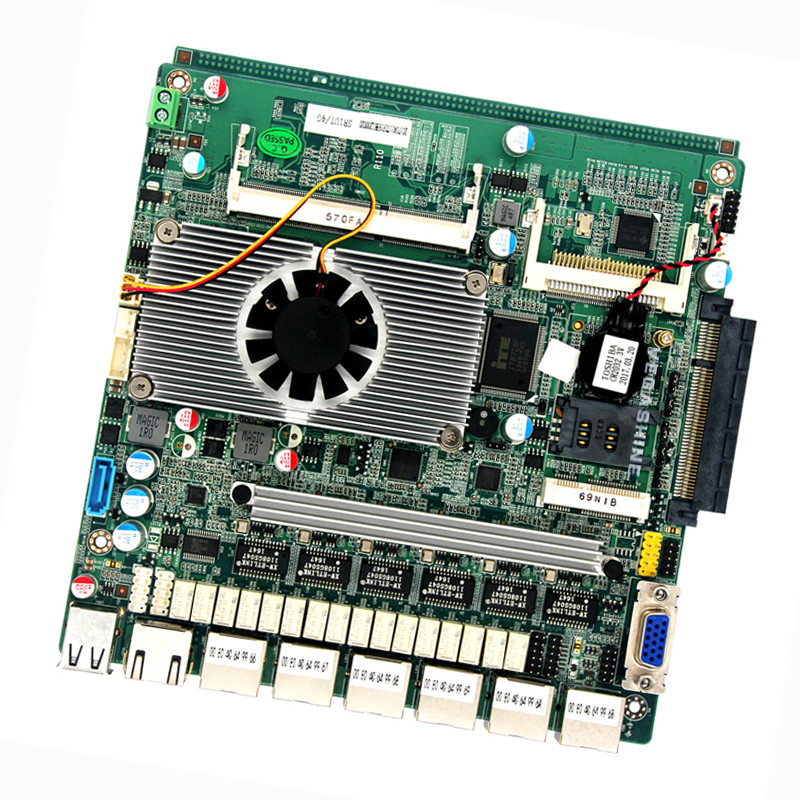

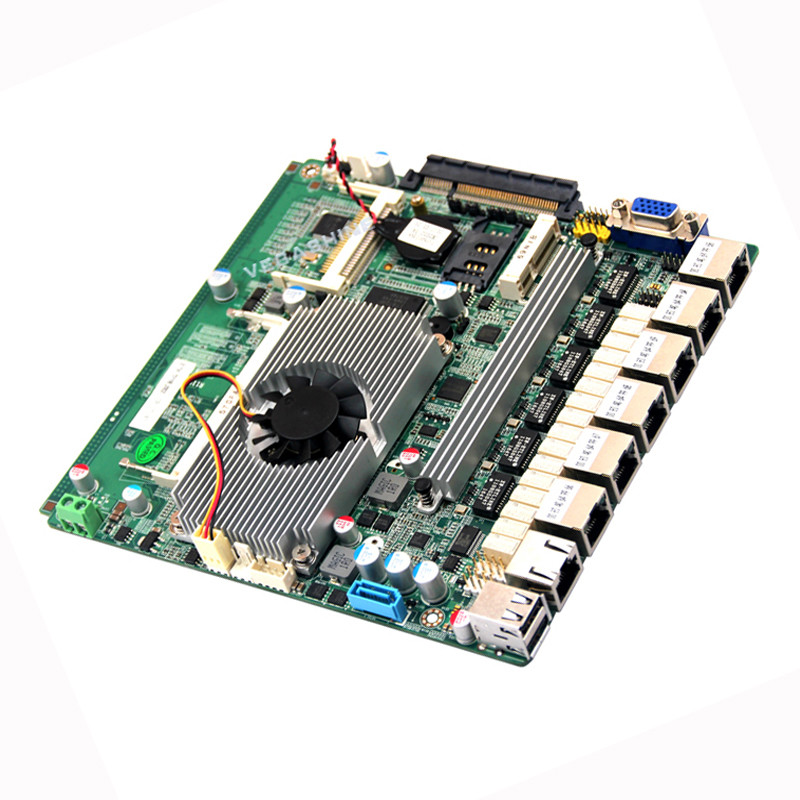

Quad cores J1900 network security motherboard 6 lan mini itx firewall computer Motherboard pfsense router
Key features
Integrated Intel® Celeron® Bay Trail J1900 quad core 4 threads 2.00~2.42Ghz processor
Signal Channel DDR3 1066/1333/1600MHz
Onboard 2GB/4GB DDR3
1*VGA
6*Intel I211AT
2*USB 2.0
1*RJ45 interface RS-232
1*SATAII connector
1*Mini-PCIe M-SATA Scoket
Aluminum heat sink(fan or fanless)
Single input DC power supply, DC12V
Size: 170*170mm
Specifications
| Processor | CPU | Integrated Intel® Celeron® Bay Trail J1900 quad core 4 threads 2.00~2.42Ghz processor |
| CPU Package | BGA | |
| Chipset | Support Intel Baytrail Single chip | |
| BIOS | EFI BIOS | |
| Memory | Technology framework | Signal Channel DDR3 1066/1333/1600MHz |
| Capacity | Onboard 2GB4GB DDR3 | |
| Video | Graphic controller | Intel Graphics |
| VGA | 1*VGA Resolution maximum:2048*1536 | |
| Rear Panel I/O | Ports |
6*LAN 1*COM 2*USB2.0 |
| Network | Controller | Onboard 6*Intel I211-AT Gigabit Ethernet LAN(LAN1 and LAN2,LAN3 and LAN4 support 2 Group Bypass Function) |
| Super I/O | Controller | IT8728F |
| Hardware Monitor | Watchdog-Timer | 0~255 timer |
| Cooler | Aluminum heat sink(fan or fanless) | |
| Input/Output interfaces | USB | 4*USB2.0 pin header, Max. Current supported 5V/1A |
| Serial port | 3*RS232,2*pin header,1*RJ45 ports | |
| GPIO | 8bit,Sample code optional/Free definition of input/output | |
| Storage | SATA | 1*SATA2.0 Maximum transmission rate 3Gb/s |
| M-SATA | 1*mSATA socket ,Supported SANDISK protocol ,Max. transmission rate 3Gb/s | |
| Power Supply | Power Type | Single input DC power supply ,DC12V,+/-5% |
| Power consumption | 15w | |
| Work environment | Working temperature | -20°C~+60°C(-4°F~140°F) |
| Storage temperature | -40°C~+85°C(-40°F~185°F) | |
| Working humidity | 0%~90% (non-condensing) | |
| Storage humidity | 0%~90% (non-condensing) | |
| Dimensions | Size | 170*170mm |
| Weight | 0.5KG | |
| Support system | Support Win 7/8/10, Linux, Pfsense, Mikrotik, iKuai, WayOS, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos etc. |
