| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | FW-PB44-BT-J1900 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Celeron® Bay Trail J1900 Quad Core 4 Threads 2.00~2.42Ghz | RAM: | Single Channel DDR3L 1066/1333MHz, Up To 8GB Ram |
|---|---|---|---|
| Display: | HDMI | Ethernet: | 4*Intel I211AT |
| COM: | 1*RJ45 Interface RS-232 | USB: | 1*USB 2.0, 1*USB3.0 |
| Size: | 120 X 120 Mm | Power: | DC12V |
| Highlight: | J1900 Firewall Motherboard,Firewall Motherboard 4LAN |
||

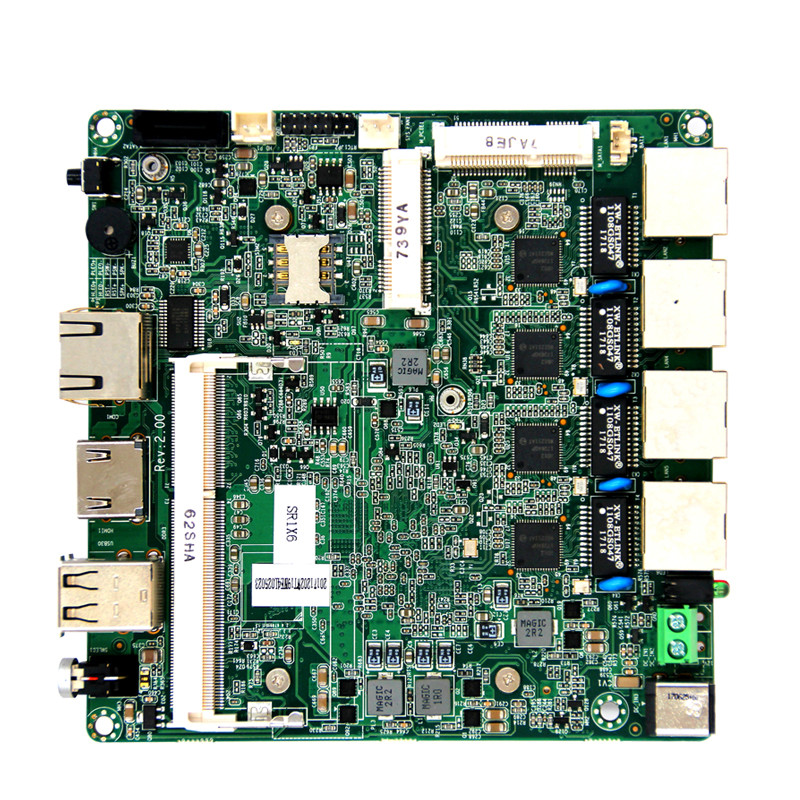

Quad cores J1900 network security motherboard 4 lan nano firewall computer Motherboard
Key features
Integrated Celeron® Bay Trail J1900 quad core 4 threads 2.00~2.42Ghz processor
Single channel DDR3L 1066/1333MHz, Max 8GB ram
1*HDMI
4*Intel I211AT
1*USB 2.0, 1*USB3.0
1*RJ45 interface RS-232
1*SATAII connector
On board 32/64/128G EMMMC
1*Mini-PCIe M-SATA Scoket

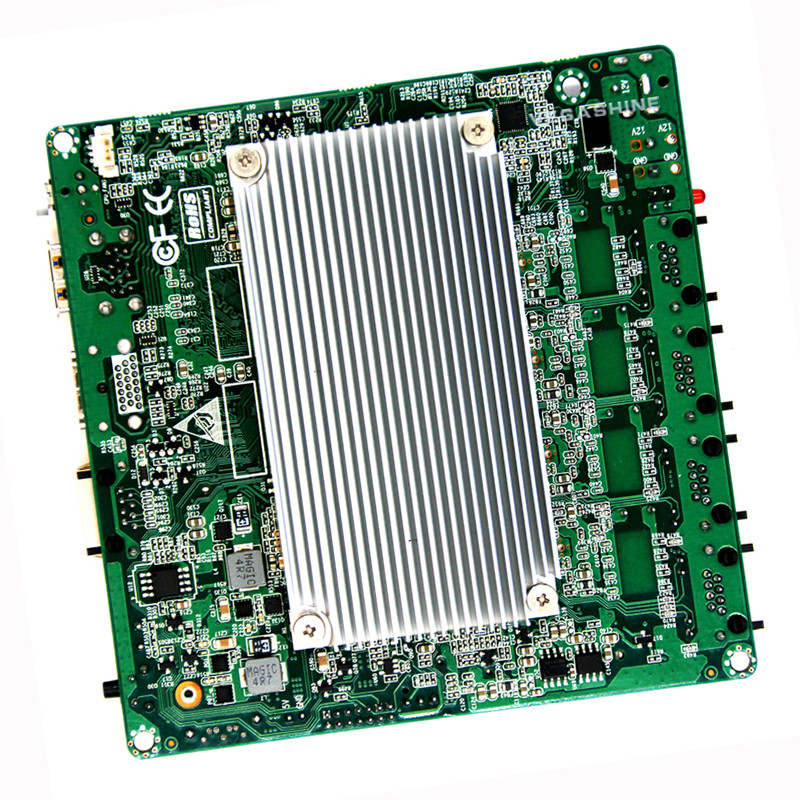

Aluminum alloy heat sink with fan
Single input DC power supply, DC12V
Size: 120*120mm
Specifications
| Processor | CPU | Integrated Celeron® Bay Trail J1900 quad core 4 threads 2.00~2.42Ghz processor |
| CPU package | BGA | |
| Chipset | Support Baytrail-I/D/M serial Processor | |
| BIOS | EFI BIOS | |
| Memory | Technology framework | Singel channel DDR3 1066/1333/1600MHz |
| Capacity | Max support 8GB Ram | |
| socket | DDR3 SODIMM 204 Socket | |
| Video | Graphic controller | Intel HD Graphics |
| HDMI | HDMI Resolution maximum 1920x1080 | |

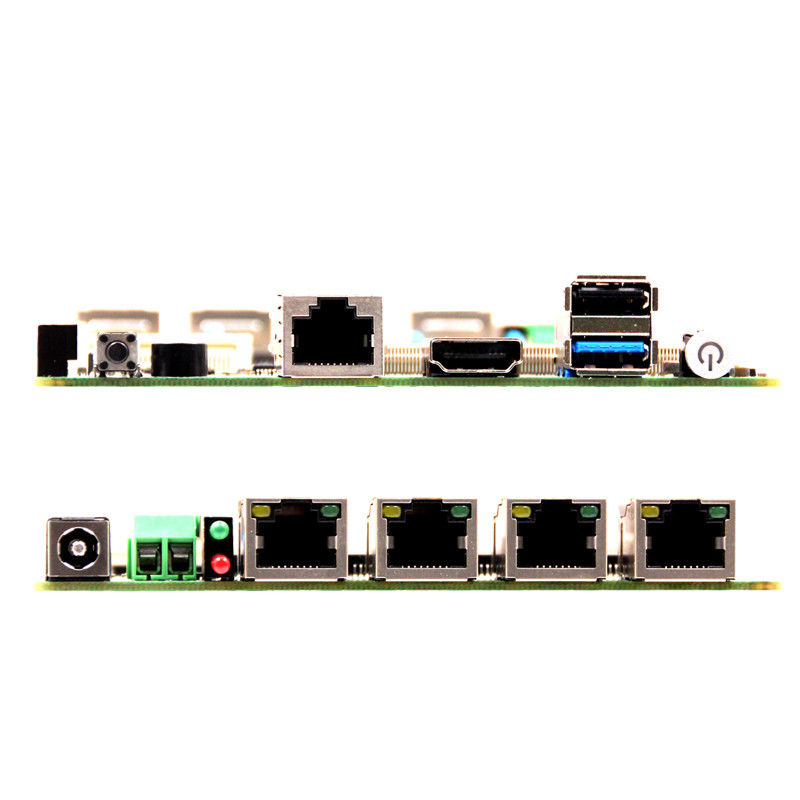

| I/O panel | Interface Port |
1*HDMI 2*USB 4*LAN 1 * Quick Power On button with indicator 1 * Restart button |
| Network | Controller | 4*Intel I211AT high performance Gigabit Ethernet Port,RJ45 Port |
| Hardware monitoring | Watchdog timer | 0-255 seconds,provide watchdog routine |
| Cooler | Aluminum alloy heat sink with fan | |
| Input/Output Interface | USB |
1*USB2.0 1*USB3.0 Max support +5V/1A |
| COM | 1*RJ45 port RS232 or RS485(optional) | |
| PS/2 | NO | |
| Extended bus | Mini-PCle | 1*Mini-PCIe slot ,support PCIe and USB equipment |
| storage | SATA | 1*SATAII connector, Maximum transmission rate 3Gb/s |
| EMMC | On board 32/64/128G EMMMC | |
| M-SATA | 1*Mini-PCIe M-SATA Scoket,support SANDISK Protocol,Maximum transmission rate 3Gb/s | |
| Power Supply | Power Type | Single-input DC power supply, DC12V power supply |
| Power consumption | 20W | |
| Work environment | Working temperature | -20℃ ~ +60℃ |
| Storage temperature | -40℃ ~ +85℃ | |
| Working humidity | 0% ~ 90%(non-condensing) | |
| Storage humidity | 0% ~ 90%(non-condensing) | |
| Support system | Support Win 7/8/10, Linux, Pfsense, Mikrotik, iKuai, WayOS, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos etc. | |
| Size | size | 120 *120 mm |
| weight | 0.5KG |
