| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | FW-PB46-BT-J1900 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Bay Trail J1900 Quad Core 4 Threads 2.0Ghz | RAM: | Single Channel DDR3L 1066/1333MHz, Max 8GB Ram |
|---|---|---|---|
| Display: | HDMI | Ethernet: | 6*Intel I211AT Or Intel I210 |
| COM: | 1*RJ45 Interface RS-232 | USB: | 2*USB 2.0, 1*USB3.0 |
| Size: | 120 X 120 Mm | Power: | DC12-19V |
| Highlight: | Firewall Motherboard J1900,Nano Firewall Motherboard,J1900 network security mainboard |
||

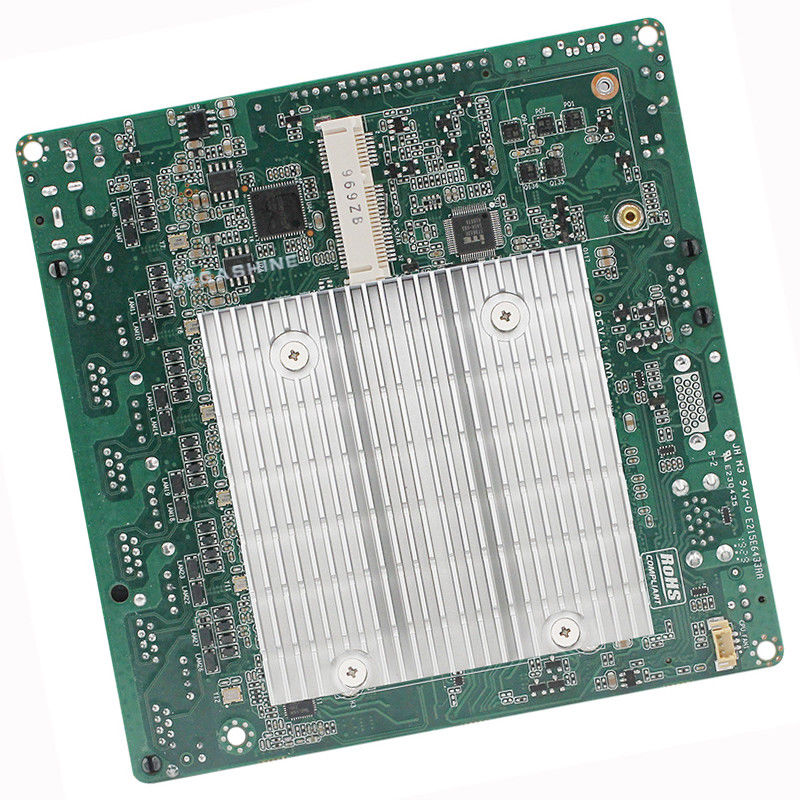

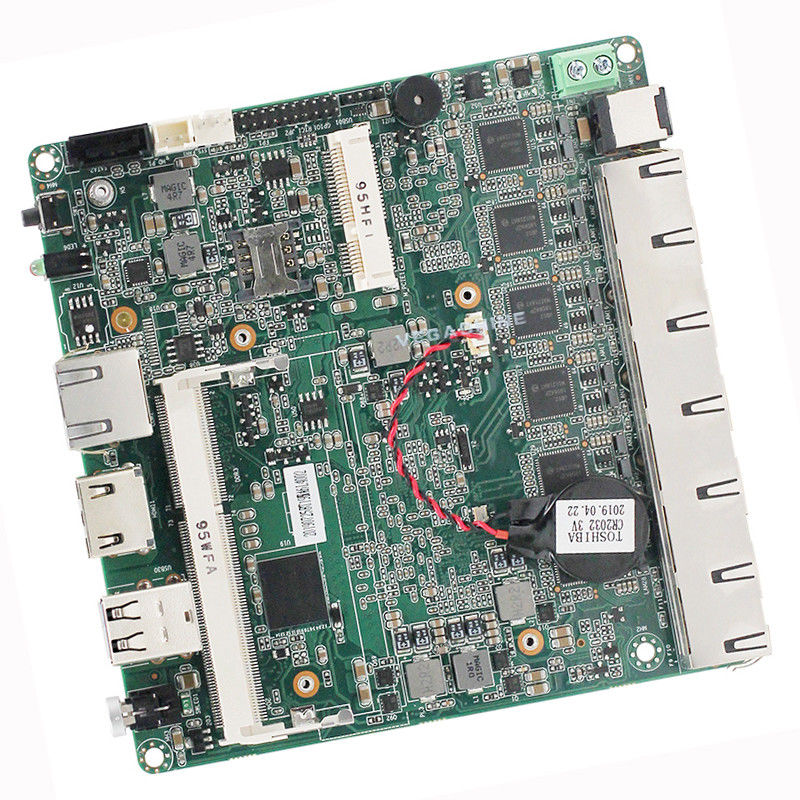

6 lan nano firewall computer Motherboard quad cores J1900 network security mainboard
Key features
Integrated Bay Trail J1900 quad core 4 threads 2.0Ghz processor
Single channel DDR3L 1066/1333MHz, max 8GB ram
6*Intel I211AT or Intel I210
2*USB 2.0, 1*USB3.0
1*RJ45 interface RS-232
1 standard SATAII interface
1 Mini-PCIe M-SATA Scoket
EMMC Support 32/64/128GB(optional)
Aluminum fan radiator
Single input DC power supply, DC12-19V, +/-5%
Size: 120*120mm
Specifications
| Processor | CPU | Integrated Bay Trail J1900 quad core 4 threads 2.0Ghz processor |
| CPU package | BGA | |
| Chipset | Support Baytrail-I/D/M series processor | |
| BIOS | EFI BIOS | |
| Memory | Technology framework | Single channel DDR3L 1066/1333MHz |
| RAM | Max support 8GB ram | |
| Memory socket | DDR3 SODIMM 204 Socket | |
| Video | Graphic controller | Intel HD Graphics |
| HDMI | HDMI support max resolution 1920x1080 | |
| I/O back panel | Ports | 1*HDMI 1*USB3.0 1*USB2.0 6*LAN 1*Quick start button with indicator 1*Reset button 1*DC 1*Power indicator 1*Hard disk indicator |
| Network | Controller | 6*Intel I211AT or Intel I210 (High-performance Gigabit LAN card) |
| Hardware monitoring | Watchdog timer | 0-255 seconds,provide watchdog routine |
| Cooler | Aluminum fan radiator (supports automatic and manual fan speed adjustment) | |
| Input/output interface | USB |
2*USB2.0 1*USB3.0 max support +5V/1A |
| Com port | 1*RJ45 interface RS-232 or RS485(optional) | |
| Extension Bus | Mini-PCle | 1 Mini-PCIe slot for PCIE and USB signaling devices |
| Storage | SATA | 1 standard SATAII interface, maximum transfer rate 3Gb/s |
| M-SATA | 1 Mini-PCIe M-SATA Scoket, supporting SANDISK protocol, maximum transfer rate 3gb/s | |
| EMMC | Support 32/64/128GB(optional) | |
| Power | Power type | Single input DC power supply,DC12-19V,+/-5% |
| Working environment | Working temperature | -20℃ ~ +60℃ |
| Storage temperature | -40℃ ~ +85℃ | |
| Working humidity | 0%~90% (non-condensing) | |
| Storage humidity | 0%~90% (non-condensing) | |
| Support system | Support Win 7/8/10, Linux, Pfsense, Mikrotik, iKuai, WayOS, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos etc. | |
| Dimension | Size | 120 x 120 mm |
| Weight | 0.5KG |
