| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | FW-PB46-7TH |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Intel® Kaby Lake 7th Gen I3-7100U / I5-7200U / I7-7500U / Celeron 3865U / 3965U | RAM: | 2*DDR4 SODIMM 260 Socket |
|---|---|---|---|
| Display: | HDMI | Ethernet: | 6*Intel I211AT Or Intel I210(optional) |
| COM: | 1*RJ45 Serial Ports | USB: | 4*USB3.0, 2*USB2.0 |
| Size: | 120 X 120 Mm | Power: | DC12-19V |
| Highlight: | 7th gen pfsense mainboard,i3-7100U pfsense mainboard,Nano pfsense mainboard |
||
Notice:
When you inquiry , you can choose the following Model
FW-PB46-7TH-3865U Integrated Kaby Lake-U Intel® Celeron® Processor 3865U dual cores 2 threads 1.8GHz Processor
FW-PB46-7TH-3965U Integrated Kaby Lake-U Intel® Celeron® Processor 3865U dual cores 2 threads 2.2GHz Processor
FW-PB46-7TH-I3 Integrated Kaby Lake-U i3-7100U dual cores 4 threads 2.4GHz Processor
FW-PB46-7TH-I5 Integrated Kaby Lake-U i5-7200U dual cores 4 threads 2.5~3.1GHz Processor
FW-PB46-7TH-I7 Integrated Kaby Lake-U i7-7500U dual cores 4 threads 2.7~3.5GHz Processor

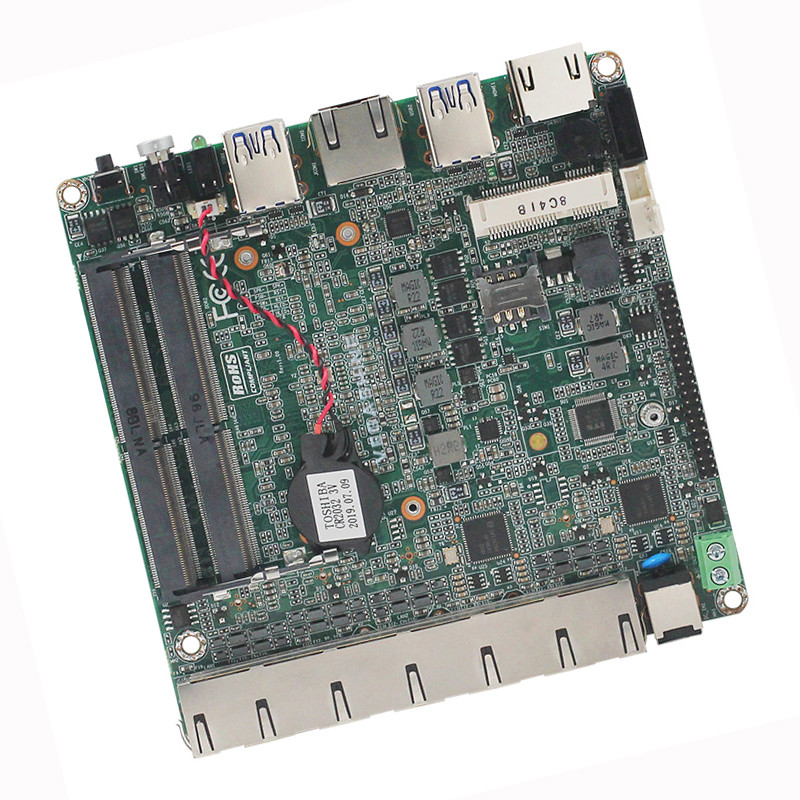

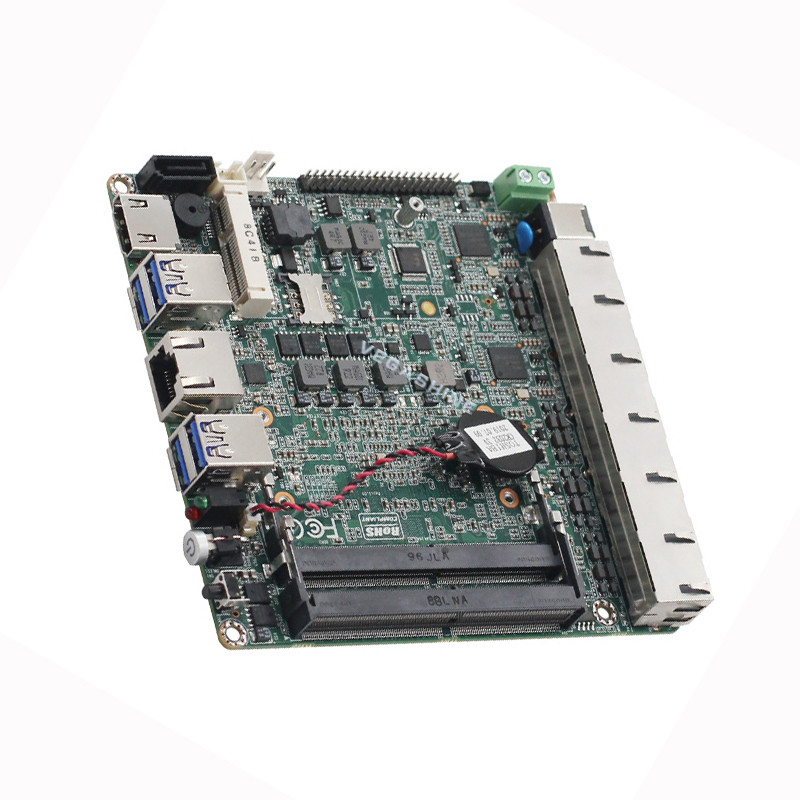

The Model No. FW-PB46-7TH firewall pc motherboard integrated Intel® Kaby Lake 7th Gen I3-7100U / I5-7200U / I7-7500U / Celeron 3865U / 3965U CPU, With 6*Intel I211AT RJ45 ports , 1* Cisco standard RJ45 COM , Nano size 120 x 120 mm DC power supply support Pfsense
Specifications
| Processor | CPU |
Intel® Kaby Lake 7th Gen I3-7100U / I5-7200U / I7-7500U / Celeron 3865U / 3965U
|
| CPU package | BGA | |
| Intel chipset | Intel® Kaby Lake serial SOC | |
| BIOS | EFI BIOS | |
| Memory | Technology Architecture | Dual channel DDR4 2133Mhz; |
| socket | 2 *DDR4 SODIMM 260 Socket | |
| Video | Graphics controller | Intel® HD Graphics 620 |
| HDMI | Maximum resolution support (HDMI1.4) 4096*2304@24HZ Support 4K display | |

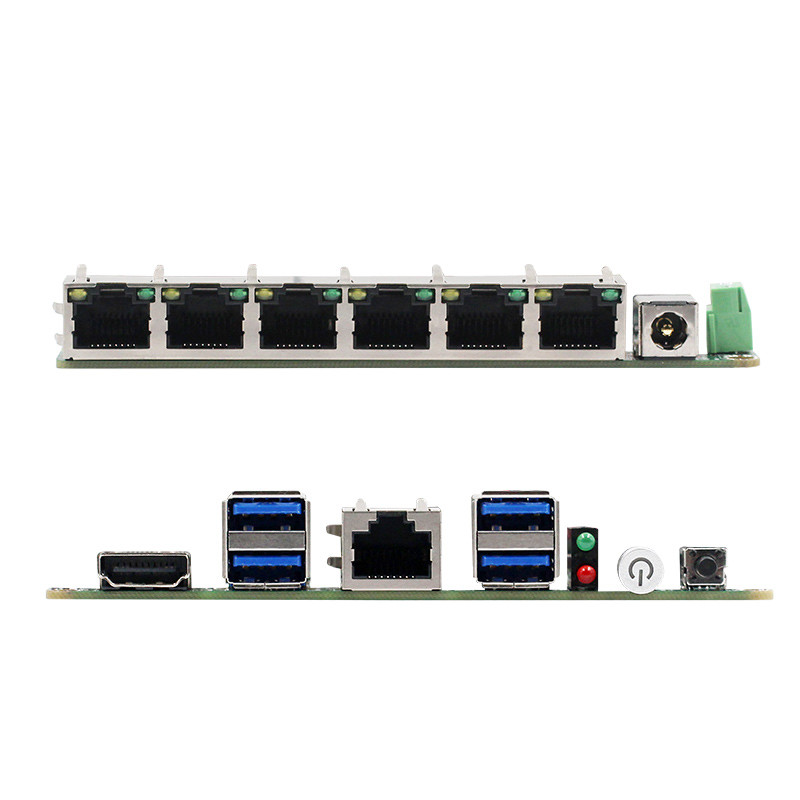

| I/O backpanel | Ports |
1*HDMI 6*LAN 4*USB3.0 1* quick start button with indicator light 1* reset button 1*DC 1* power indicator 1* hard disk indicator |
| Internet | controller | 6*Intel I211AT or Intel I210(optonal) |
| Super I/O | controller | ITE8613 |
| Hardwaremonitoring | Watch-dog timer | 0-255 seconds, providing a watchdog routine |
| Cooler | Aluminum fan heater (supports automatic and manual fan speed adjustment) | |
| Input/outputinterface | USB | 4*USB3.0 compatible with USB2.0 / 1.1, 2*USB2.0, maximum support +5V/1.5A (USB2.0 is the pin header interface) |
| Com | 1*RJ45 interface RS232 or RS485 (485 is the pin header, RS232 or RS485 is selected by jump cap and BIOS) | |
| GPIO | 8-bit, providing routines, freely defined input/output, 3.3V@24mA level | |
| Expansion bus | Mini-PCle | 1* Mini-PCIe slot for PCIE signal and USB signal devices |
| storage | SATA | 1* standard SATAIII interface with a maximum transfer rate of 6Gb/s |
| M-SATA | 1*Mini-PCIe M-SATA Scoket, supporting SANDISK protocol, maximum transfer rate 6gb/s (optional M-SATA and SATA1 interfaces) | |
| power supply | Power type | DC 12-19V Power supply |
| working environment | Operatingtemperature | -20℃ ~ +60℃ |
| storagetemperature | -40℃ ~ +85℃ | |
| Working humidity | 0% ~ 90% relative humidity, no condensation | |
| Storage humidity | 0% ~ 90% relative humidity, no condensation | |
| Size | 120*120mm | |
| Operate System | Support Win 7/8/10, Linux, Pfsense, Mikrotik, iKuai, WayOS, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos etc. |
Our service:
1. We can provideOEM/ODM services .
2. We can print your Logo when you make order more than 50 pieces
3. We can sell one sample for your test .
4. High-quality product and competitive price.
5. 1 years Warranty
