| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | FW-PB46-7TH-3865U |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Intel® Core™ Tiger Lake I7-1165G7 Quad Cores 8 Threads 4.7Ghz | RAM: | 2*DDR4 SODIMM 260 Socket |
|---|---|---|---|
| Display: | HDMI | Ethernet: | 6*Intel I211AT Or Intel I210(optional) |
| COM: | 1*RJ45 Serial Ports | USB: | 4*USB3.0, 2*USB2.0 |
| Size: | 120 X 120 Mm | Power: | DC12-19V |
| Highlight: | 6LAN industrial mainboard,industrial mainboard 3865U,OEM Nano industrial mainboard |
||

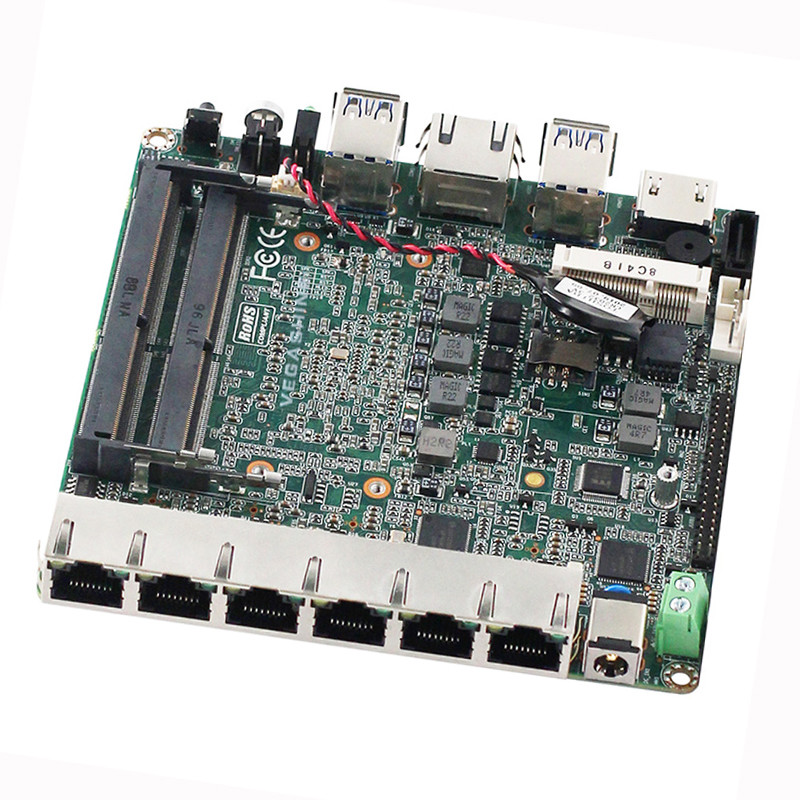

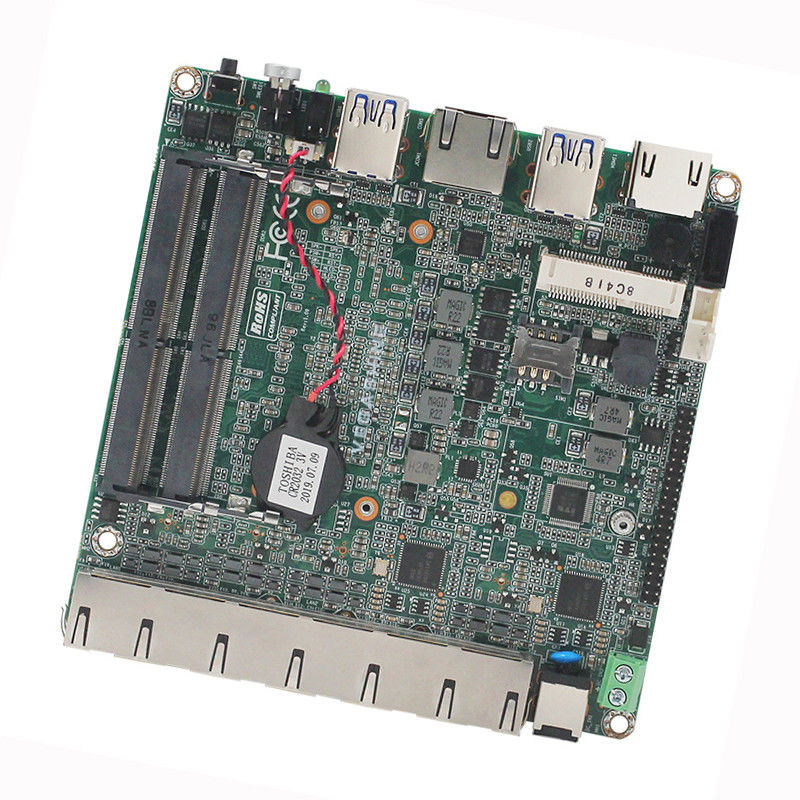

Intel® Kaby Lake 3865U 6 gigabit lan industrial NANO motherboard for Firewall pc pfsense router
Key features
Integrated Intel® Celeron® Kaby Lake 3855U dual cores 2 threads 1.8Ghz CPU
Support Dual channel DDR4 2133Mhz
2 *DDR4 SODIMM 260 Socket
Intel® HD Graphics 510
6*Intel I211AT or Intel I210(optional)
1*RJ45 Serial ports
1*HDMI
4*USB3.0
2*USB2.0
1*Standard SATAIII ports
1*Mini-PCIe M-SATA Scoket
Aluminum alloy heat sink with fan
Single input DC power, DC12-19V
Size: 120 x 120 mm
Specifications
| Processor | CPU |
Integrated Intel® Celeron® Kaby Lake 3855U dual cores 2 threads 1.8Ghz CPU
|
| CPU package | BGA | |
| Intel chipset | Intel® Kaby Lake serial SOC | |
| BIOS | EFI BIOS | |
| Memory | Technology Architecture | Dual channel DDR4 2133Mhz; |
| socket | 2 *DDR4 SODIMM 260 Socket | |
| Video | Graphics controller | Intel® HD Graphics 610 |
| HDMI | Maximum resolution support (HDMI1.4) 4096*2304@24HZ Support 4K display | |
| I/O backpanel | Ports |
1*HDMI 6*LAN 4*USB3.0 1* quick start button with indicator light 1* reset button 1*DC 1* power indicator 1* hard disk indicator |
| Internet | controller | 6*Intel I211AT or Intel I210(optonal) |
| Super I/O | controller | ITE8613 |
| Hardwaremonitoring | Watch-dog timer | 0-255 seconds, providing a watchdog routine |
| Cooler | Aluminum fan heater (supports automatic and manual fan speed adjustment) | |
| Input/outputinterface | USB | 4*USB3.0 compatible with USB2.0 / 1.1, 2*USB2.0, maximum support +5V/1.5A (USB2.0 is the pin header interface) |
| Com | 1*RJ45 interface RS232 or RS485 (485 is the pin header, RS232 or RS485 is selected by jump cap and BIOS) | |
| GPIO | 8-bit, providing routines, freely defined input/output, 3.3V@24mA level | |
| Expansion bus | Mini-PCle | 1* Mini-PCIe slot for PCIE signal and USB signal devices |
| storage | SATA | 1* standard SATAIII interface with a maximum transfer rate of 6Gb/s |
| M-SATA | 1*Mini-PCIe M-SATA Scoket, supporting SANDISK protocol, maximum transfer rate 6gb/s (optional M-SATA and SATA1 interfaces) | |
| power supply | Power type | DC 12-19V Power supply |
| working environment | Operatingtemperature | -20℃ ~ +60℃ |
| storagetemperature | -40℃ ~ +85℃ | |
| Working humidity | 0% ~ 90% relative humidity, no condensation | |
| Storage humidity | 0% ~ 90% relative humidity, no condensation | |
| Size | 120*120mm | |
| Operate System | Support Win 7/8/10, Linux, Pfsense, Mikrotik, iKuai, WayOS, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos etc. |
