| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | FW-PB44-6TH |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Intel® 6th Generation I3-6100U I5-6200U I7-6500U | RAM: | 2*DDR4 SODIMM 260 Socket |
|---|---|---|---|
| Display: | HDMI | Ethernet: | 4*Intel I211AT Or Intel I210(optional) |
| COM: | 1*RJ45 Serial Ports | USB: | 4*USB3.0, 2*USB2.0 |
| Size: | 120 X 120 Mm | Power: | DC12-19V |
| Highlight: | HDMI Firewall Motherboard,4 NIC Firewall Motherboard,i5-6200U Firewall Motherboard |
||
Notice:
When you inquiry , you can choose the following Model
FW-PB44-6TH-3855U Integrated Skylake Intel® Celeron® Processor Dual core 2 threads 1.6Ghz processor
FW-PB44-6TH-I3 Integrated Skylake i3-6100U dual cores 4 threads 2.3GHz Processor
FW-PB44-6TH-I5 Integrated Skylake i5-6200U dual cores 4 threads 2.3~2.8GHz Processor
FW-PB44-6TH-I7 Integrated Skylake i7-6500U dual cores 4 threads 2.5~3.1GHz Processor

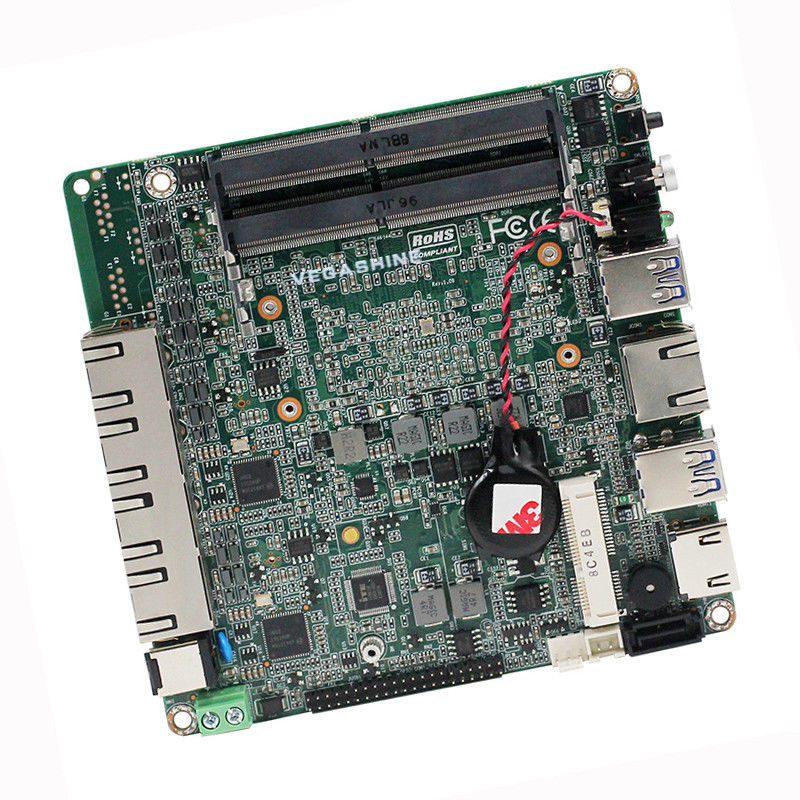

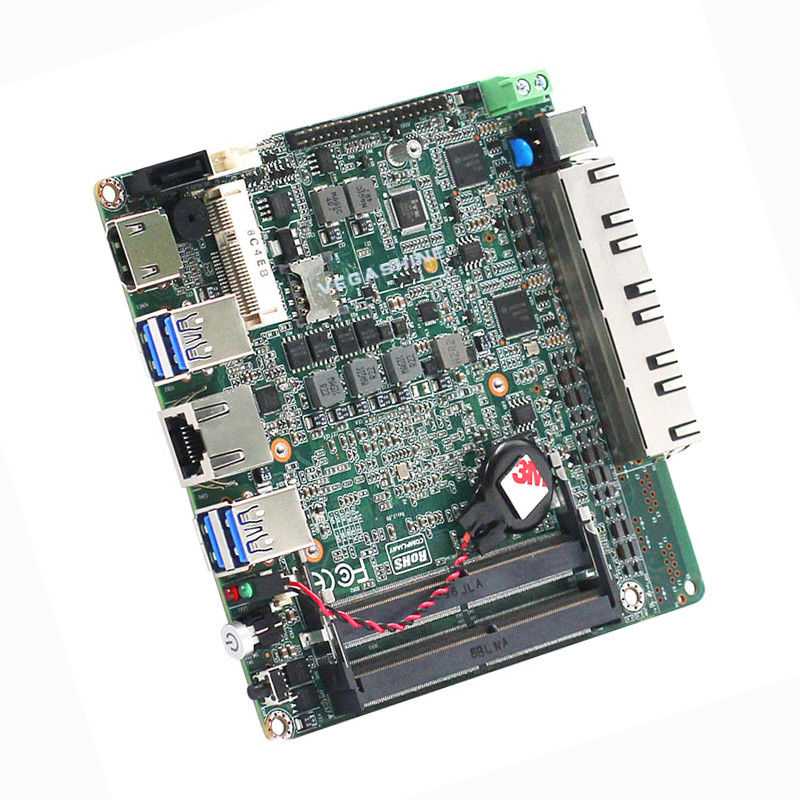

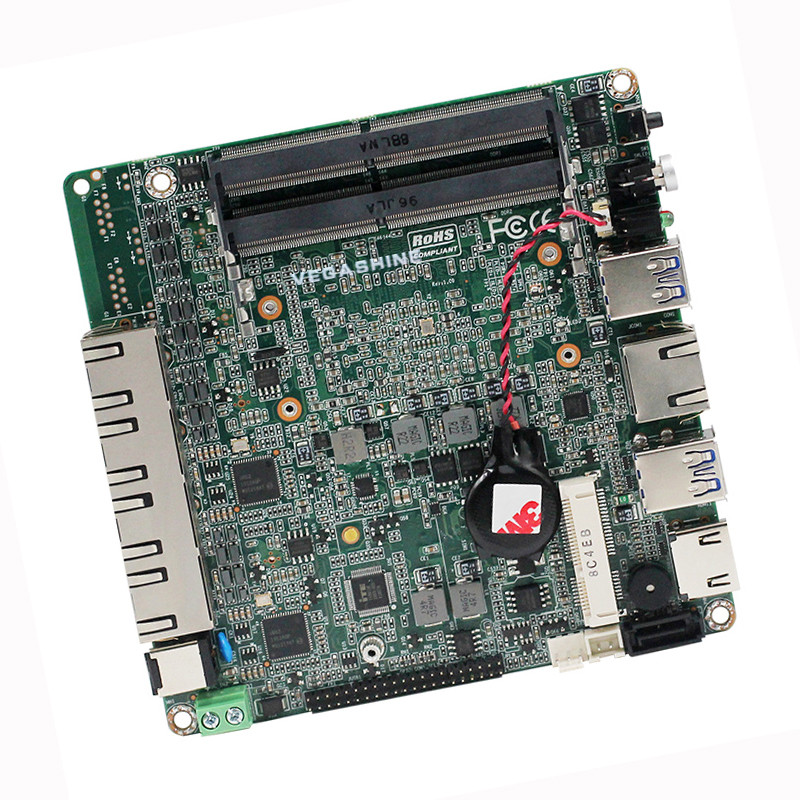

NANO Firewall PC Motherboard Intel® 6th generation I3-6100U I5-6200U I7-6500U 4 NIC Pfsense Router
Key features
Intel® 6th generation I3-6100U / I5-6200U / I7-6500U
Support Dual channel DDR4 2133Mhz;
2*DDR4 SODIMM 260 Socket
Intel® HD Graphics 520
4*Intel I211AT or Intel I210(optional)
1*RJ45 Serial ports
1*HDMI
4*USB3.0
2*USB2.0
1*Standard SATAIII ports
1*Mini-PCIe M-SATA Scoket
Aluminum alloy heat sink with fan
Single input DC power, DC12-19V
Size: 120 x 120 mm
Specifications
| Processor system | CPU | Integrated Intel® 6th generation Skylake-U I3-6100U / I5-6200U / I7-6500U |
| CPU package | BGA | |
| Chipset | Intel® Skylake--U Series SOC | |
| BIOS | EFI BIOS | |
| internal storage | Technology Architecture | Dual channel DDR4 2133Mhz; |
| socket | 2 *DDR4 SODIMM 260 Socket | |
| video frequency | Graphics controller | Intel HD Graphics 520 (I3-6100U graphics card); graphics card model is related to the CPU |
| HDMI | Maximum resolution support (HDMI1.4) 4096*2304@30HZ Support 4K display | |

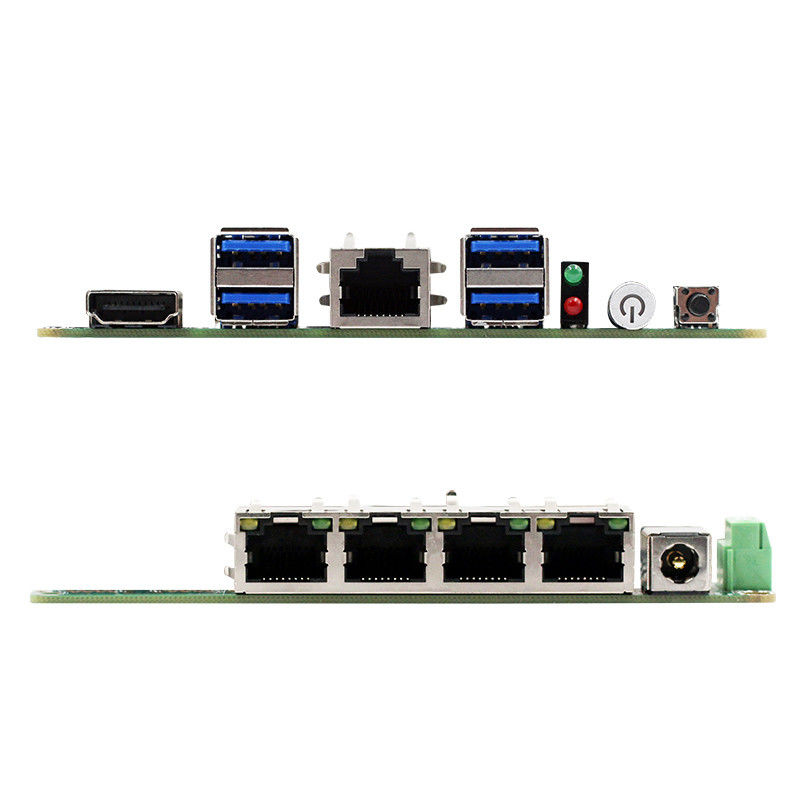

| I/O rear panel | port |
1*HDMI 4*LAN 4*USB3.0 1* quick start button with indicator light 1* reset button 1*DC 1* power indicator 1* hard disk indicator |
| network | Controller | 4 Intel I211AT or Intel I210 (choose one) |
| Super I/O | Controller | ITE8613 |
| Hardware monitoring | Watchdog timer | 0-255 seconds, providing a watchdog routine |
| Cooler | Aluminum fan heater (supports automatic and manual fan speed adjustment) | |
| Input / output interface | USB |
4*USB3.0 compatible with USB2.0 / 1.1, 2*USB2.0, maximum support +5V/1.5A (USB2.0 is the pin header interface) |
| Serial port | 1*RJ45 interface RS232 or RS485 (485 is the pin header, RS232 or RS485 is selected by jump cap and BIOS) | |
| GPIO | 8-bit, providing routines, freely defined input/output, 3.3V@24mA level | |
| Expansion bus | Mini-PCle | 1 Mini-PCIe slot for PCIE signal and USB signal devices |
| storage | SATA | 1 *standard SATAIII interface with a maximum transfer rate of 6Gb/s |
| M-SATA | 1 Mini-PCIe M-SATA Scoket, supporting SANDISK protocol, maximum transfer rate 6gb/s (optional M-SATA and SATA1 interfaces) | |
| Power supply | Power type | DC 12-19V power supply |
| WORKING ENVIRONMENT | Operating temperature | -20℃ ~ +60℃ |
| storage temperature | -40℃ ~ +85℃ | |
| Working humidity | 0% ~ 90% relative humidity, no condensation | |
| Storage humidity | 0% ~ 90% relative humidity, no condensation | |
| size | size | 120 x 120 mm |
| weight | 0.5KG | |
| Support system | Support Win 7/8/10, Linux, Pfsense, Mikrotik, iKuai, WayOS, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos etc. |
About RMA
1--Warranty 1 year
2--If buyer confirm the item can`t work well due to the non-artificial factors,buyer can return it to our company. Buyers should keep it with proper packaging.
3--Buyers are responsible for return to china freight cost .
4--Seller will repair item and ship the repaired one to buyer,seller will pay the shipping cost from China to Buyer address.
5--Please contact us firstly before returning defective goods by email.
