| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | FW-PB24-BT-E3845 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Atom® Bay Trail E3845 Quad Core 4 Threads 1.91Ghz Processor | RAM: | Onboard 2GB/4GB DDR3 RAM |
|---|---|---|---|
| Display: | VGA | Ethernet: | 4*Intel I211-AT Gigabit Ethernet LAN |
| COM: | 1*RJ45 Interface RS-232 | USB: | 4*USB 2.0 |
| Size: | 170*170 Mm | ||
| Highlight: | Firewall Motherboard Mini,Firewall Motherboard 4 Lan,Network Security Pfsense Motherboard |
||

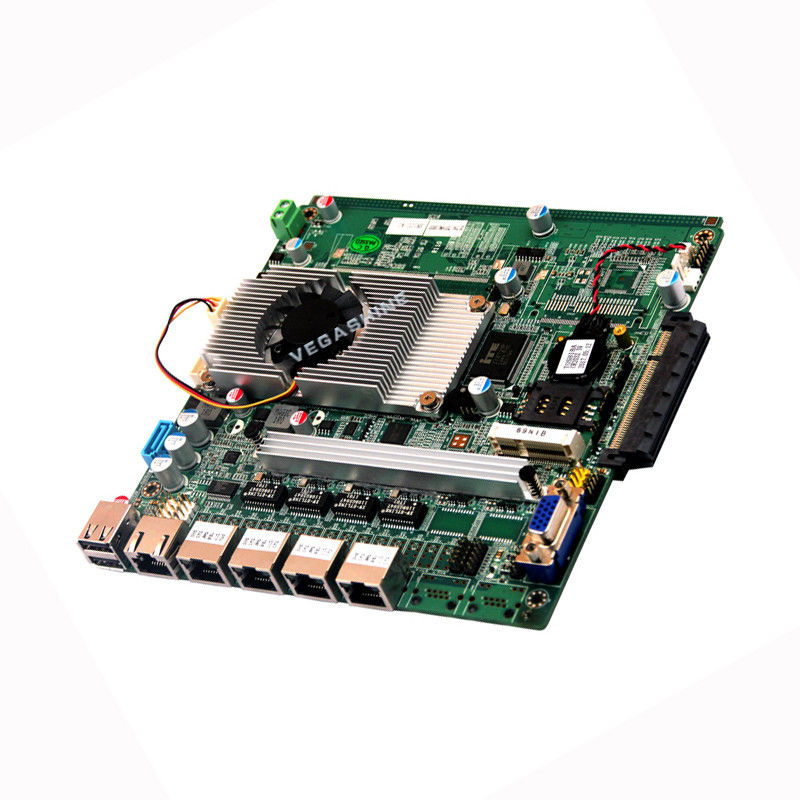

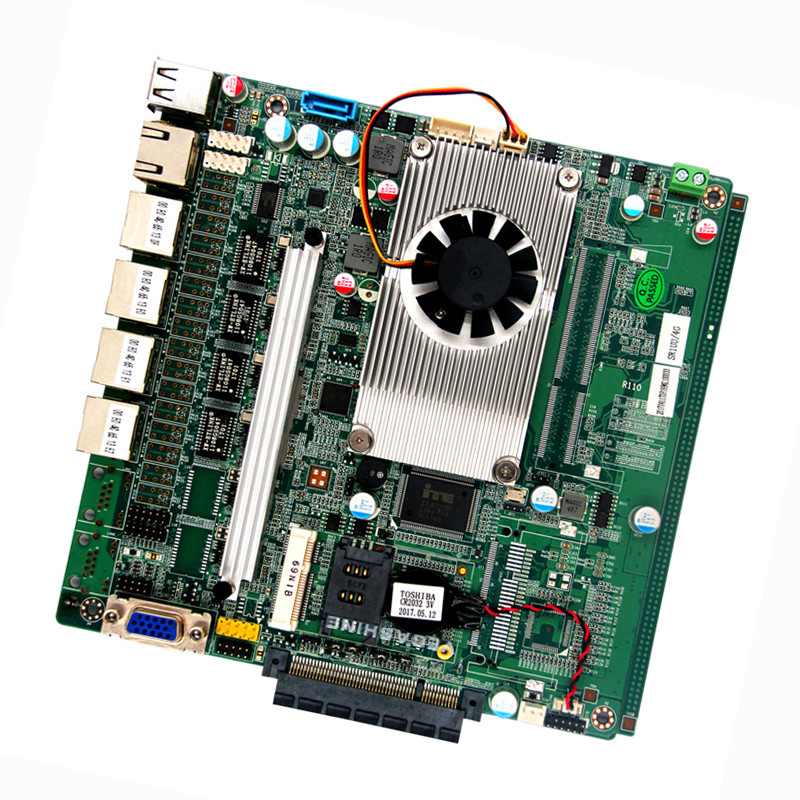

Quad cores E3845 Mini itx 4 lan firewall PC Motherboard pfsense network security mainboard
Key features
Integrated Atom® Bay Trail E3845 Quad core 4 threads 1.91Ghz processor
Onboard 2GB/4GB DDR3
4*Intel I211-AT Gigabit Ethernet LAN
1*RJ45 interface RS-232
1*VGA
1*SATAII connector
1*Mini-PCIe M-SATA Scoket
Aluminum alloy heat sink with fan
Single input DC power supply,DC12V
Size: 170*170mm
Specifications
| Processor | CPU | Integrated Atom® Bay Trail E3845 Quad core 4 threads 1.91Ghz processor |
| CPU Package | BGA | |
| Chipset | Support Intel Baytrail Single chip | |
| BIOS | EFI BIOS | |
| Memory | Technology framework | Signal Channel DDR3 1066/1333/1600MHz |
| Capacity | Onboard 2GB4GB DDR3 | |
| RAM socket | Can add 1*RAM socket,Max support 8GB Ram | |
| Video | Graphic controller | Intel Graphics |
| VGA | VGA Resolution maximum 2048x1536 | |
| Rear Panel I/O | Ports |
4*LAN 1*RJ45 COM 2*USB2.0 |
| Network | Controller | 4*Intel I211-AT Gigabit Ethernet LAN(LAN1 and LAN2,LAN3 and LAN4 support 2 Group Bypass Function) |
| Super I/O | Controller | IT8728F |
| Hardware Monitor | Watchdog-Timer | 0~255 timer |
| Cooler | Aluminum heat sink with fan(or fanless) | |
| Input/Output interfaces | USB | 4*USB2.0 pin header, Max. Current supported 5V/1A |
| Serial ports | 2*RS232,2*pin header,1*RJ45 ports(When RJ45 interface’s serial port can use,only have 1*serial port pin header ) | |
| GPIO | 8bit,sample code, Free defination input or output ,3.3V@24mA | |
| Storage | SATA/M-SATA | 1*SATAII connector, Maximum transmission rate 3Gb/s |
|
1*M-SATA Scoket,support SANDISK Protocol,Maximum transmission rate 3Gb/s.(Optional) |
||
| CF/Cfast | 1*CF or Cfast storage interface(Optional) | |
| Power Supply | Power Type | Single-input DC power supply,DC12V,+/-5% |
| Power consumption | 15w | |
| Work environment | Working temperature | -20°C~60°C (-32°F~140°F) |
| Storage temperature | -40°C~85°C (-104°F~185°F ) | |
| Working humidity | 10%~90% (non-condensing) | |
| Storage humidity | 10%~90% (non-condensing) | |
| Measure | Size | 170mm x 170 mm |
| Weight | 0.5KG | |
| Support system | Support Win 7/8/10, Linux, Pfsense, Mikrotik, iKuai, WayOS, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos etc. |
About RMA
1--Warranty 1 year
2--If buyer confirm the item can`t work well due to the non-artificial factors,buyer can return it to our company. Buyers should keep it with proper packaging.
3--Buyers are responsible for return to china freight cost .
4--Seller will repair item and ship the repaired one to buyer,seller will pay the shipping cost from China to Buyer address.
5--Please contact us firstly before returning defective goods by email.
