| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | NANO-P4512V-BT-J1900 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Intel® Celeron® Bay Trail J1900 Quad Core 4 Threads 2.00~2.42GHz | RAM: | Single Channel DDR3 1066/1333MHz Up To 8G |
|---|---|---|---|
| Ethernet: | 2*Gigabit LAN | Display: | 1*VGA |
| COM: | 4* RS232 COM | Power: | DC 12-19V |
| Size: | 120 * 120 Mm | ||
| Highlight: | J1900 fanless itx motherboard,fanless itx motherboard 4 COM |
||

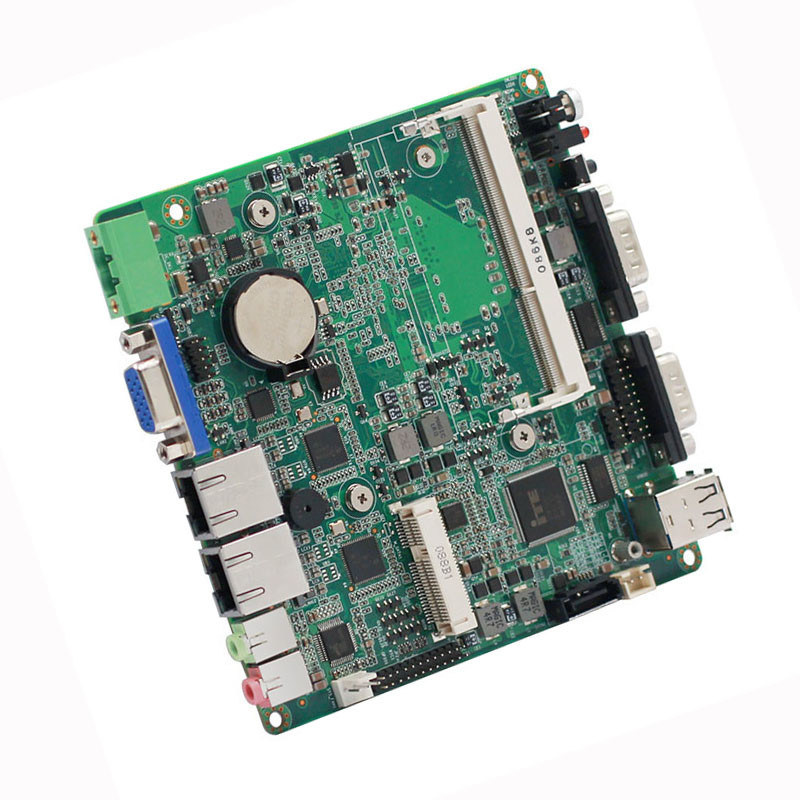

Quad Cores J1900 NANO Fanless NUC Motherboard 4 COM 2 LAN Industrial mainboard
Key features
Integrated Intel® Celeron® Bay Trail J1900 quad core 4 threads 2.00~2.42GHz Processor
Single channel DDR3 1066/1333MHz up to 8G
Intel® HD Graphics
1*VGA
4*RS232 COM
2 Intel I211AT gigabit network cards
5*USB2.0, 1 * USB3.0
1*standard SATAII
1*Mini-PCIe socket
Wide voltage DC 12-19V power supply
size 120 * 120 mm
Specifications
| Processor system | CPU |
Integrated Intel® Celeron® Bay Trail J1900 quad core 4 threads 2.00~2.42GHz Processor
|
| CPU package | BGA | |
| chipset | Support Baytrail-M/D series processors | |
| BIOS | EFI BIOS | |
| RAM | Technology Architecture | Single channel DDR3 1066/1333MHz |
| Slot | DDR3 SODIMM 204 Socket | |
| video | Graphics controller | Intel HD Graphics |
| VGA | VGA supports a maximum resolution of 1920x1200 | |
| I/O backplane | port |

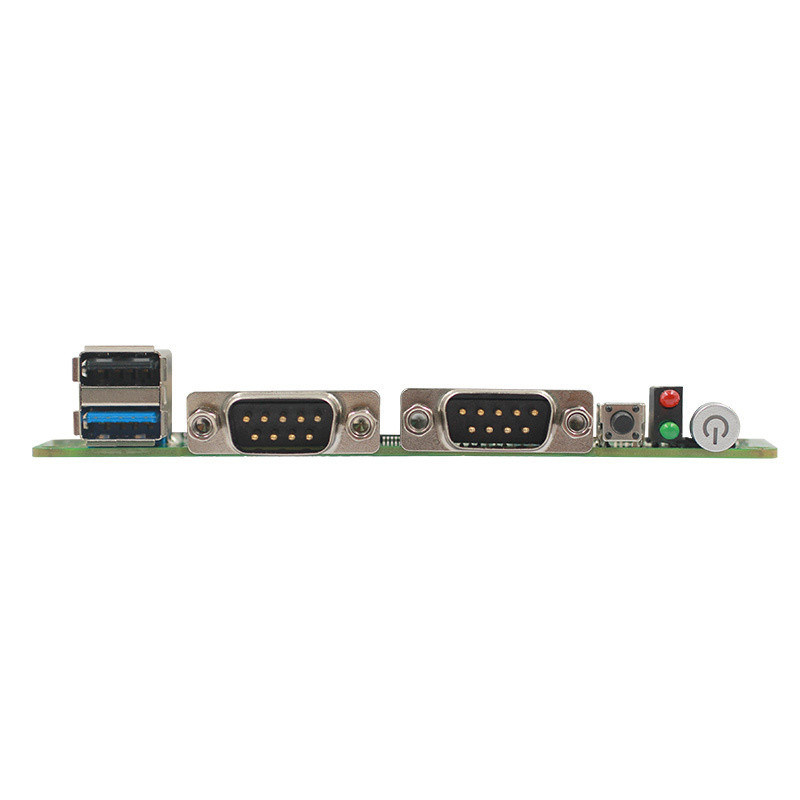

1*DC 1*VGA 2*LAN 1*MIC-OUT/LINE-OUT 1*USB3.0 1*USB2.0 2*COM |
| The internet | Controller | 2 Intel I211AT gigabit network cards, RJ45 interface |
| Audio | Controller | Realtek HD ALC662 audio decoding (left and right channels + microphone) |
| Hardware monitoring | Watchdog timer | 0-255 seconds, provide watchdog routine |
| Cooler | Aluminum radiator with fan (available without fan) | |
| Input/output interface | USB |
1*USB3.0 compatible with USB2.0 / 1.1 5*USB2.0, maximum support +5V/1A |
| Serial port | 4* RS-232 | |
| GPIO | 8-bit, provide routines, freely define input/output. | |
| storage | SATA | 1 standard SATAII interface, maximum transfer rate 3Gb/s |
| M-SATA | 1 M-SATA Scoket, support SANDISK protocol, maximum transfer rate 3Gb/s | |
| power supply | Power supply type | Single input DC power supply, DC12-19V, +/-5% |
| working environment | Operating temperature | -20℃ ~ +60℃ |
| storage temperature | -40℃ ~ +85℃ | |
| Working humidity | 0% ~ 90% relative humidity, non-condensing | |
| Storage humidity | 0% ~ 90% relative humidity, non-condensing | |
| System Support | J1900 CPU supports Windows7 Windows8.1 Windows10 Linux, | |
| J1800 CPU only supports Windows8.1 Windows10, | ||
| physical dimension | size | 120 x 120 mm |
| weight | 0.5KG |
