| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | NANO-P1312VHL-J1900 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Intel® Celeron® Bay Trail J1900 Quad Core 4 Threads 2.00~2.42GHz | RAM: | Single Channel DDR3 1066/1333MHz Up To 8G |
|---|---|---|---|
| Ethernet: | 2*Gigabit LAN | Display: | VGA / HDMI / LVDS |
| COM: | 1*RJ45 COM (1*RS-232) | Power: | DC12V 5A/7A |
| Size: | 120 * 120 Mm | ||
| Highlight: | Core J1900 Nano Motherboard,Nano Motherboard Itx,Industrial Motherboard RJ45 |
||
Quad core J1900 NANO itx mainboard RJ45 RS232 console 2 LAN industrial motherboard for mini desktop computer
Key features
Integrated Intel® Celeron® Bay Trail J1900 quad core 4 threads 2.00~2.42GHz Processor
Single channel DDR3 1066/1333MHz up to 8G
Intel® HD Graphics
Support VGA / HDMI / LVDS display
1*VGA
1*HDMI
2*Gigabit LAN
3*USB2.0
1*USB3.0
1* standard SATAII
1* M-SATA Scoket
Onboard EMMC 32/64/128G(optional)
Single input DC power supply ,DC12V5A/7A
size 120 * 120 mm
Specifications
| Processor | CPU | Integrated Intel® Celeron® Bay Trail J1900 quad core 4 threads 2.00~2.42GHz Processor |
| CPU package | BGA | |
| chipset | Support Baytrail-I/D/M serial CPU | |
| BIOS | EFI BIOS | |
| Memory | Technology Architecture | Single channel DDR3L 1066/1333MHz |
| Socket | DDR3 SODIMM 204 Socket | |
| Video | Graphics controller | Intel HD Graphics |
| Dual LVDS and EDP | LVDS dual channel 24bits output,,max resolution:1920 x 1200 EDP max support resolution:2560*1600(LVDS or EDPdisplay for optional) | |
| VGA | VGA support max resolution:2048x1536 | |
| HDMI | HDMI support max resolution: 1920x1080 | |
| Dual display | LVDS + VGA,LVDS+HDMI,HDMI+VGA Synchronous or asynchronous display | |

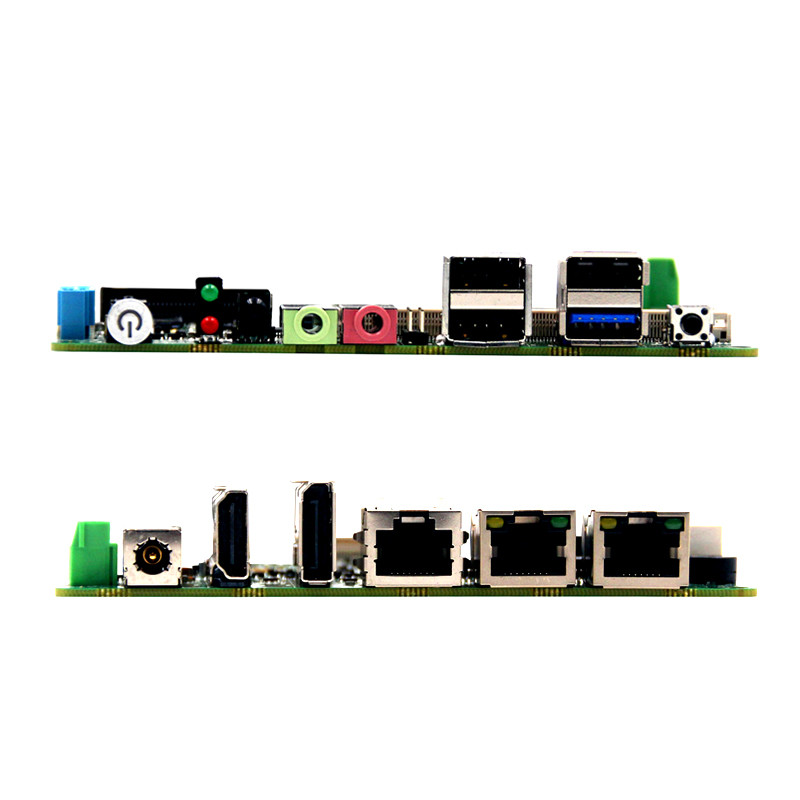

| I/O back panel | Port |
1*DC 1*VGA 1*HDMI 2*LAN 1*LINE OUT 1*MIC IN 3*USB2.0 1*USB3.0 1*COM port(RJ45port) 1*Power indicator and hard disk indicator 1*Reset button 1*Fast switch button with indicator |
| Internet | controller | 2*Intel I211 Gigabit Lan Port,RJ45 Port |
| Audio | controller | Raychem HD ALC662 audio decoding (left and right channel + microphone) |
| Super I/O | controller | ITE8613 |
| hardware controller | Watchdog timer | 0-255 seconds,Provide a watchdog routine |
| Cooler | Aluminum heatsink with Fan(Fanless) | |
| output / input | USB |
3*USB2.0 1*USB3.0 Max support +5V/1A |
| Com | 1*RS-232 | |
| GPIO | 8bit, providing routines, freely defined input/output, 3.3V@24mA level | |
| Expansion Wire | Mini-PCle | 1*Mini-PCIe socket,only support PCIe equipment |
| storage | SATA | 1*standard SATAII Port, Maximum transfer rate 3Gb/s |
| M-SATA | 1* M-SATA Scoket,support SANDISK protocol, Maximum transfer rate 3Gb/s | |
| EMMC | 32/64/128G(optional) | |
| Power Supply | Power Type | Single input DC power supply ,DC12V5A/7A |
| Power consumption | 20W | |
| Work environment | Working temperature | -20°C~60°C (-32°F~140°F) |
| Storage temperature | -40°C~85°C (-104°F~185°F ) | |
| Working humidity | 10%~90% (non-condensing) | |
| Storage humidity | 10%~90% (non-condensing) | |
| System support | Windows7 Windows8.1 Windows10 Linux When using EMMC to install the system J1900, J1800 CPU only supports Windows8.1 Windows10, | |
| E3845 CPU supports Windows8.1 Windows10 Linux | ||
| Measure | Size | 120mm x 120 mm |
| Weight | 0.5KG |
About RMA
1--Warranty 1 year
2--If buyer confirm the item can`t work well due to the non-artificial factors,buyer can return it to our company. Buyers should keep it with proper packaging.
3--Buyers are responsible for return to china freight cost .
4--Seller will repair item and ship the repaired one to buyer,seller will pay the shipping cost from China to Buyer address.
5--Please contact us firstly before returning defective goods by email.
