| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | NANO-P1312HD-BT-J1900 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Intel® Celeron® Bay Trail J1900 Quad Core 4 Threads 2.00~2.42GHz | RAM: | Singel Channel DDR3L 1066/1333MHz Up To 8G |
|---|---|---|---|
| Ethernet: | 2*Gigabit LAN | Display: | HDMI+DP |
| COM: | 1*RJ45 COM | Size: | 120 * 120 Mm |
| Power: | DC12-19V | ||
| Highlight: | J1900 desktop mainboard,HDMI DP desktop mainboard |
||
Quad core J1900 NANO itx mainboard RJ45 com console 2 LAN HDMI DP display industrial motherboard for mini desktop pc
Key features
Integrated Intel® Celeron® Bay Trail J1900 quad core 4 threads 2.00~2.42GHz Processor
Singel channel DDR3L 1066/1333MHz up to 8G
Support HDMI+DP sync or asynchronous display
1*DP
1*HDMI
1*RJ45 port RS-232
2*Gigabit LAN
3*USB2.0
1*USB3.0
1*IR infrared receiving port
1* standard SATAII
1* M-SATA Scoket
Onboard EMMC 32/64/128G(Optional)
Single-input DC power supply, DC12-19V
size: 120 * 120 mm
Specifications
| Processor | CPU |
Integrated Intel® Celeron® Bay Trail J1900 quad core 4 threads 2.00~2.42GHz Processor
|
| CPU package | BGA | |
| Chipset | Support Baytrail-I/D/M series Processor | |
| BIOS | EFI BIOS | |
| Memory | Technology framework | Singel channel DDR3L 1066/1333MHz |
| Capacity | Max support 8GB Ram | |
| Socket | DDR3 SODIMM 204 Socket | |
| Video | Graphic controller | Intel HD Graphics |
| DP | DP support Resolution maximum 2560*1600 | |
| HDMI | HDMI support Resolution maximum 1920x1080 | |
| Dual display | HDMI+DP sync or asynchronous display | |

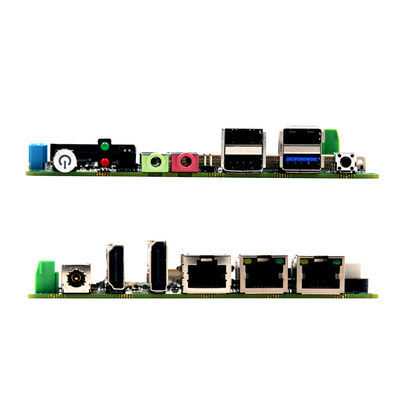

| I/O panel | Ports | 1*DP 1*HDMI 1*USB3.0 3*USB2.0 2*LAN 1*Quick Power On button with indicator 1*Restart button 1*DC 1*COM口 1*LINE OUT 1*MIC 1*Power |
| indicator 1*Hard disk indicator | ||
| Network | Controller | 2*Intel I211AT high performance Gigabit Ethernet Port,RJ45 ports |
| HARDWARE MONITORING | Watchdog timer | 0-255sec, sample code optional |
| Cooler | Aluminum fanless heat sink | |
| Input/Output Interface | USB |
3*USB2.0 1*USB3.0 Max support +5V/1A |
| Serial Ports | 1*RJ45 port RS-232 | |
| Infrared | 1*IR infrared receiving port | |
| Audio | 1*LINE OUT 1*MIC | |
| SPDIF | 1*3pin | |
| Extended bus | Mini-PCle | 1*Mini-PCIe slot ,support PCIe singal equipment |
| Storage | SATA | 1* Standard SATAII connector, Maximum transmission rate 3Gb/s |
| M-SATA | 1*Mini-PCIe M-SATA Scoket,support SANDISK Protocol,Maximum transmission rate 3Gb/s. | |
| EMMC | Support 32/64/128G(Optional) | |
| Power Supply | Power Type | Single-input DC power supply,DC12-19V,+/-5% |
| Working environment | Working temperature | -20℃ ~ +60℃ |
| Storage temperature | -40℃ ~ +85℃ | |
| Working humidity | 0% ~ 90%(non-condensing) | |
| Storage humidity | 0% ~ 90%(non-condensing) | |
| System support | Windows7 Windows8.1 Windows10 Linux When using EMMC to install the system J1900, J1800 CPU only supports Windows8.1 Windows10, | |
| E3845 CPU supports Windows8.1 Windows10 Linux | ||
| Dimension | Size | 120 x 120 mm |
| Weight | 0.5KG |
