| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | EC-P6802DW-CDV |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Intel® Atom D2550 Dual Core Four Threads 1.86GHz Processor | RAM: | Onboard 1333 DDR3 2GB/4GB |
|---|---|---|---|
| Display: | 1*VGA, 1*LVDS, 1*HDMI | Ethernet: | 2*Gigabit LAN |
| COM: | 6*COM | USE: | 8*USB 2.0 |
| Power: | Wide Voltage 9-36V | Size: | 165 X 117 Mm |
| Highlight: | D2550 Mini Pc Motherboard,2GB Mini Pc Motherboard,2 LAN Mini Pc Motherboard |
||

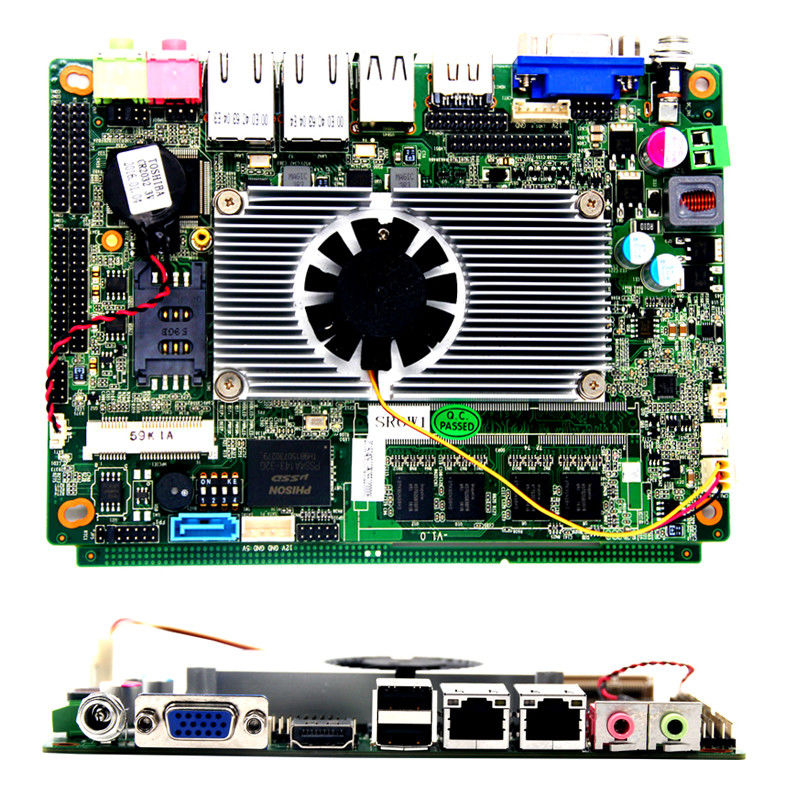

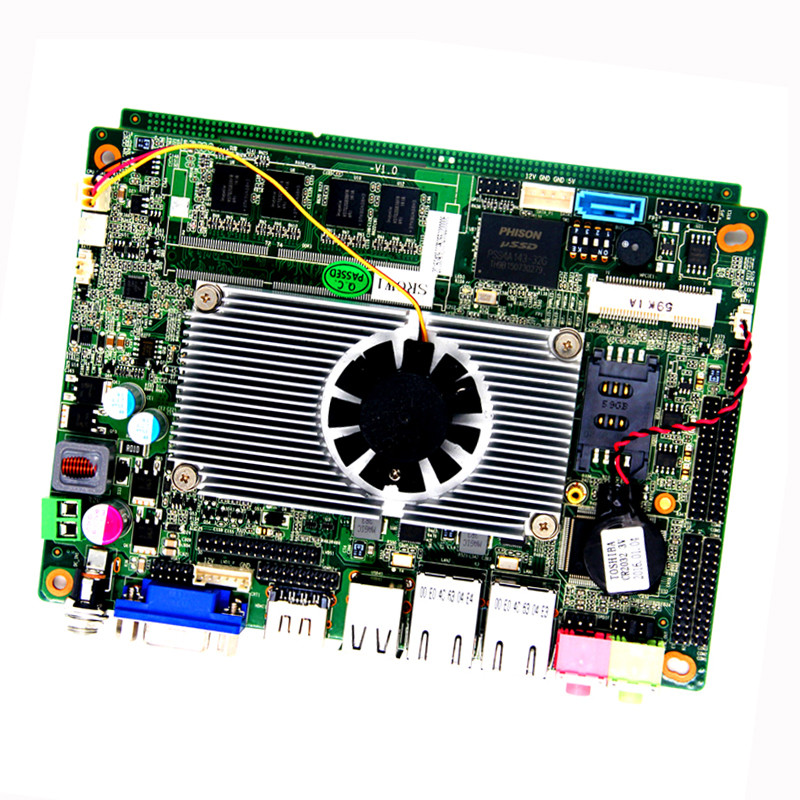

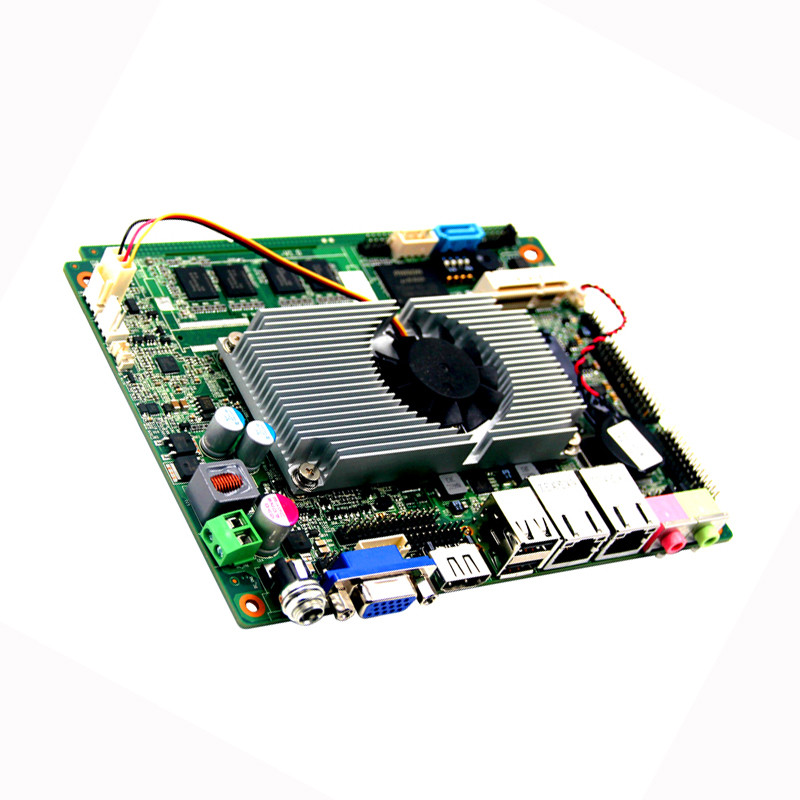

Atom D2550 3.5" industrial laptop motherboard onboard 2GB DDR3 2 LAN 6 COM 9-36V power
Notice:
When you inquiry , you can choose the following Model :
EC-P6802DW-CDV-D2550 , Integrated Intel Atom® Processor Cedarview D2550 dual core 4 threads 1.86Ghz
EC-P6802DW-CDV-D2700 , Integrated Intel Atom® Processor Cedarview D2700 dual core 4 threads 2.13Ghz
EC-P6802DW-CDV-N2600 , Integrated Intel Atom ® Processor Cedarview N2600 dual core 4 threads 1.6Ghz
EC-P6802DW-CDV-N2800, Integrated Intel Atom® Processor Cedarview N2800 dual core 4 threads 1.86Ghz
Atom D2550 cpu 3.5 inch industrial motherboard onboard 2GB DDR3 dual LAN 6 COM Wide voltage 9-36V power supply
Key features
Integrated Intel® Atom D2550 dual core four threads 1.86GHz Processor
Onboard 1333Mhz DDR3 2GB/4GB memory
Build-in Intel GMA3650 Graphics Core
Support 1*VGA, 1*LVDS, 1*HDMI
Support Double display support
6*COM, 2*Gigabit LAN, 8*USB2.0,
2*SATA2.0, 1*mSATA
Onboard HD ALC662 chipset
Onboard 3G/4G SIM socket
Wide voltage 9-36V power supply
Size: 165 x 117 mm
Specifications
| Processor | CPU | Intel® Atom D2550/N2600/N2800 dual core processors |
| CPU Package | BGA559 | |
| Chipset | Intel NM10 Express Chipset (Intel CG82NM10 PCH) | |
| BIOS | AMI EMI 16MB SMT/DIP-SPI Flash ROM | |
| RAM | Technology framework | Signal Channel DDR3 1066/1333MHz,maximum up to 4GB. |
| Capacity | 2GB/4GB | |
| Video | Graphic controller | Intel GMA3650 Graphics Core(DVMT Max 384MB) |
| LVDS | 24bit Single Channel LVDS | |
| HDMI | Resolution maximum:1366*768 | |
| VGA | Resolution maximum:1366*768 | |
| Double display support | VGA+HDMI/VGA+LVDS/LVDS+HDMI, Synchronous or asynchronous display | |
| Network | Controller | 2*RTL8111EL LAN,support RTL/PXE diskless booting |
| Radio | Controller | Realtek HD ALC662 chipset,provide 6 channels output(line-in,line-out,Mic) |
| Hardware monitor | Watchdog & Timer | 0~255 timer (Watchdog code optional) |
| Cooler | Aluminum alloy heat sink with fan | |
| Input/Output Interface | USB | 2*USB2.0 (compatible USB1.1) 6*USB2.0, Max. Current supported 5V/1A |
| Series | 5*RS232 ,1*RS232/485 optional, RS485 supported automatic flow control | |
| PS/2 | 1*PS/2 expansion header | |
| GPIO | 8bit (4pin in/4pin out)/ 3.3V@24mA / Sample code optional/Free definition of input/output | |
| Extended bus | Mini-PCle | 1*miniPCIE socket ,supported PCIE and USB device |
| SMBUS | ||
| Storage | SATA | 2*SATA2.0 Maximum transmission rate 3Gb/s |
| M-SATA | 1*mSATA socket ,Supported SANDISK protocol ,Max. transmission rate 3Gb/s | |
| Power Supply | Power type | Wide voltage 9-36V power supply |
| Working Environment | Working temperature | -20℃ ~ +60℃ |
| Storge temperature | -40℃ ~ +85℃ | |
| Working humidity | 0% ~ 90% non-condensing | |
| Storge humidity | 0% ~ 90% non-condensing | |
| Support sysytem | Windows7 Windows 10 Linux | |
| Size | Size | 165 x 117 mm |
| Weight | 0.5KG |
Applications:
Industrial production control
Industrial manufacture
Mini pc motherboard
POS machine motherboard
Queuing machine motherboard
Vending machine main board
Cashier computer motherboard
Bank ATM mainboard
Kiosk motherboard
Smart medicine
Business intelligence terminal
Artificial intelligence
Internet of Things
