| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | EC-P6801D-D525 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Intel® Atom® D525 Dual Core Four Threads 1.8GHz Processor | RAM: | Onboard DDR3 2GB Memory |
|---|---|---|---|
| Display: | LVDS+VGA | Ethernet: | 1*Gigabit LAN |
| COM: | 6*COM (5*RS-232, 1*RS-485/RS-422) | USE: | 8*USB 2.0 |
| Power: | 12V-DC | Size: | 154.8 X 117.4 Mm |

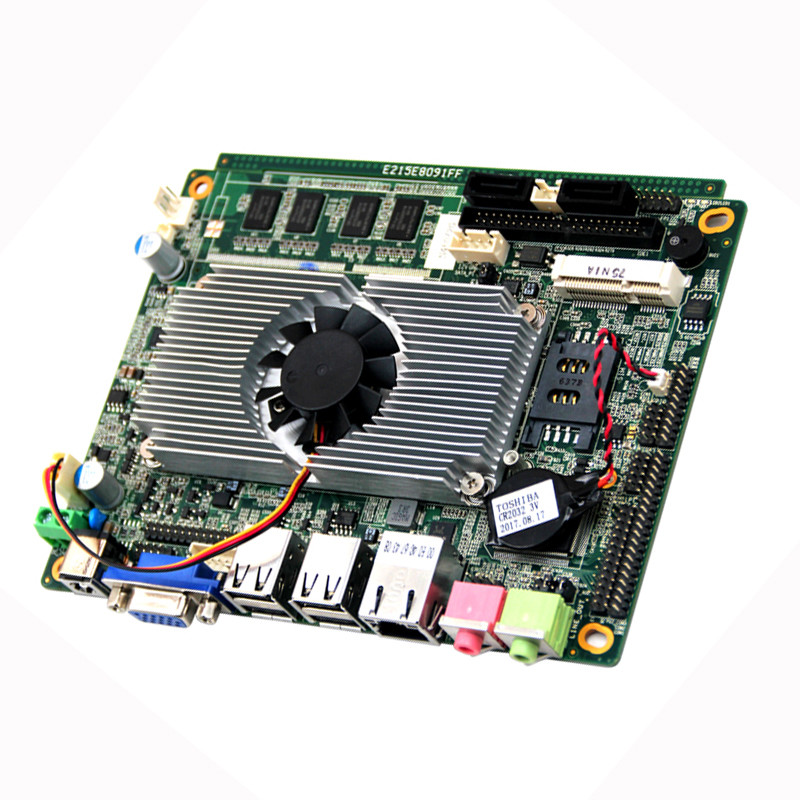

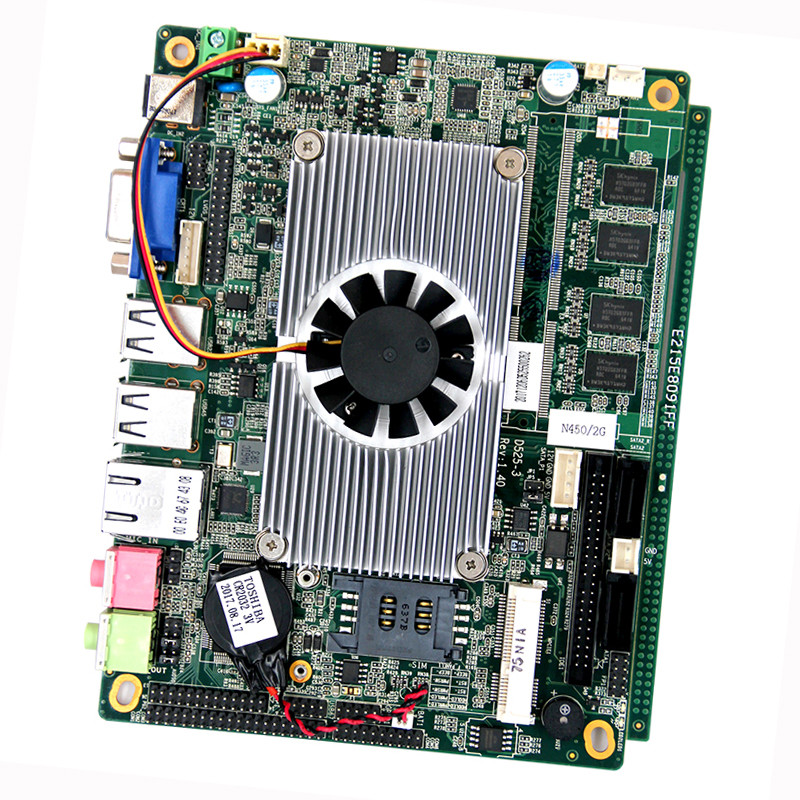

3.5 inch Intel® Atom® dual core D525 integrated DDR3 2GB memory 6 COM industrial mainboard
Key features
Specifications
| Processor | CPU | Intel Atom D525/N550/N450 CPU |
| CPU Package | BGA | |
| Chipset | ICH8 chipset | |
| BIOS | EFI BIOS | |
| RAM | Technical architecture | Single Channel DDR3 1066/1333/1600MHz |
| Capacity | Onboard 2GB DDR3 | |
| Video | Graphic controller | Intel GMA3150 |
| Dual LVDS | Onboard 18bit single channel LVDS connector(1366*768) | |
| VGA | VGA maximum resolution(2048*1536) | |
| Dual display support | LVDS+VGA Synchronous or asynchronous display | |
| Rear Panel I/O | Ports | 1*VGA |
| 1*LAN | ||
| 4*USB | ||
| 1*MIC-OUT/LINE-OUT | ||
| 1*DC | ||
| Network | Controller | 1*RTL8111E-V 1000M LAN,RJ45 port |
| Audio | Controller | Onboard Realtek HD ALC662 chipset,provide 6 channels output(line-in,line-out,Mic) |
| Super I/O | Controller | NCT6106D |
| Hardware Monitor | Watchdog-Timer | 0~255 timer |
| Cooler | Aluminum heat sink(fan or fanless) | |
| Input/Output interfaces | USB | 8*USB2.0 ports,Max. supported 5V/1A |
| Serial port | 6*COM expansion headers (support 5*RS232/1* 488/485),RS485 supported automatic flow control | |
| GPIO | 8*GPIO expansion header(8 bit),3.3V@24mA electrical level | |
| Expansion Sockets | Mini-PCle | 1*Mini-PCIe socket,support PCIe,USB device |
| Storage | SATA | 2*SATAII interface(Maximum transmission rate to 3gb/s) |
| M-SATA | 1*Mini-PCIe M-SATA,Socket,support,SANDISK protocol(Maximum transmission rate to 3gb/s) | |
| Power Supply | Power Type | Single input DC power supply,12V-DC,+/-5% |
| Power Consumption | 15W | |
| working environment | Operating temperature | -20℃ ~ +60℃ |
| storage temperature | -40℃ ~ +85℃ | |
| Working humidity | 0% ~ 90% relative humidity, non-condensing | |
| Storage humidity | 0% ~ 90% relative humidity, non-condensing | |
| Size | 154.8 x 117.4 mm |
