| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | EC-P6801D-AP |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Apollo Lake Series Processor (N3350/N4200/J4205) | RAM: | Onboard DDR3 2GB/4GB Ram |
|---|---|---|---|
| Display: | LVDS / Edp / VGA / HDMI, LVDS/eDP+VGA+HDMI | Ethernet: | 1*Gigabit LAN |
| COM: | 6*COM (5*RS-232, 1*RS-485/RS-422) | USE: | 8*USB 2.0 |
| Power: | 8-36V Power Supply | Size: | 150*115 Mm |
| Highlight: | 3.5" Motherboard 4GB Ram,3.5" Motherboard N3350,N4200 Motherboard 4GB Ram |
||

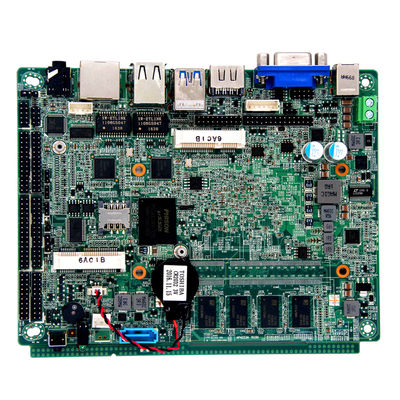

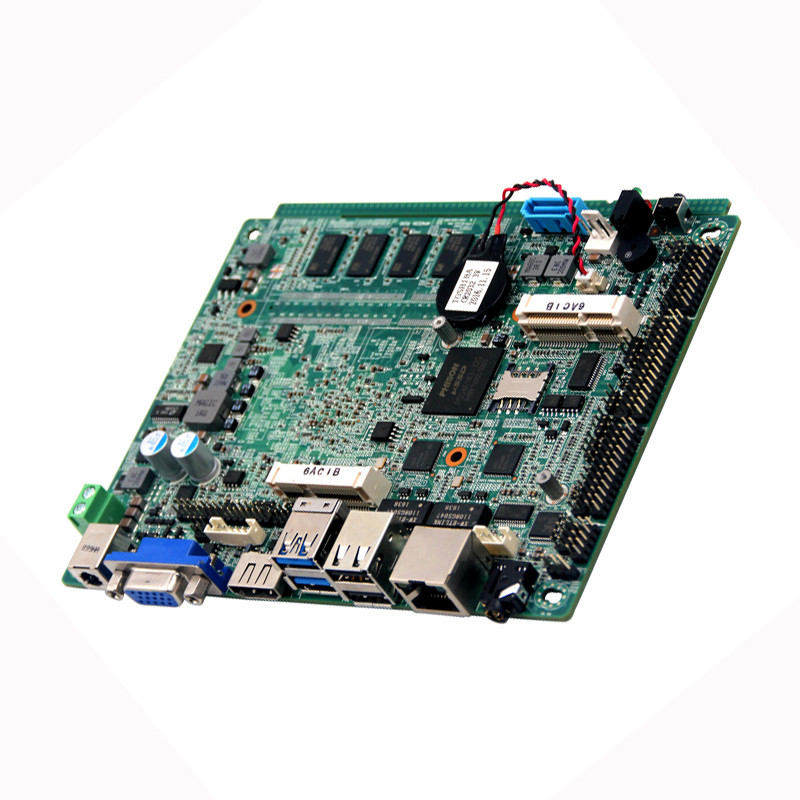

Apollo Lake N3350/N4200/J4205 CPU 3.5" Industrial X86 Motherboard onboard 4GB Ram
Notice:
When you inquiry , you can choose the following Model :
EC-P6801D-AP-E3940 , Integrated Intel Atom® Processor Apollo Lake E3940 quad core 4 threads 1.6~1.8Ghz
EC-P6801D-AP-J3455 , Integrated Intel Celeron® Processor Apollo Lake J3455 quad core 4 threads 1.5~2.3Ghz
EC-P6801D-AP-J4205 , Integrated Intel Pentium® Processor Apollo Lake J4205 quad core 4 threads 1.5~2.6Ghz
EC-P6801D-AP-N3350 , Integrated Intel Celeron® Processor Apollo Lake N3350 dual core 2 threads 1.1~2.4Ghz
EC-P6801D-AP-N3450 , Integrated Intel Celeron® Processor Apollo Lake N3450 quad core 4 threads 1.1~2.2Ghz
EC-P6801D-AP-N4200 , Integrated Intel Pentium® Processor Apollo Lake N4200 quad core 4 threads 1.1~2.5Ghz
Apollo Lake N3350/N4200/J4205 CPU 3.5" Embedded Industrial X86 Motherboard onboard 4GB Ram
Key features
Integrated Apollo lake series processor (N3350/N4200/J4205)
Onboard DDR3 2GB/4GB Ram
Onboard 32/64/128G SSD (optional)
Support LVDS / Edp / VGA / HDMI Display
Support double display synchronous or asynchronous display
Support triple LVDS/eDP+VGA+HDMI Asynchronism or Synchronism
1*Gigabit Lan
8*USB 2.0
5*RS-232,1*RS-485/RS-422
1*Mini SATA
1*SATAIII
1*GPIO header
Aluminum heat sink (fan or fanless)
Single DC wide range voltage 8-36V power supply
Size: 150*115mm (3.5 inch motherboard )
Specifications
| Processor | CPU |
Apollo lake series processor (N3350/N4200/J4205) |
| CPU Package | BGA | |
| CHIPSET | Apollo lake SOC chipset | |
| RAM | Technology Architecture | Single channel DDR3 1066/1333/1600/1866MHz |
| Capacity | 2GB / 4GB DDR3 | |
| RAM slot | 1* RAM slot optional max. Support 8Gb RAM | |
| Graphic controller | Intel HD Graphics | |
| Video | ||
| LVDS or EDP | LVDS support dual channel 8bit,Max. Resolutions: 1920*1200 | |
| (Optional) | EDP Max. Resolutions 4096*2160 | |
| VGA | Max. Resolutions :2048x1536 | |
| HDM(I) | Max. Resolutions:4096*2160 | |
| Double Display | VGA+HDM(I) VGA+LVDS LVDS+HDM(I) Asynchronism or Synchronism | |
| Triple Display | Support triple LVDS+VGA+HDM(I) Asynchronism or Synchronism | |
| Storage | SATA | 1*standard SATAIII slot,maximum transfer speed is 6GB/s |
| M-SATA | 1* M-SATA Scoket, Support SANDISK protocol, maximum speed is 6Gb/s | |
| SSD | 32/64/128G (onboard optional) | |

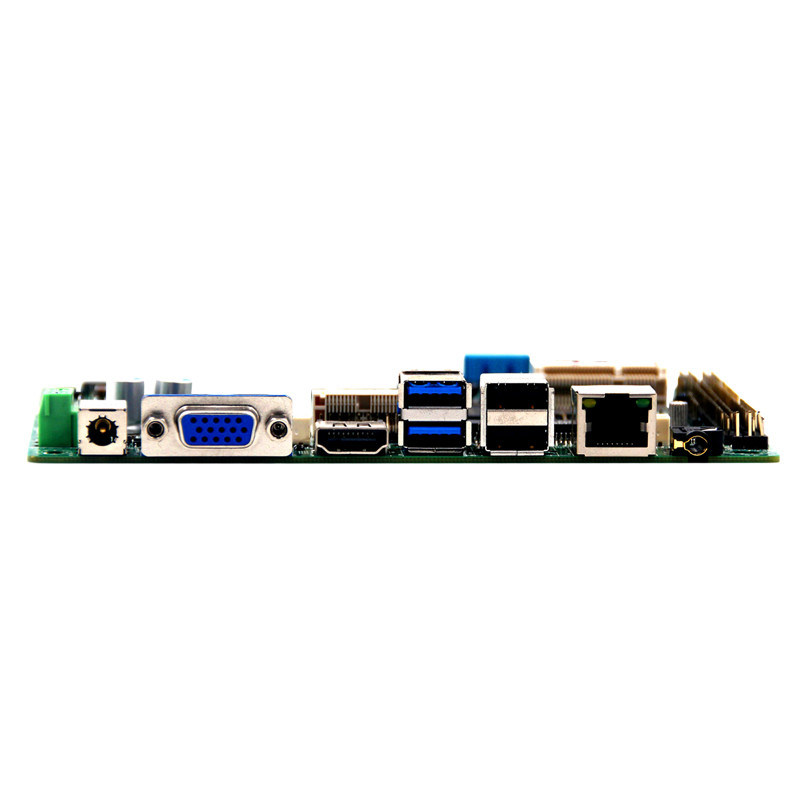

| I/O | Port | 1*VGA 1*HDM(I) 1*USB3.0 3*USB2.0 1*RJ45 1000M LAN 1*LINE OUT |
| Network | Controller | 1* Intel I211AT 1000M LAN (dual LAN or 4* USB optional) |
| Audio | Controller | HD ALC662 Audio controller (Left and Right channel + Mic) |
| Super I/O | Controller | IT8786E |
| I/O | USB | 8*USB2.0,Max. Current supported +5V/1A |
| COM | 5*RS-232, 1*RS422/485 optional,RS485 support auto flow control | |
| LPT | 1*LPT pin | |
| PS/2 | 1*PS/2 pin | |
| Touch panel | Support resistive touch panel 4/5/8 wires | |
| GPIO | 4in/4out,Sample code optional and free definition input or output pins support 3.3V@24mA current | |
| Expansion Bus | Mini-PCle | 1*mini PCE slot ,support USB and PCIE device |
| BIOS | EFI BIOS | |
| Power Supply | Power Type | 8-36V wide range voltage inputs |
| Power Consumption | 20W | |
| Watch Dog | Timer | 0-255 sec , sample code optional |
| Cooler | Aluminum heatsink with Fan or without Fan |
