| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | EC-P6622DB-7TH-3865U |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Celeron® 3865U Dual Cores 2 Threads 1.8GHz Processor | RAM: | Integrated 2GB/4GB/8G DDR4 |
|---|---|---|---|
| Display: | LVDS + VGA, LVDS+HDMI, HDMI+VGA, LVDS+VGA+HDMI (4K) | Ethernet: | 2*Gigabit LAN |
| COM: | 6*COM | USB: | 6*USB 2.0, 2*USB 3.0 |
| Power: | DC 12V | Size: | 154.8 X 117.4 Mm |
| Highlight: | 3865U 3.5 And 4 Inch Motherboard,3.5 And 4 Inch Motherboard Mini,4GB Mini PC Mainboard |
||

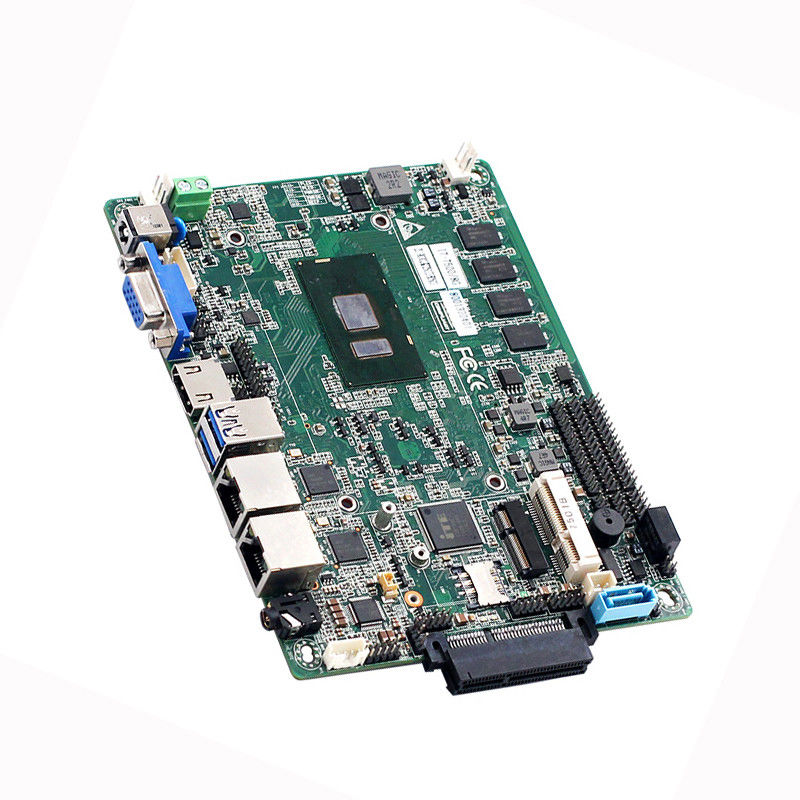

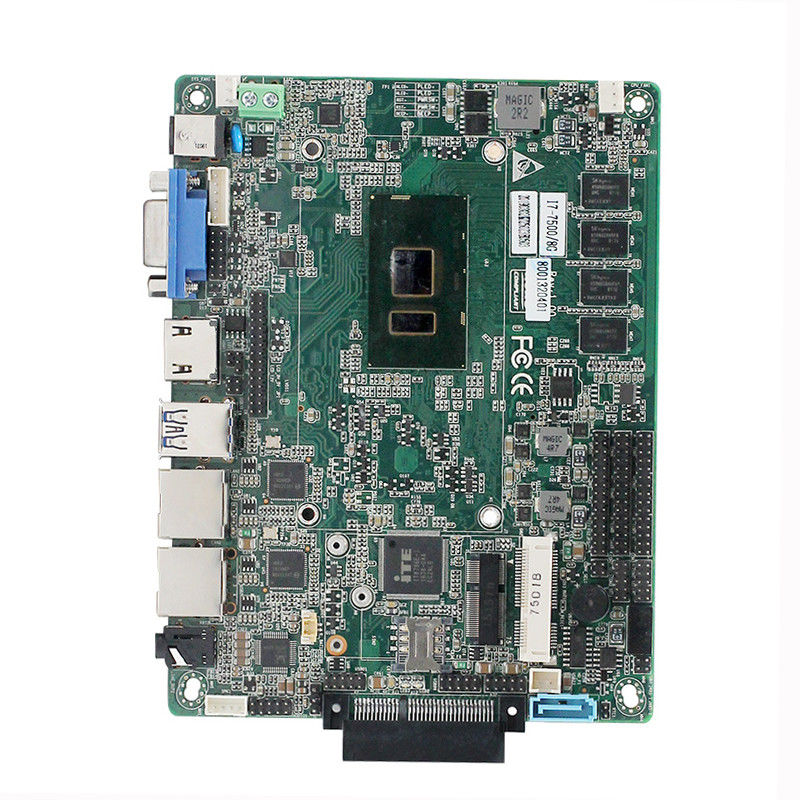

Celeron® 3865U integrated 4GB DDR4 pfsense appliance mini pc mainboard 6 com 2 lan with PCIE X4
Key features
Integrated Celeron® Kaby Lake 3865U dual cores 2 threads 1.8GHz Processor
Single channel DDR4 2133Mhz up to 16GB
Integration 2GB/4GB/8G DDR4
Integrated Intel® HD Graphics 610
Support LVDS + VGA, LVDS+HDMI, HDMI+VGA Synchronous or asynchronous display
Support LVDS VGA HDMI three-screen synchronous or asynchronous display
1* PCIe X4
6*COM
2*Gigabit LAN
2*USB3.0
6*USB2.0
1*SATA3.0
1*Mini-PCIe M-SATA Scoket
Onboard Realtek HD ALC662
Single input DC power supply, DC12V 5A/7A
Size: 154.8 x 117.4 mm
Specifications
| Processor | CPU | Integrated Celeron® 3865U dual cores 2 threads 1.8GHz Processor |
| CPU Package | BGA | |
| Chipset | Intel® Kaby Lake--U processor SOC | |
| BIOS | EFI BIOS | |
| RAM | Technology framework | Dual Channel DDR4 2133Mhz; |
| Capacity | Integrated 2GB/4GB/8G DDR4 | |
| Socket | 1 slot can be added,maximum up to 16GB | |
| Video | Graphic controller | Integrated Intel® HD Graphics 610 |
| Dual LVDS and EDP | Support 24 bit output,LVD maximum resolution 1920 x 1200 EDP maximum resolution 4096*2304(optional) | |
| VGA | VGA maximum resolution 2048x1536 | |
| HDMI | maximum resolution(HDMI1.4)4096*2304@30HZ support 4K display | |
| Double display support | LVDS + VGA,LVDS+HDMI,HDMI+VGA Synchronous or asynchronous display | |
| Three display | Support LVDS+VGA+HDMI Three-screen sync or asynchronous display | |
| I/O panel | ports | 1*VGA,1*HDMI,2*LAN,2*USB3.0 1*MIC-OUT/LINE-OUT 1*DC |
| Network | Controller | 2* Intel I211AT(When the I/O interface is 4 USB, there is only 1 Intel I211AT NIC) |
| Audio | Controller | Realtek ALC662 HD AUDIO(Left and right channel + microphone) |
| Super I/O | Controller | ITE8786E |
| Hardware monitor | Watchdog & Timer | 0~255 timer (Watchdog code optional) |
| Cooler | Aluminum alloy heat sink with fan(Supports automatic and manual fan speed adjustment) | |
| Input/Output Interface | USB |
2*USB3.0 compatible USB2.0 / 1.1 6*USB2.0,Max. Current supported +5V/1.5A |
| Serial ports | 6*COM ,COM1,2,4 can be selected as RS232 or RS485 by jumper cap and BIOS. COM3 can be selected as RS232 or RS422/RS485 through jump cap and BIOS, COM5, COM6 is RS232 (COM1 RS485 with optocoupler isolation) | |
| PS/2 | 1*PS/2 pin header | |
| GPIO | 8-bit, provides routines, freely defined input/output, 3.3V@24mA level | |
| Extended bus | PCIe X4 | 1* PCIe X4 |
| Mini-PCle | 1*miniPCIE socket ,supported PCIE and USB device | |
| NGFF | 1 *NGFF (KEY E) | |
| Storage | SATA | 1*SATAIII interface(Maximum transmission rate to 6gb/s) |
| M-SATA | 1*M-SATA Socket,support SANDISK protocol(Maximum transmission rate to 6gb/s) | |
| Power Supply | Power Type | DC 12V power supply |
| System | System | Windows7 Windows10 Linux |
| working environment | Operating temperature | -20℃ ~ +60℃ |
| storage temperature | -40℃ ~ +85℃ | |
| Working humidity | 0% ~ 90% relative humidity, no condensation | |
| Storage humidity | 0% ~ 90% relative humidity, no condensation | |
| OS system | Windows 10 Linux | |
| physical dimension | size | 154.8 x 117.4 mm |
| weight | 0.5KG |
