| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | EC-P6622D-2TH |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Intel® I5-2410M Dual Core 4 Threads 2.3Ghz Processor | RAM: | Onboard DDR3 2GB/4GB Ram |
|---|---|---|---|
| Display: | LVDS / VGA / HDMI | Ethernet: | 2*Gigabit LAN |
| COM: | 6*COM (5*RS-232, 1*RS-485/RS-422) | USB: | 6*USB 2.0, 2*USB 3.0 |
| Power: | 12V-DC | Size: | 155*115 Mm |
| Highlight: | Mini 3.5 And 4 Inch Motherboard,Industrial 3.5 And 4 Inch Motherboard |
||

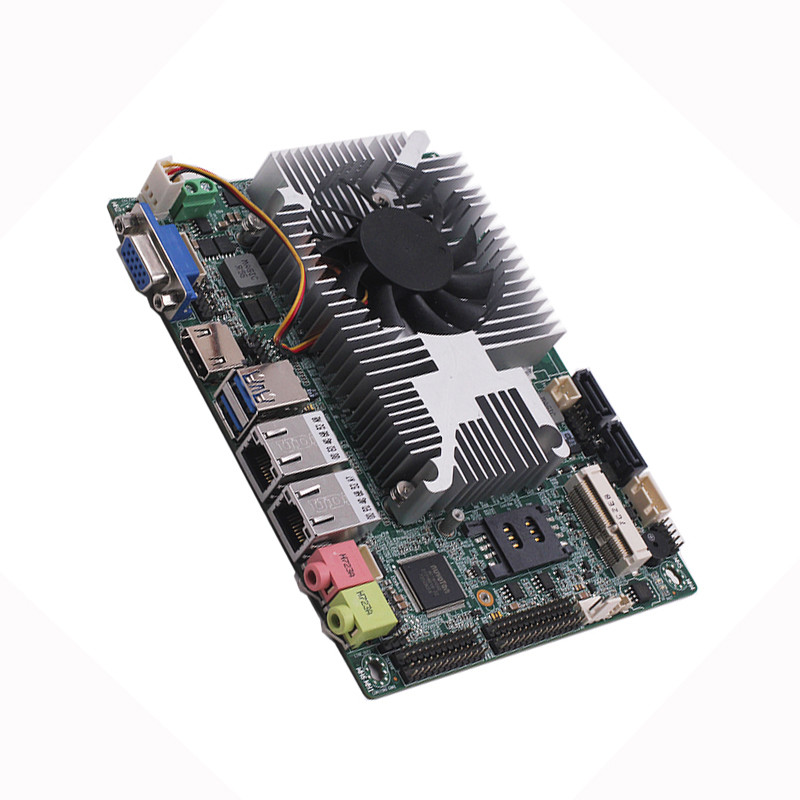

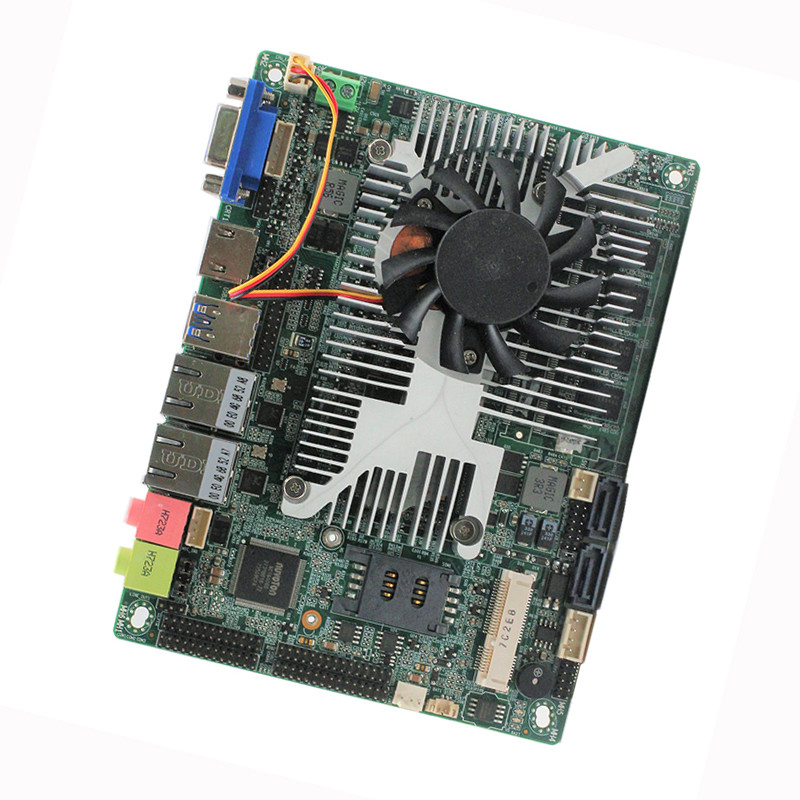

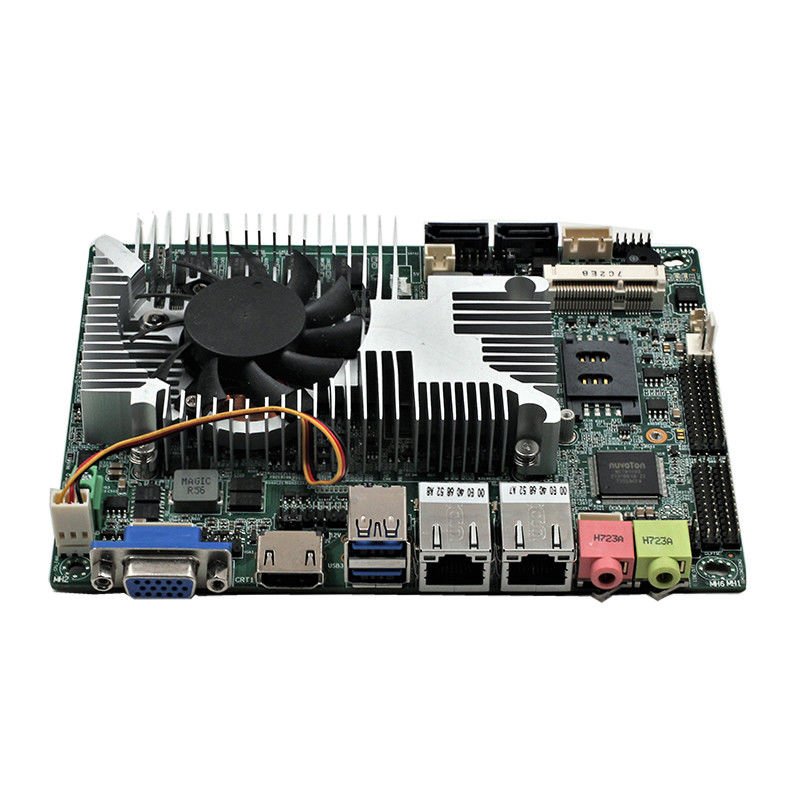

Sandy Bridge I5-2410M i7-2620M industrial mini pc Motherboard With 4GB Ram 6 COM 2 LAN
Notice :
When you inquiry , you can choose the following Model :
EC-P6622D-2TH-I5 Integrated Intel® i5-2410M Dual core 4 threads 2.3~2.9Ghz processor
EC-P6622D-2TH-I7 Integrated Intel® i7-2620M Dual core 4 threads 2.7~3.4Ghz processor
Sandy Bridge I5-2410M industrial Motherboard With 4GB Ram 6COM 2LAN mini pc mainboard
Key features
Integrated Intel® i5-2410M Dual core 4 threads 2.3~2.9Ghz processor
Onboard DDR3 2GB/4GB Ram
Support LVDS / VGA / HDMI Display
Support double display synchronous or asynchronous display
2*Gigabit Lan
6*USB 2.0, 2*USB 3.0
5*RS-232, 1*RS-485/RS-422
1*Mini SATA
2*SATA3.0
1*GPIO header
Aluminum heat sink (fan)
Single input DC power supply, 12V-DC
Size: 155*115 mm (3.5 inch motherboard )
Specifications
| Processor | CPU |
Integrated Intel® i5-2410M Dual core 4 threads 2.3Ghz processor Max Turbo Frequency 2.9Ghz |
| CPU Package | BGA | |
| Chipset | Intel® HM77/QM77 Express Chipset Optional. | |
| BIOS | UEFI BIOS | |
| Ram | Technical architecture | DDR3 memory,1066/1333/1600MHz. |
| Capacity | Onboard 2GB /4GB Ram | |
| Video | Graphic controller | Intel HD Graphics 3000/4000 (CPU Integrated ) |
| Dual LVDS | Support dual channel 24bit LVDS connector | |
| HDMI | Resolution maximum:1920*1200 | |
| Double display support | LVDS+VGA,LVDS+HDMI,HDMI+VGA,Synchronous or asynchronous display | |
| Rear Panel I/O | Ports |
1*HDMI 1*VGA port 2*Lan 2*USB 3.0 port 1*Audio I/O interfaces (Line_out,Mic_in) |
| Network | Controller | Onboard 2*Gigabit Ethernet,support PXE and Wakeup on LAN. |
| Audio | Controller | Onboard HDA ALC662,provide MIC-IN/LINE-OUT and expansion header. |
| Super I/O | Controller | NCT6106D |
| Hardware Monitor | Watchdog-Timer | 0~255 timer |
| Cooler | Aluminum heat sink(fan) | |
| Input/Output interfaces | USB | 8*USB(2*USB 3.0 port 6*USB 2.0 expansion header),Max. supported 5V/1A |
| Serial port | 6*COM expansion headers (support 5* RS232/1*422/485) | |
| PS/2 | 1*PS/2 | |
| GPIO | 8*GPIO expansion header(8 bit),3.3V@24mA electrical level | |
| Expansion Sockets | Mini-PCle | 1*Mini-PCIE socket for WIFI/3G |
| SIM | 1*SIM card slot for 3G | |
| Storage | SATA | 2*SATA3.0 |
| M-SATA | 1*Mini SATA socket for SSD | |
| Power supply | Power Type | Single input DC power supply,12V-DC,+/-5% |
| Power Consumption | 20W |
About RMA
1--Warranty 1 year
2--If buyer confirm the item can`t work well due to the non-artificial factors,buyer can return it to our company. Buyers should keep it with proper packaging.
3--Buyers are responsible for return to china freight cost .
4--Seller will repair item and ship the repaired one to buyer,seller will pay the shipping cost from China to Buyer address.
5--Please contact us firstly before returning defective goods by email.
