| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | EC-P6622D-4THU |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Intel® Haswell I5-4200U Dual Cores 4 Threads 1.6GHz Processor | RAM: | Integrated 2GB/4GB DDR3 |
|---|---|---|---|
| Display: | 1*VGA, 1*HDMI, 1*LVDS (2ch, 24bit, 30pin) | Ethernet: | 2*Gigabit LAN |
| COM: | 6*COM | USB: | 2*USB3.0, 6*USB2.0 |
| Power: | DC12V 5A/7A | Size: | 154.8 X 117.4 Mm |
| Highlight: | 3.5" Industrial Pc Motherboards,4GB Industrial Pc Motherboards,2LAN motherboard with fan |
||

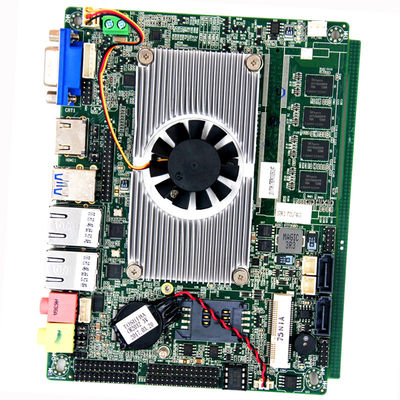

Haswell i5-4200U 3.5" Industrial Motherboard 6 COM 2 LAN 4GB RAM with Aluminum Fan
Notice :
When you inquiry , you can choose the following Model :
EC-P6622D-4THU-I3 Integrated Intel® Haswell i3-4010U dual cores 4 threads 1.7GHz Processor
EC-P6622D-4THU-I5 Integrated Intel® Haswell i5-4200U dual cores 4 threads 1.6~2.6GHz Processor
EC-P6622D-4THU-I7 Integrated Intel® Haswell i7-4500U dual cores 4 threads 1.8~3.0GHz Processor
Haswell i5-4200U 3.5 inch 6 Serial ports 2 Gigabit lan Integrated 4GB ram Industrial Motherboard with Aluminum Alloy Heatsink Fan
Key features
Integrated Intel® Haswell i5-4200U dual cores 4 threads 1.6~2.6GHz Processor
Integrated 2GB/4GB DDR3
Signal Channel DDR3 1066/1333/1600MHz, maximum up to 16GB
Integrated Intel® HD Graphics 4400
1*VGA, 1*HDMI, 1*LVDS (2ch, 24bit, 30pin)
6*COM
2*Gigabit LAN
2*USB3.0
6*USB2.0,
2*SATA2.0
1*M-SATA socket
Onboard Realtek HD ALC662
Supported power-on rebooting function
Single input DC power supply, DC12V 5A/7A
Size: 154.8 x 117.4 mm
Specifications
| Processor | CPU |
Support INTEL CORE™ Haswell-U i3 4010U/i5 4200U/i7 4500U Integrated Intel® Haswell i5-4200U dual cores 4 threads 1.6GHz Processor Max Turbo Frequency 2.6Ghz |
| CPU Package | BGA1168 | |
| Chipset | INTEL Haswell/Bordwell U SOC | |
| BIOS | EFI BIOS | |
| RAM | Technology framework | Signal Channel DDR3 1066/1333/1600MHz,maximum up to 16GB. |
| Capacity | Onboard 2GB/4GB DDR3L RAM | |
| Video | Graphic controller | Intel® HD Graphics 4400 |
| LVDS | dual channel 18/24bit LVDS,Resolution maximum:1920*1200 | |
| VGA | Resolution maximum:2048*1536 | |
| HDMI | Resolution maximum:1920*1200 | |
| Double display support | VGA+HDMI/VGA+LVDS/LVDS+HDMI, Synchronous or asynchronous display | |
| Network | Controller | RTL8111E-VL,10/100/1000Mbps,2x 1000M RJ45 LAN |
| Audio | Controller | Realtek ALC662 HD AUDIO,Line-out, Mic-in onboard power amplifier(6W 8Ω)SPDIF |
| Super I/O | Controller | NCT6106D |
| Hardware monitor | Watchdog & Timer | 0~255 timer (Watchdog code optional) |
| Cooler | Aluminum alloy heat sink with fan | |
| Input/Output Interface | USB | 2*USB3.0 (compatible USB1.1/2.0) 6*USB2.0, Max. Current supported 5V/1A |
| Serial ports | 5*RS232 ,1*RS232/485 optional, RS485 supported automatic flow control | |
| PS/2 | N/A | |
| GPIO | 8bit (4pin in/4pin out)/ 3.3V@24mA / Sample code optional/Free definition of input/output | |
| Extended bus | mPCle | 1*miniPCIE socket ,supported PCIE and USB device |
| SMBUS | ||
| Storage | SATA | 2*SATA2.0 Maximum transmission rate 3Gb/s |
| M-SATA | 1*mSATA socket ,Supported SANDISK protocol ,Max. transmission rate 3Gb/s | |
| Power Supply | Power Type | Single input DC power supply ,DC12V5A/7A |
| Power consumption | 35W | |
| Work environment | Working temperature | -20°C~60°C (-32°F~140°F) |
| Storage temperature | -40°C~85°C (-104°F~185°F ) | |
| Working humidity | 10%~90% (non-condensing) | |
| Storage humidity | 10%~90% (non-condensing) | |
| Measure | Size | 154.8 x 117.4 mm |
| Weight | 0.5KG |
