| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | EC-P6622D-4THM |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Intel® Haswell I3-4000M Dual Cores 4 Threads 2.4GHz Processor | RAM: | Integrated 2GB/4GB DDR3 |
|---|---|---|---|
| Display: | HDMI, CRT, DP (support 4k) | Ethernet: | 2*Gigabit LAN |
| COM: | 6*COM | USB: | 2*USB3.0, 6*USB2.0 |
| Power: | 8-36V Wide Voltage | Size: | 145 X 102 Mm |
| Highlight: | I3-4000M Mini Pc Motherboard,DDR3 Mini Pc Motherboard,3.5" motherboard pc ddr3 |
||

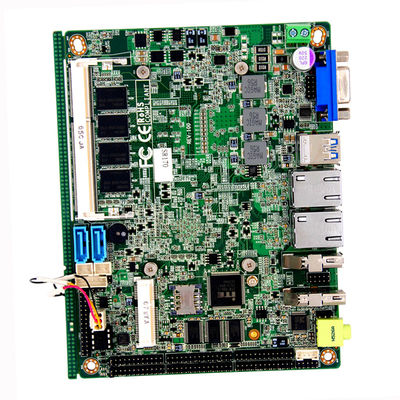

3.5" Haswell i3-4000M mini pc motherboard HM87 2 LAN 6 COM chipset 4GB DDR3 RAM
Notice :
When you inquiry , you can choose the following Model :
EC-P6622D-4THM-I3 Integrated Intel® Haswell i3-4000M dual cores 4 threads 2.4 GHz Processor
EC-P6622D-4THM-I5 Integrated Intel® Haswell i5-4200M dual cores 4 threads 2.5~3.1GHz Processor
EC-P6622D-4THM-I7 Integrated Intel® Haswell i7-4700MQ quad cores 8 threads 2.4~3.4GHz Processor
3.5 inch Haswell i3-4000M integrated 4GB DDR3 RAM HM87 chipset 2 LAN 6 com mini pc motherboard
Key features
Integrated Intel® Haswell i3-4000M dual cores 4 threads 2.4GHz Processor
Integrated 2GB/4GB DDR3
1*RAM slot max 12GB RAM(Optional)
Integrated Intel® HD Graphics 4600
Support HDMI, CRT, DP (HMDI and DP support 4K display output)
Dual channel 24bit LVDS Output;
Support Touch screen(4wire 5wire 8wire)
6*COM
2*Gigabit LAN
2*USB3.0
6*USB2.0,
2*Standard SATA3.0
1*M-SATA socket (SATA3.0)
Onboard Realtek HD ALC662
Support 8-36V wide voltage
Size: 145 x 102 mm
Specifications
| Processor | CPU |
Intel Mobile 4th Haswell-M i3-i5-i7 CPU Integrated Intel® Haswell i3-4000M dual cores 4 threads 2.4GHz Processor
|
| Chipset | QM87/HM86/HM87 | |
| RAM | Technology framework | Single channel DDR3 1066/1333/1600MHz |
| Capacity | Integrated 2GB4GB DDR3 | |
| RAM Socket | 1x RAM slot ,max. 12GB RAM(Optional) | |
| Video | Graphic controller | Intel HD Graphics 4600,Graphic model depends on CPU |
| Dual LVDS | dual channel 24bit LVDS,Resolution maximum:1920*1200 | |
| HDMI | HDMI(1.4)Resolution maximum:3840*2160 | |
| DP | Resolution maximum:3840*2160 | |
| VGA | VGA Resolution maximum:2880*1800 | |
| I/O Panel | I/O ports | 1*VGA,1*HDMI,1*DP,2*LAN,2*USB3.0,1*line-OUT |
| NETWORK | CONTROLLER | 2*Intel I211 1000M LAN,RJ45 PORTS |
| AUDIO | CONTROLLER | Realtek HD ALC662 Audio((line-in,line-out,Mic) |
| Super I/O | CONTROLLER | IT8786E |
| Input/Output Interface | USB | 2*USB3.0 (compatible USB2.0 / 1.1),6*USB2.0 |
| Serial ports | 5*RS-232, 1*RS422/485 optional,RS485 supported automatic flow control | |
| PS/2 | 5×2 2mm Pin Headers | |
| Touch screen | Support Touch Panel(4wire 5wire 8wire) | |
| GPIO | 8bit,sample code, Free defination input or output ,3.3V@24mA | |
| EXPANSION BUS | Mini-PCle | 1*Mini-PCIe slot,Support PCIe and USB device |
| SMBUS | 2pinSM-BUS Pin Headers | |
| STORAGE | SATA | 2*Standard SATA3.0 |
| M-SATA | 1*M-SATA socket(SATA3.0) | |
| POWER SUPPLY | Power Type | Wide Voltage 8-36V |
| Power consumption | 60w |
