| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | EC-P6621D-9THH |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Intel® Coffee Lake-H I9-9880H 8 Cores 16 Threads 2.3Ghz Processor | RAM: | Onboard DDR4 4G/8G/16G Storage |
|---|---|---|---|
| Display: | LVDS + DP, LVDS+HDMI, HDMI+DP, LVDS+DP+HDMI | Ethernet: | 1*Gigabit LAN |
| COM: | 6*COM | USB: | 2*USB3.1, 6*USB2.0 |
| Power: | DC Wide Voltage 9-36V | Size: | 154.8 X 117.4 Mm |
| Highlight: | 4GB Industrial Computer Motherboard,DDR4 Industrial Computer Motherboard,8 Cores Industrial Computer Motherboard |
||

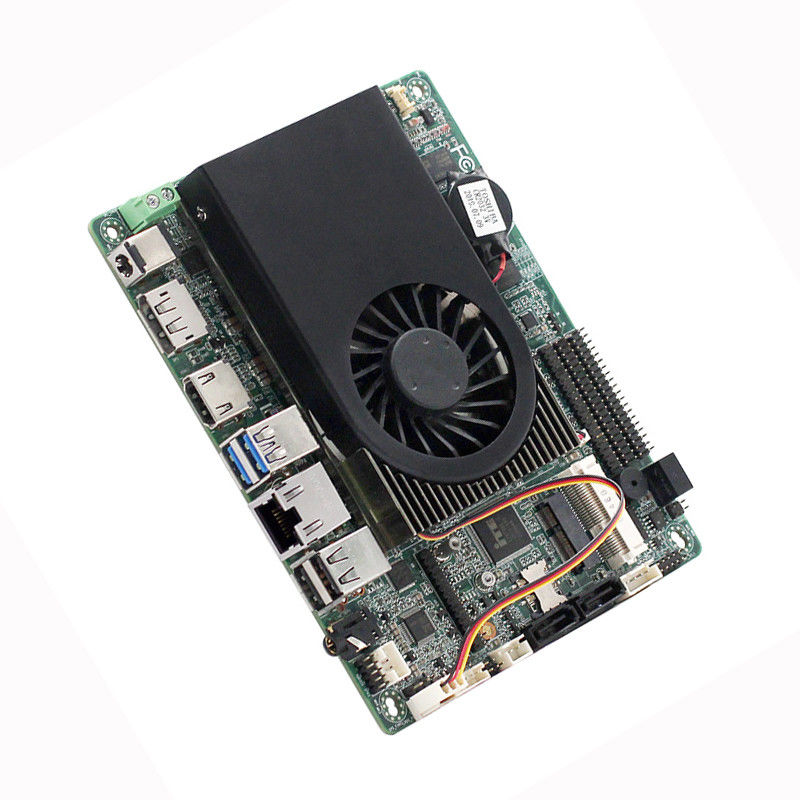

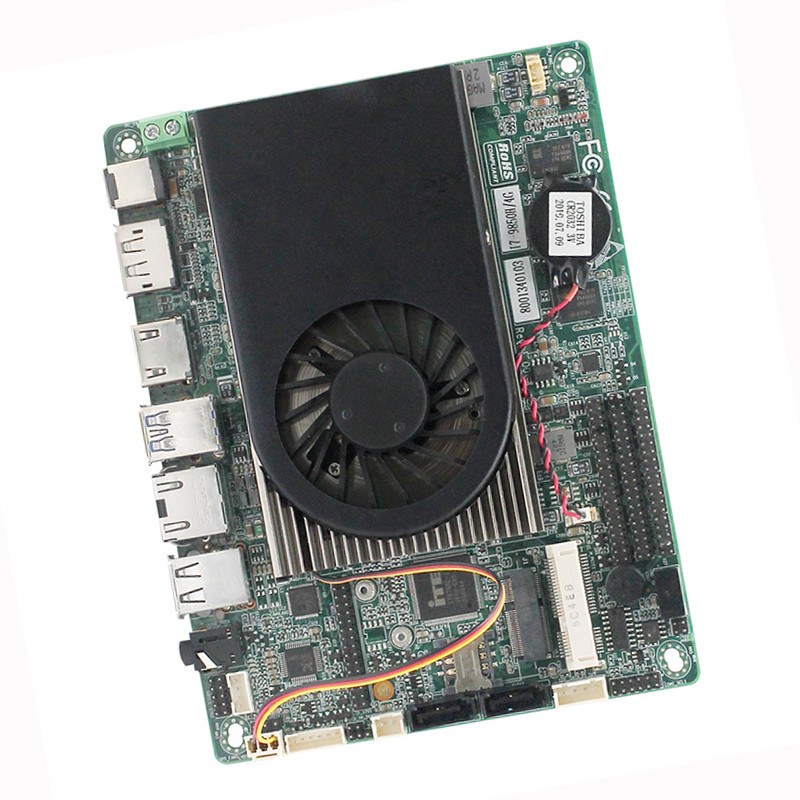

Coffee Lake-H i9-9880H 8 cores industrial pc motherboard onboard 4GB DDR4 DP 4k display DC 9-36V power supply
Notice :
When you inquiry , you can choose the following Model :
EC-P6621D-9THH-I5 Integrated Intel® Coffee Lake-H i5-9300H 4 cores 8 threads 2.4~4.1Ghz processor
EC-P6621D-9THH-I7 Integrated Intel® Coffee Lake-H i7-9850H 6 cores 12 threads 2.6~4.6Ghz processor
EC-P6621D-9THH-I9 Integrated Intel® Coffee Lake-H i9-9880H 8 cores 16 threads 2.3~4.8Ghz processor
Key features
Integrated Intel® Coffee Lake-H i9-9880H 8 cores 16 threads 2.3~4.8Ghz processor
Onboard DDR4 4G/8G/16G storage
1*DDR4 SODIMM 260 Socket, MAX support 32G
Integrated Intel® UHD Graphics 630
LVDS + DP,LVDS+HDMI,HDMI+DP, sync or asynchronous display
Support LVDS+DP+HDMI, sync or asynchronous three display
1*DP,1*HDMI,
1*GLAN,
6*COM,
2*USB3.1, 6*USB2.0,
2*SATA3.0
1*Mini-PCIe M-SATA Scoket
Power supply: DC Wide Voltage 9-36V
Size: 154.8 x 117.4 mm
Specifications
| Processor system | CPU |
Integrated Intel Coffee Lake-H series CPU Integrated Intel®Coffee Lake-H i9-9880H 8 cores 16 threads 2.3Ghz processor Max Turbo Frequency 4.8Ghz |
| CPU package | BGA | |
| Chipset | Intel HM370,QM370 Chipset | |
| BIOS | EFI BIOS | |
| Memory | Technology framework | Dula channel DDR4 2133/2400/2666Mhz; |
| RAM | Onboard DDR4 4G/8G/16G storage | |
| Socket | 1 *DDR4 SODIMM 260 Socket,MAX support 32G | |
| Video | Graphic controller | Intel UHD Graphics 630(I3-8100H graphics);the model of graphics is related to the CPU type |
| Dual LVDS and EDP | Support dual channel 24bits output,MAX resolution:1920 x 1200; EDPMAX resolutionsupports: 4096*2304(optional) | |
| DP | DP support MAX resolution: 4096*2304@60HZ | |
| HDMI | support MAX resolution(HDMI1.4)4096*2304@30HZ support 4K display | |
| Dual display | LVDS + DP,LVDS+HDMI,HDMI+DP, sync or asynchronous display | |
| Three display | Support LVDS+DP+HDMI, sync or asynchronous three display | |

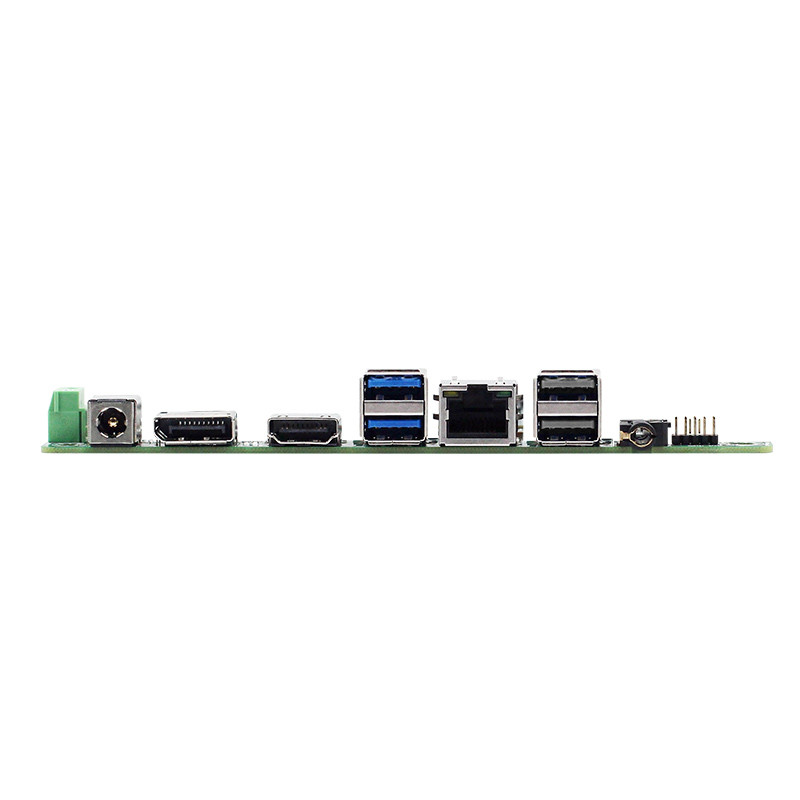

| I/O panel ports | ports | 1*DP,1*HDMI,2*LAN,2*USB3.1 1*MIC-OUT/LINE-OUT 1*DC |
| Internet | Controller | 1*Intel I211AT and 1*Intel I219-LM gigabit ethernets(when I/O ports have 4 USB,only have 1*Intel I211AT network card) |
| Audio | Controller | RealteHD ALC662 Audio decoding (Left and right channels+Microphone) |
| Super I/O | Controller | ITE8786E |
| Hardware Controller | Watchdog timer | 0-255seconds,provide a watchdog routine |
| Cooler | Alluminum Alloy heat sink with Fan(Support automatic and manual fan speed adjustment)) | |
| Input/output ports | USB | 2*USB3.1compatible with USB2.0 / 1.1,6*USB2.0,MAX support +5V/1.5A(USB3.1support GEN2 mode,10Gb/S ) |
| COM | COM1,2 can be setted as RS232 or RS485 through jumping cap and BIOS settings,COM3,COM4 can be setted as RS232 or RS485 by changing hardware and BIOS settings,COM5,COM6 can be RS232 | |
| PS/2 | 1*PS/2 pin interface | |
| GPIO | 8bits,providing routines,freely defines input/output, 3.3V@34mA level | |
| Expansion Bus | Mini-PCle | 1*Mini-PCIe socket,support PCIeand USB devices |
| NGFF | 1*NGFF interface(KEY E ) | |
| Storage | SATA | 2*standard SATAIII interface,MAX transmission rate 6Gb/s |
| M-SATA | 1*Mini-PCIe M-SATA Scoket,support SANDISK protocol,MAX transmission rate 6gb/s | |
| Power supply | Power type | Wide-voltage 9-36V power supply |
| Working environment | Working Temperature | -20℃ ~ +60℃ |
| Storage Temperature | -40℃ ~ +85℃ | |
| Working humidity | 0% ~ 90% Relative humidity, no condensation | |
| Sotorage humidity | 0% ~ 90% Relative humidity, no condensation |
About RMA
1--Warranty 1 year
2--If buyer confirm the item can`t work well due to the non-artificial factors,buyer can return it to our company. Buyers should keep it with proper packaging.
3--Buyers are responsible for return to china freight cost .
4--Seller will repair item and ship the repaired one to buyer,seller will pay the shipping cost from China to Buyer address.
5--Please contact us firstly before returning defective goods by email.
