| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | EC-P6602D-PV |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Intel® Atom D525 Dual Core Four Threads 1.8GHz Processor | RAM: | Onboard DDR3 2GB Memory |
|---|---|---|---|
| Display: | LVDS+VGA | Ethernet: | 2*Gigabit LAN |
| COM: | 6*COM | USB: | 6*USB2.0 |
| Power: | DC Power Supply 12V, +/-5% | Size: | 154.8 X 117.4 Mm |
| Highlight: | D525 Mini Itx Motherboard Dual Lan,3.5Inch Mini Itx Motherboard Dual Lan,POS dual lan itx motherboard |
||

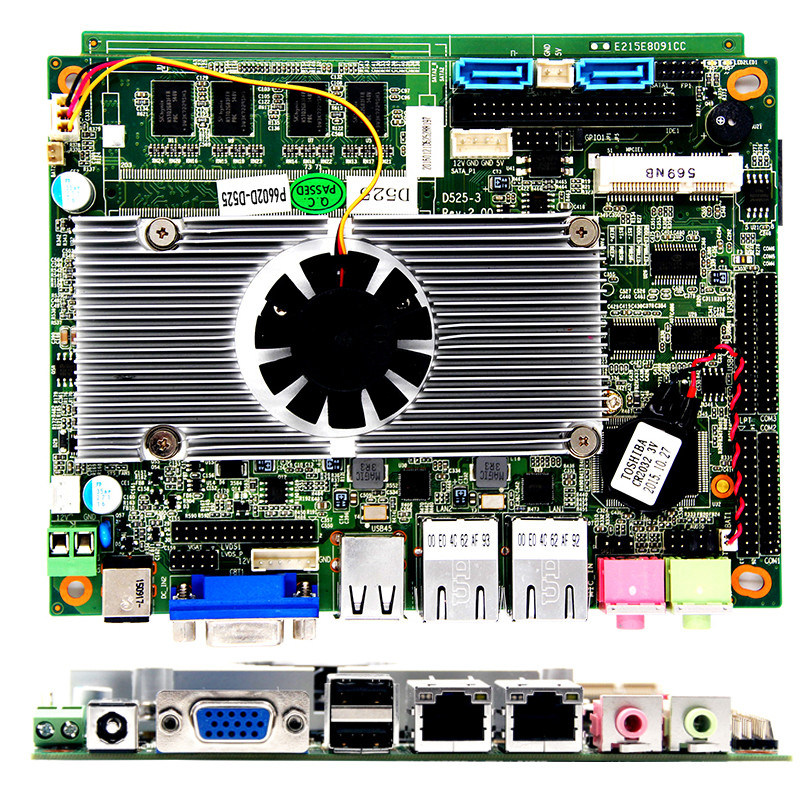

wholesale 3.5 inch D525 POS industrial mini itx motherboard 6 COM 2 LAN Onboard DDR3
Notice :
When you inquiry , you can choose the following Model :
EC-P6602D-PV-D525 Integrated Intel® Atom D525 dual core 4 threads 1.8GHz Processor
EC-P6602D-PV-N455 Integrated Intel® Atom N455 one core 2 threads 1.66GHz Processor
EC-P6602D-PV-N475 Integrated Intel® Atom N455 one core 2 threads 1.83GHz Processor
EC-P6602D-PV-N550 Integrated Intel® Atom N550 dual core 4 threads 1.5GHz Processor
EC-P6602D-PV-N570 Integrated Intel® Atom N570 dual core 4 threads 1.66GHz Processor
wholesale 3.5 inch D525 POS industrial mini itx motherboard 6COM 2LAN Onboard 1333 DDR3 2GB memory
Key features
Integrated Intel® Atom D525 dual core four threads 1.8GHz Processor
Onboard DDR3 2GB memory
Build-in Intel Intel GMA3150
Support LVDS+VGA Synchronous or asynchronous display
6*COM, 2*Gigabit LAN, 6*USB2.0,
2*SATA2.0, 1*mSATA
Onboard HD ALC662 chipset
Single input DC power supply, 12V-DC
Size: 154.8 x 117.4 mm
Specifications
| Processor | CPU | Intel Atom D525 |
| CPU package | BGA | |
| Chipset | ICH8 chipset | |
| BIOS | EFI BIOS | |
| RAM | Technical architecture | Single Channel DDR3 1066/1333/1600MHz |
| Capacity | Onboard 2GB DDR3 | |
| Socket | Support 1*SO-DIMM socket maximum up to 4GB memory | |
| Video | Graphic controller | Build-in Intel Intel GMA3150 |
| Dual LVDS | Onboard 18bit single channel LVDS connector(1366*768) | |
| VGA | VGA maximum resolution(2048*1536) | |
| Dual display support | LVDS+VGA Synchronous or asynchronous display | |
| Rear Panel I/O | Port | 1*12V-DC;1*VGA;2*USB 2.0/1.1;2*1000M RJ45;2*audio I/O port; |
| Network | Controller | 2*RTL8111E-V 1000M LAN ,RJ45 Port |
| Audio | Controller | Onboard Realtek HD ALC662 chipset provide 6 channels output(line-in,line-out,Mic) |
| Super I/O | Controller | NCT6106D |
| Hardware Monitor | Watchdog-Timer | 0~255 second |
| Cooler | Aluminum heat sink(fan or fanless) | |
| Input/Output interfaces | USB | 6*USB 2.0,MAX Supported 5V/1A |
| Serial port | 5*RS-232, 1*RS422/485 Support ,RS485 supported automatic flow control | |
| PS/2 | 1*PS/2 | |
| GPIO | 8*GPIO expansion header(8 bit),3.3V@24mA electrical level | |
| Expansion Sockets | Mini-PCle | 1*Mini-PCIe socket,support PCIe,USB device |
| Storage | SATA | 2*SATAII interface(Maximum transmission rate to 3gb/s) |
| M-SATA | 1*Mini-PCIe M-SATA Socket,support SANDISK protocol(Maximum transmission rate to 3gb/s) | |
| Power Supply | Power Type | Single input DC power supply,12V-DC,+/-5% |
| Power Consumption | 25W |
