| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | EC-P6602D-2TH |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | 2th Generation I3 I5 I7 | RAM: | 1*DDR3 1066/1333/1600MHz SO-DIMM Socket, Maximum To 8GB |
|---|---|---|---|
| Ethernet: | 2*Gigabit LAN | Display: | LVDS+VGA, LVDS+HDMI, HDMI+VGA |
| COM: | 6*COM | Power: | DC Power Supply 12V, +/-5% |
| USB: | 6*USB2.0 | Size: | 154.8 X 117.4 Mm |
| Highlight: | 3.5 Inch Industrial Pc Motherboard,2 LAN Industrial Pc Motherboard,6COM motherboard 2 lan |
||

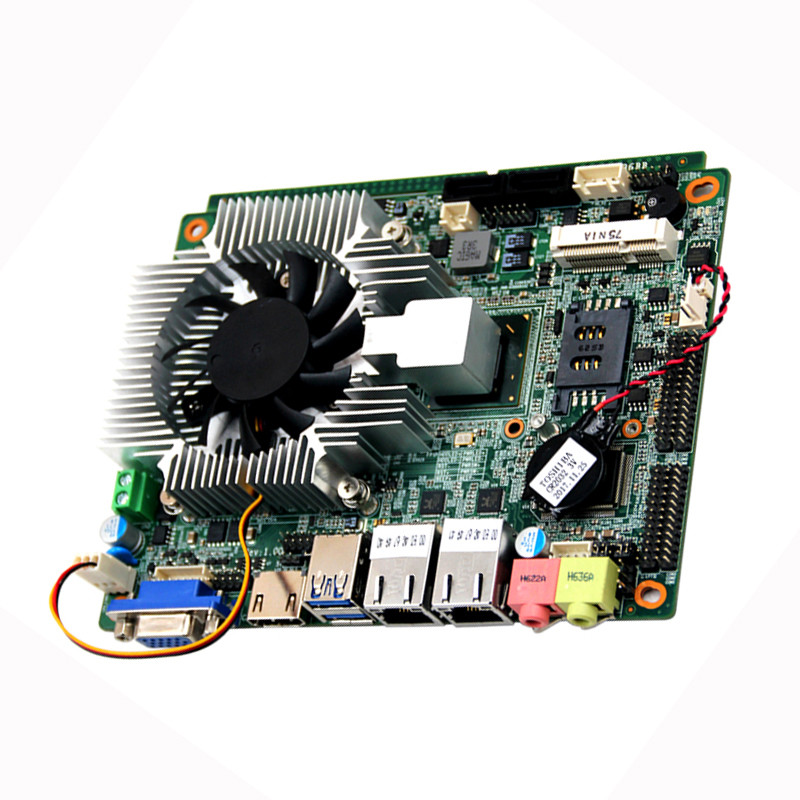

HM67 G2 Mobile Sandy Bridge i5-2410M 3.5 inch industrial PC motherboard 6 COM 2 LAN
Notice :
When you inquiry , you can choose the following Model :
EC-P6602D-2TH-I3 , Integrated Intel® Core™ Sandy Bridge i3-2310M Processor dual cores 4 threads 2.1Ghz
EC-P6602D-2TH-I5 , Integrated Intel® Core™ Sandy Bridge i5-2410M Processor dual cores 4 threads 2.3~2.9Ghz
EC-P6602D-2TH-I7, Integrated Intel® Core™ Sandy Bridge i7-2620M Processor dual cores 4 threads 2.7~3.4Ghz

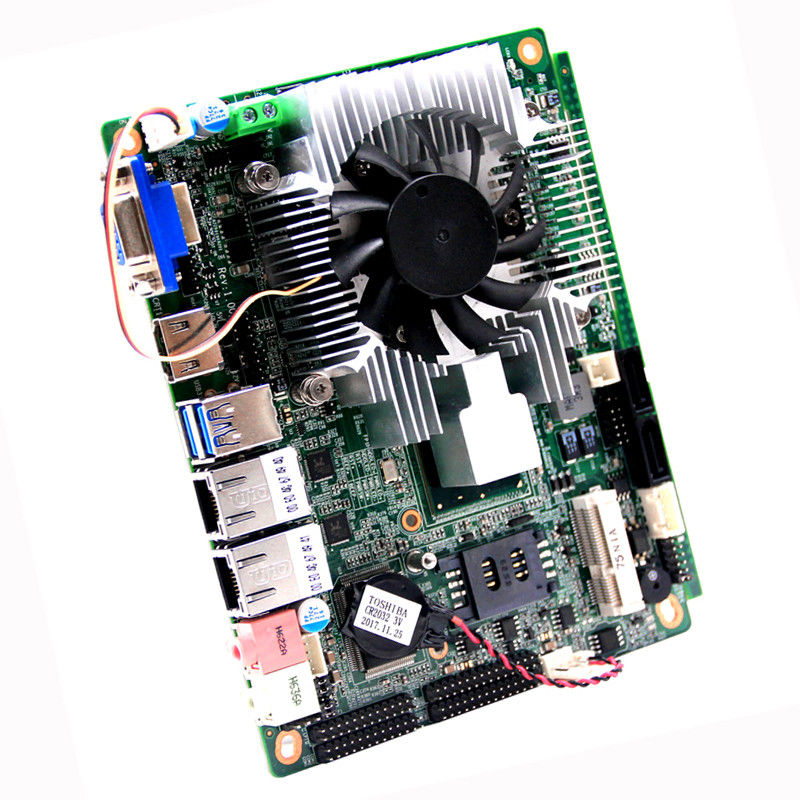

HM67 G2 Mobile Sandy Bridge i5-2410M 3.5 inch industrial PC motherboard 6 COM 2 Gigabit Ethernet LAN
Key features
Integrated Intel® i5-2410M dual core four threads 2.3~2.9GHz Processor
Support 1*DDR3 1066/1333/1600MHz SO-DIMM socket,maximum to 8GB
Build-in Intel HD Graphics 3000
Support LVDS+VGA, LVDS+HDMI, HDMI+VGA,Synchronous or asynchronous display
6*COM
2*Gigabit LAN
6*USB2.0,
2*SATA, 1*mSATA
Onboard HD ALC662 chipset
Single input DC power supply 12V-DC, +/-5%
Size: 154.8 x 117.4 mm
Specifications
| Processor | CPU |
Integrated Intel® i5-2410M dual core four threads 2.3GHz Processor Max Turbo Frequency 2.9Ghz |
| CPU Package | BGA | |
| Chipset | Intel® HM67/QM67 Express Chipset Optional. | |
| BIOS | UEFI BIOS | |
| Ram | Technical architecture | DDR3 memory,1066/1333/1600MHz. |
| Capacity | SO-DIMM socket,maximum up to 8GB | |
| Video | Graphic controller | Intel HD Graphics |
| Dual LVDS | Support dual channel 24bit LVDS connector | |
| HDMI | Resolution maximum:1920*1200 | |
| Double display support | LVDS+VGA,LVDS+HDMI,HDMI+VGA,Synchronous or asynchronous display | |
| Rear Panel I/O | Ports | 1*HDMI,1*VGAport,2*Lan,2*USB2.0port,1*AudioI/Ointerfaces(Line_out,Mic_in) |
| Network | Controller | Onboard 2*Gigabit Ethernet,support PXE and Wakeup on LAN. |
| Audio | Controller | Onboard HDA ALC662,provide MIC-IN/LINE-OUT and expansion header. |
| Super I/O | Controller | NCT6106D |
| Hardware Monitor | Watchdog-Timer | 0~255 timer |
| Cooler | Aluminum heat sink(fan) | |
| Input/Output interfaces | USB | 6*USB 2.0/1.1(2 external;4 expansion header),Max. supported 5V/1A |
| Serial port | 6*COM expansion headers (support 5* RS232/1*422/485) | |
| PS/2 | ||
| GPIO | 8*GPIO expansion header(8 bit),3.3V@24mA electrical level | |
| Expansion Sockets | Mini-PCle | 1*Mini-PCIE socket for WIFI/3G |
| SMBUS | ||
| Storage | SATA | 2*SATA socket |
| M-SATA | 1*Mini SATA socket for SSD | |
| Power supply | Power Type | Single input DC power supply,12V-DC,+/-5% |
| Power Consumption | 20W |
