| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | EC-P6512DWA-BT |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Bay Trail J1900 Quad Core 4 Threads 2.0Ghz Processor | RAM: | Onboard DDR3 2GB/4GB RAM |
|---|---|---|---|
| Ethernet: | 2*Gigabit LAN | Display: | LVDS / VGA / HDMI |
| COM: | 6*COM (5*RS-232, 1*RS-485/RS-422) | Power: | 8-36V Power Supply |
| USB: | 5*USB 2.0, 1*USB3.0 | Size: | 154.8 X 117.4 Mm |
| Highlight: | J1900 3.5 Inch Motherboard,Quad Cores 3.5 Inch Motherboard,Wide Voltage motherboard 2 lan |
||

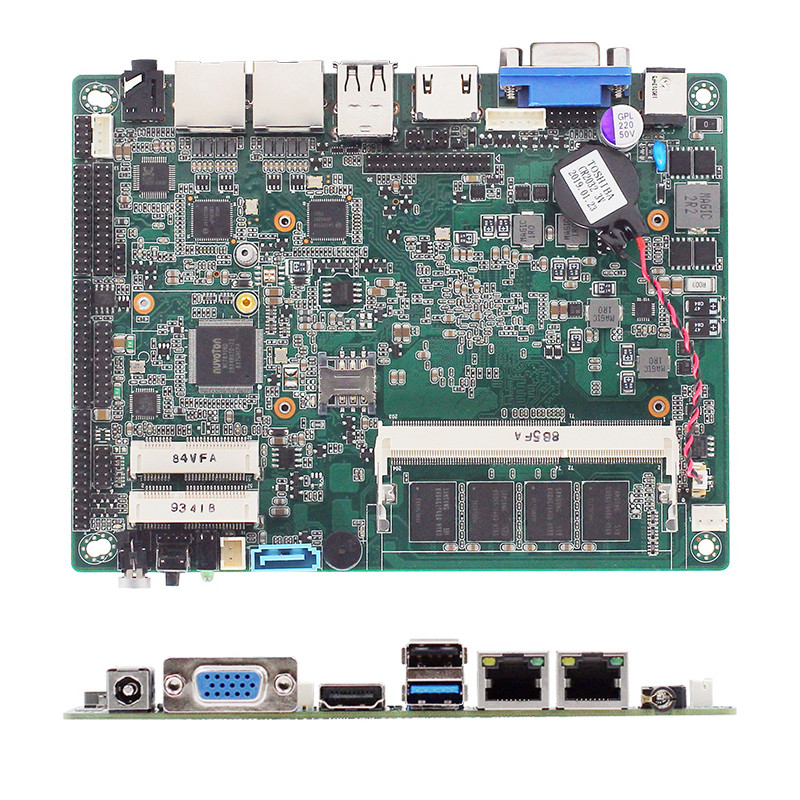

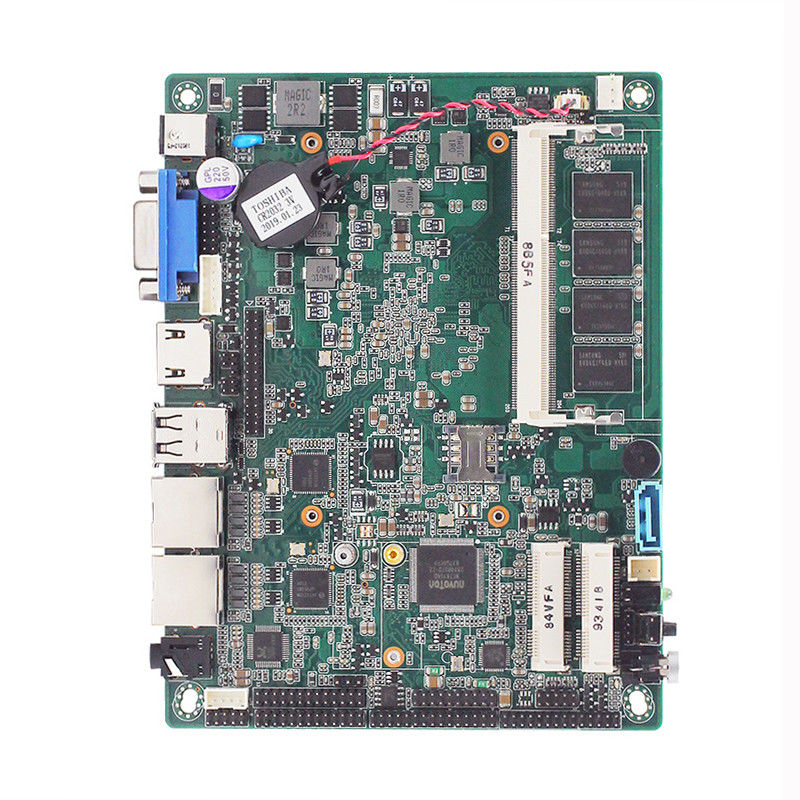

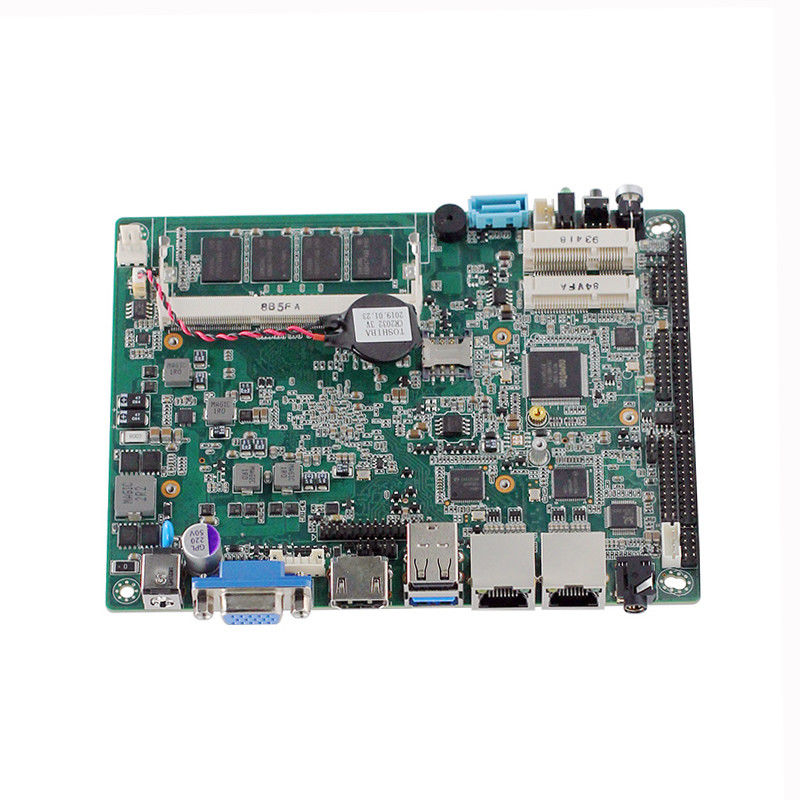

3.5 inch Bay Trail J1900 quad cores industrial motherboard 6 COM 2 LAN wide voltage power
Notice :
When you inquiry , you can choose the following Model :
EC-P6512DWA-BT-J1800 Integrated Celeron® Bay Trail J1800 dual core 2 threads 2.41~2.58Ghz processor
EC-P6512DWA-BT-J1900 Integrated Celeron® Bay Trail J1900 quad core 4 threads 2.0~2.42 Ghz processor
EC-P6512DWA-BT-N2806 Integrated Celeron® Bay Trail N2806 dual core 2 threads 1.6~2.0Ghz processor
EC-P6512DWA-BT-E3845 Integrated Atom® Bay Trail E3845 quad core 4 threads 1.91Ghz processor
3.5 inch Bay Trail J1900 quad cores industrial motherboard 6 COM 2 LAN mainboard onboard 4GB ram wide voltage DC 8-36V power supply
Key features
Integrated Bay Trail J1900 quad core 4 threads 2.0Ghz processor
Onboard DDR3 2GB/4GB Ram
Support LVDS / VGA / HDMI Display
Support double display synchronous or asynchronous display
Support touch screen(4wire 5wire 8wire)
2*Gigabit Lan
5*USB 2.0, 1*USB3.0
5*RS-232,1*RS-485/RS-422
1*Mini SATA
1*SATAII
onboard 16/32/64G SSD(Optional)
Aluminum heat sink(fan )
Support wide voltage 8-36V power supply
Size: 154.8 x 117.4 mm
Specifications
| Processor | CPU |
Integrated Bay Trail J1900 quad core 4 threads 2.0Ghz processor Burst Frequency 2.42Ghz |
| CPU package | BGA | |
| Chipset | Support Baytrail-I/D/M Processor | |
| BIOS | EFI BIOS | |
| Memory | Technology framework | Single channel DDR3L 1066/1333MHz |
| Capacity | Integrated 2GB/4GB DDR3L | |
| Socket | 1x RAM slot ,max. 4GB RAM(Optional) | |
| Graphic controller | Intel HD Graphics | |
| Video | Dual LVDS | LVDS Support dual channel 24bit LVDS,Resolution maximum:1920*1200, EDP Resolution maximum:2560*1600(LVDS&EDP Display alternatively) |
| VGA | VGA Maximum resolution2048x1536 | |
| HDMI | HDMI Maximum resolution 1920x1080 | |
| Dual display | LVDS + VGA,LVDS+HDMI,HDMI+VGA Synchronous or asynchronous display | |
| I/O panel | Ports |
1*VGA 1*HDMI 1*USB3.0 1*USB2.0 2*RJ45 Lan 1*LINE OUT/MIC IN (1* reset button, 1* power indicator, 1* hard disk indicator, 1* quick switch button) |
| Network | Controller | 2*Intel I211Gigabit Ethernet LAN,RJ45 ports |
| AUDIO | Controller | Realtek HD ALC662 Audio((line-in,line-out,Mic) |
| Super I/O | Controller | NCT6106D |
| HARDWARE MONITORING | Watch dog | 0-255second, Sample code optional |
| Cooler | Aluminum alloy heat sink with fan(fanless optional) | |
| USB | 5*USB2.0,1*USB3.0 Max support +5V/1A | |
| Input/Output Interface | Serial ports | 5*RS-232, 1*RS422/485(optional),RS485 supported automatic flow control |
| Touch screen | Support Touch Panel(4wire 5wire 8wire M_PCIE1 only supports PCIE protocol devices when the touch screen is available) | |
| GPIO | 8bit,sample code, Free defination input or output ,3.3V@24mA | |
| Extended bus | Mini-PCle | 2*Mini-PCIe slot,Support PCIe and USB device(M_PCIE1 only supports PCIE protocol devices when the touch screen is available, MINI-PCIE2 only supports short cards) |
| Storage | SATA | 1*SATAII connector,Maximum transmission rate 3Gb/(onboard SSD optional) |
| M-SATA | 1*M-SATA Socket,support SANDISK protocol(Maximum transmission rate to 3gb/s) | |
| SSD | Onboard 16/32/64G SSD/SATA(Optional) | |
| Power Supply | Power consumption | Support 8-36V wide voltage supply |
