| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | EC-P6442DE-SK |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Skylake I3-6100U Dual Cores 4 Threads 2.3GHz Processor | RAM: | Integrated 4GB/8G DDR4 |
|---|---|---|---|
| Ethernet: | 2*Gigabit LAN | Display: | LVDS/EDP+ DP, LVDS/EDP +HDMI, HDMI+DP, LVDS/EDP+DP+HDMI |
| COM: | 6*COM | Power: | Single Input DC 12V Power Supply |
| USB: | 4*USB3.0, 4*USB2.0 | Size: | 154.8 X 117.4 Mm |
| Highlight: | I3-6100U 3.5 And 4 Inch Motherboard,3.5 And 4 Inch Motherboard 4GB |
||

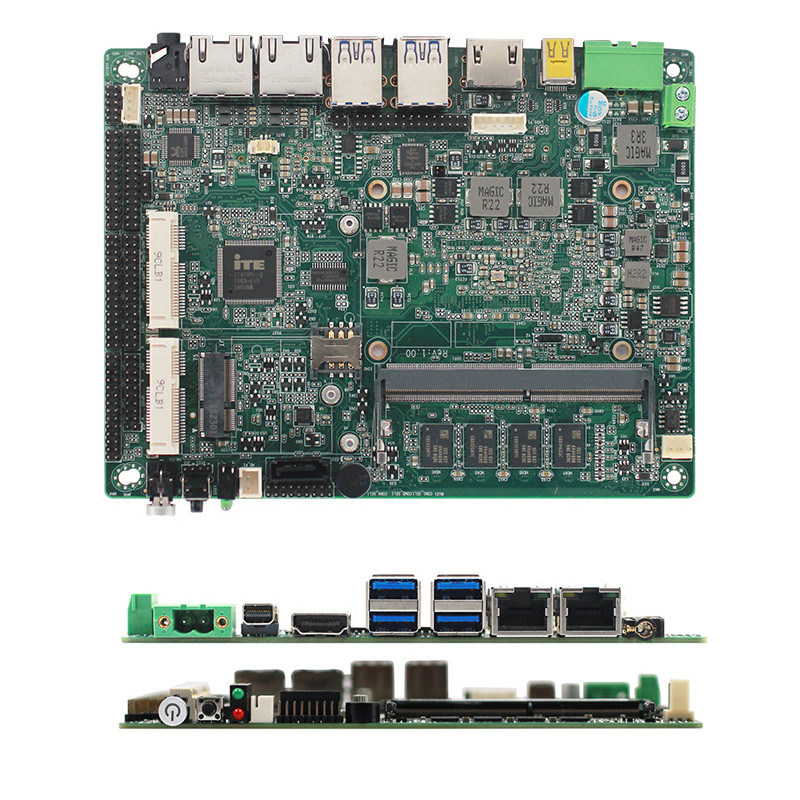

Skylake i3-6100U mini computer motherboard 4GB DDR4 with DP 4K display 6 COM 2 LAN
Notice:
When you inquiry , you can choose the following Model
EC-P6442DE-SK-3855U Integrated Skylake Celeron® Processor Dual core 2 threads 1.6Ghz processor
EC-P6442DE-SK-I3 Integrated Skylake i3-6100U dual cores 4 threads 2.3GHz Processor
EC-P6442DE-SK-I5 Integrated Skylake i5-6200U dual cores 4 threads 2.3~2.8GHz Processor
EC-P6442DE-SK-I7 Integrated Skylake i7-6500U dual cores 4 threads 2.5~3.1GHz Processor
Intel® Skylake 6th i3 i5 i7 / Celeron® 3855U onboard 4GB DDR4 mini computer motherboard with DP 4K display 6 COM 2 LAN
Key features
Integrated Skylake i3-6100U dual cores 4 threads 2.3GHz Processor
1*Single channel DDR4 2133Mhz up to 16GB
Integrated 4GB/8G DDR4
Integrated Intel® HD Graphics 520
Support LVDS/EDP+ DP, LVDS/EDP +HDMI, HDMI+DP Synchronous or asynchronous display
Support LVDS/EDP+DP+HDMI three-screen synchronous or asynchronous display
Support 4K display
6*COM
2*Gigabit LAN
4*USB3.0
4*USB2.0
1* SATA3.0
1* Mini-PCIe M-SATA Scoket
Onboard Realtek HD ALC662
Single input DC power supply ,DC12V
Size: 154.8 x 117.4 mm
Specifications
| Processor | CPU | Integrated Skylake i3-6100U dual cores 4 threads 2.3GHz Processor |
| CPU package | BGA | |
| chipset | Intel Skylake-U Series SOC | |
| BIOS | EFI BIOS | |
| RAM | Technical architecture | Single chnnel DDR4 2133Mhz; |
| Capacity | Integrated 4GB/8G DDR4 | |
| Socket | Can add 1 socket slot,max support 16GB ram | |
| Video | Graphic controller | Intel HD Graphics 520 |
| Dual LVDS and EDP | Support Dual channel 24bits output, max resolution support1920 * 1200, EDP max resolution support 4096*2304(either-or either) | |
| DP++ | 1xDP 1.2 interface ,support DP++,Max resolution support 4096*2304@60HZ support 4K display | |
| HDMI | Max resolution support(HDMI1.4)4096*2304@30HZ support 4K display | |
| Dual display | LVDS/EDP + DP,LVDS/EDP+HDMI,HDMI+DP Synchronous or asynchronous display | |
| Tripple display | LVDS/EDP+DP+HDMI Synchronous or asynchronous display | |
| I/O Back panel | ports | 1*HDMI,1*DP++,4*USB3.0,2*LAN,1*MIC+LINE OUT 1*Phoenix terminal power connector |
| Network | controller | 1*Intel I211AT and 1XIntel I219-LM |
| Audio | controller | Raychem HD ALC662 audio decoding (left and right channel + microphone) |
| Super I/O | controller | ITE8786E |
| Hardware controller | Watching dog timer | 0-255 seconds,providing a watchdog routine |
| Cooler | Aluminum fan heater (supports automatic and manual fan speed adjustment) | |
| Output/input Ports | USB |
4*USB3.0compatibale with USB2.0 / 1.1 4*USB2.0,max support +5V/1.5A |
| COM | COM1, 2, 4 can be selected as RS232 or RS485 through the jumper cap and BIOS, COM3 can be selected as RS422/RS485 through the BIOS, COM5, COM6 are RS232 | |
| PS/2 | 1*PS/2 plug pin interface | |
| Touch screen | Support TS 4wire 5wire 8wire(NGFF interface has no USB signal when touch screen is available) | |
| GPIO | 8-bit, providing routines, freely defined input/output, 3.3V@24mA level | |
| Expansion bus | Mini-PCle | 1*Mini-PCIe socket,support PCIe and USB device |
| NGFF | 1*NGFF interface(There is no USB signal when KEY E touch screen is available, only PCIE signal) | |
| Storge | SATA | 1*standard SATAIII interface, MAX transfer rate of 6Gb/s |
| M-SATA | 1*Mini-PCIe M-SATA Scoket,supporting SANDISK protocol, maximum transfer rate 6gb/s | |
| Power Supply | Power supply type | DC 12V power supply |
| Power consumption | 35W | |
| System | System | Windows7 Windows10 Linux |
| working environment | Operating temperature | -20℃ ~ +60℃ |
| storage temperature | -40℃ ~ +85℃ | |
| Working humidity | 0% ~ 90% relative humidity, no condensation | |
| Storage humidity | 0% ~ 90% relative humidity, no condensation | |
| OS system | Windows 10 Linux | |
| physical dimension | size | 154.8 x 117.4 mm |
| weight | 0.5KG |
