Screen Size: | 11.6 Inch IPS FullHD | CPU: | Apollo Lake J3355 Dual-Core |
---|---|---|---|
RAM + Storage: | 4GB RAM+ 64GB EMMC | Dimension: | 283 X 177 X 42mm |
Screen: | 11.6” 1920*1080 IPS FullHD Resolution | Serial Port: | 1* RS232 Com |
WIFI: | 5G&2.4G Dual-band | Bluetooth: | Bluetooth4.2 |
Network: | 1*RJ45 Gigabit Lan | ||
Highlight: | J3355 Win10 Industrial Tablet PC,Fanless Industrial Tablet PC,12 inch industrial mini pc |

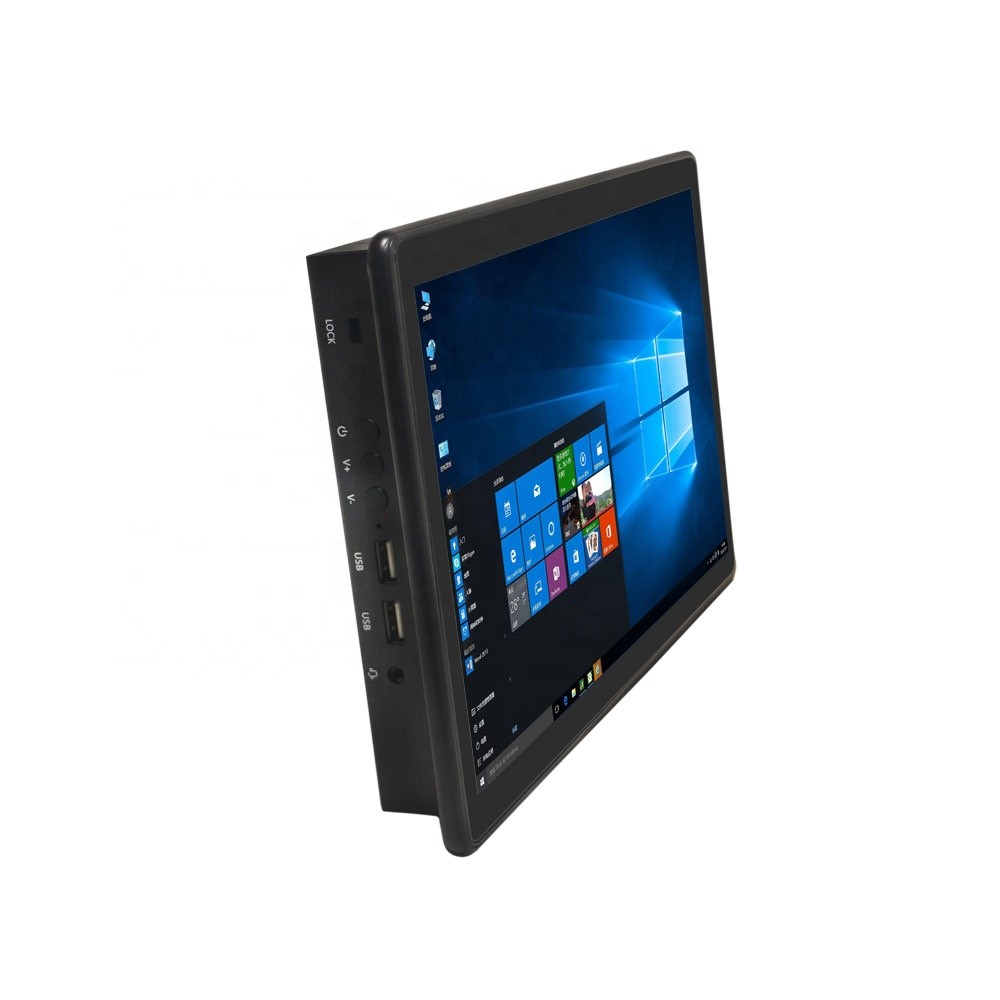

Dual core J3355 Win10 Fanless WIFI IPS Apollo 12 inch industrial mini pc computer
Features
1. Intel Apollo Lake J3355 Dual-Core
2 Mini size, 11.6” 1920*1080 IPS FullHD resolution
3. Low power consumption, less than 10w
4. Dual Frequency WIFI, 2.4G&5G and 1000Mbps Gigabit Lan

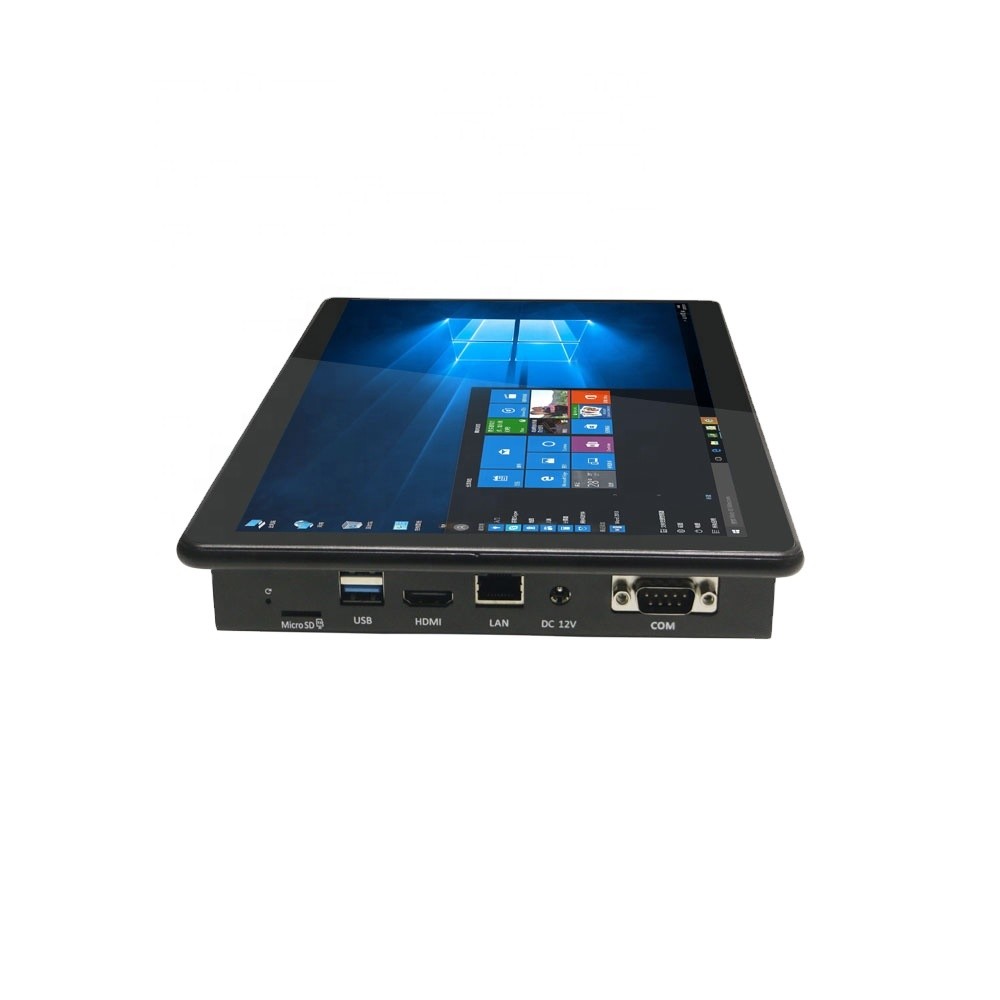

5. With HDM I(up to 4K), BT, RJ45, RS232 com port, USB3.0, USB2.0, Audio Jack, TF Card reader,
7. Fanless, 7*24 hours operation
8. Wake up on lan, PXE, Auto power on
10. Standard 75*75mm Vesa Holes, can be mounted onto the wall or desk
11. Wide usage, POS system, education, 3D printing, video meeting, industrial control, advertisement, display, access
Specifications
System Physical Standard Configuration: | ||
Type | Details | Descriptions |
Product Form | Form Factor | 11.6" mini Aio PC |
Dimensions | 283 x 177 x 42mm | |
Weight | 1.2KG | |
LCD | Screen Size | 11.6" |
Screen Resolution | 1920×1080 (IPS + 250ANSI) | |
TP | Touch Module | G+G Multi-Touch |
Battery | CMOS battery | Yes |
System Hardware Configuration: | ||
Type | Details | Descriptions |
CPU | Type | Intel Apollo Lake J3355 Dual-Core |
Speed | 2GHz ~ 2.50GHz | |
GPU | Type | Intel HD Graphics 500 |
Memory | Capacity | 4GB (LPDDR4) |
Storage | eMMC | 64GB |
SSD (M.2; 22×42mm) | Optional (Support Customized as MOQ order) | |
Speaker | Built-in | 8Ω/1W |
Micphone | Built-in | Optional |
G-sensor | Built-in | Yes |
Network Connections: | ||
Type | Details | Descriptions |
WIFI | WIFI Module: Intel AC3165 | WIFI 802.11ac/b/g/n 5G&2.4G Dual-band |
Blue tooth | Blue tooth Module: Intel AC3165 | Blue tooth4.2 |
Ethernet Network | RJ-45 | 100/1000Mbps Gigabit Lan |
Interface Configuration: | ||
Type | Details | Descriptions |
USB Interface | USB3.0 Host | ×2pcs |
USB2.0 Host | ×2pcs | |
SD / TF Card reader | TF Card reader | ×1pc |
Audio Jack | 3.5mm headphone | ×1pc |
HDM I | HDMI1.4 | ×1pc |
Video output through HDM I | Up to 4K | |
COM Port | DB9 (RS232) | ×1pc (RS232×1pc) |
Button Switch: | ||
Type | Details | Descriptions |
Power | On/Off | ×1pc |
Volume | Down/UP | ×1pc |
CMOS Reset | Reset by Short Press | Yes |
VESA hole | Standard 75 × 75mm VESA hole | Yes |
Main Accessories: | ||
Type | Details | Descriptions |
Power adapter | DC 12V/2A | ×1pc |
User's Manual | User's Manual | ×1pc |
VESA Mount | Standard 75×75mm VESA Mount on desk | Optional |
Software Configuration: | ||
Type | Details | Descriptions |
Power on Function | By Power Button or Auto Power on | Optional |
Wake up on Lan | Wake up on Lan by RJ45 | Support |
PXE | Preboot Execution Environment | Support |
Operating System | Windows 10 Pro | Optional |
Linux | Test by end user | |
Environment: | ||
Temperature | Operation Temperature | -10oC ~ 50oC (1080p or 4K local video display) |
Storage Temperature | -20oC ~ 70oC (Restore to Operation Temperature 2hr before use) | |
Humidity | Oprating Humidity | 35% ~ 80% relative humidity, Non-condensing |
Storage Humidity | 20% ~ 93% relative humidity, Non-condensing | |
Certification: | ||
CE | CE | Optional |
Other | Other | Optional |
