| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | VGS-IT10J3 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Screen Size: | 10.1 Inch | CPU: | Intel Apollo Lake J3355 Dual-Core |
|---|---|---|---|
| RAM: | 4GB | Storage: | 64GB EMMC |
| Resolution: | 1280×800 (IPS + 250ANSI) | COM Port: | 1*DB9 (RS232) |
| Size: | 244 X 184.2 X 65mm | ||
| Highlight: | 10.1Inch Pos all in one mini computer,J3355 IPS all in one mini computer,Pos 10.1 inch industrial panel mini pc |
||

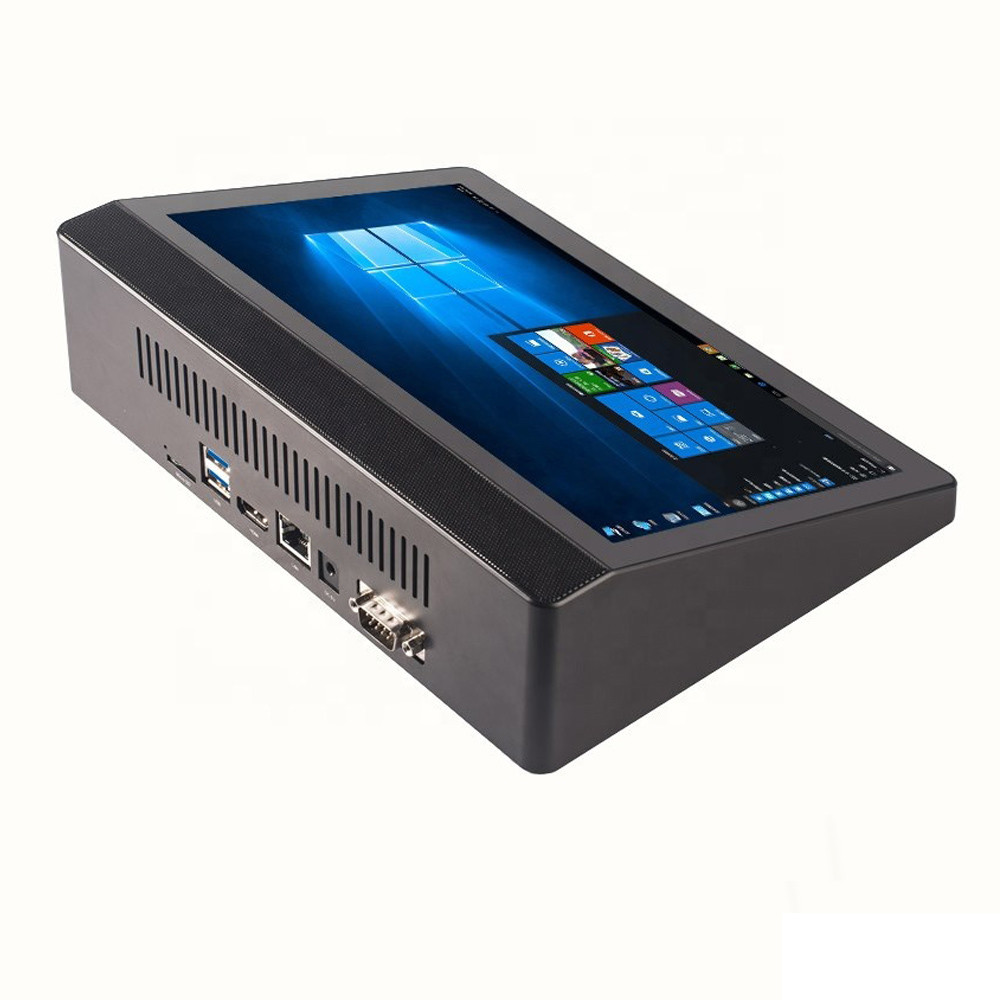

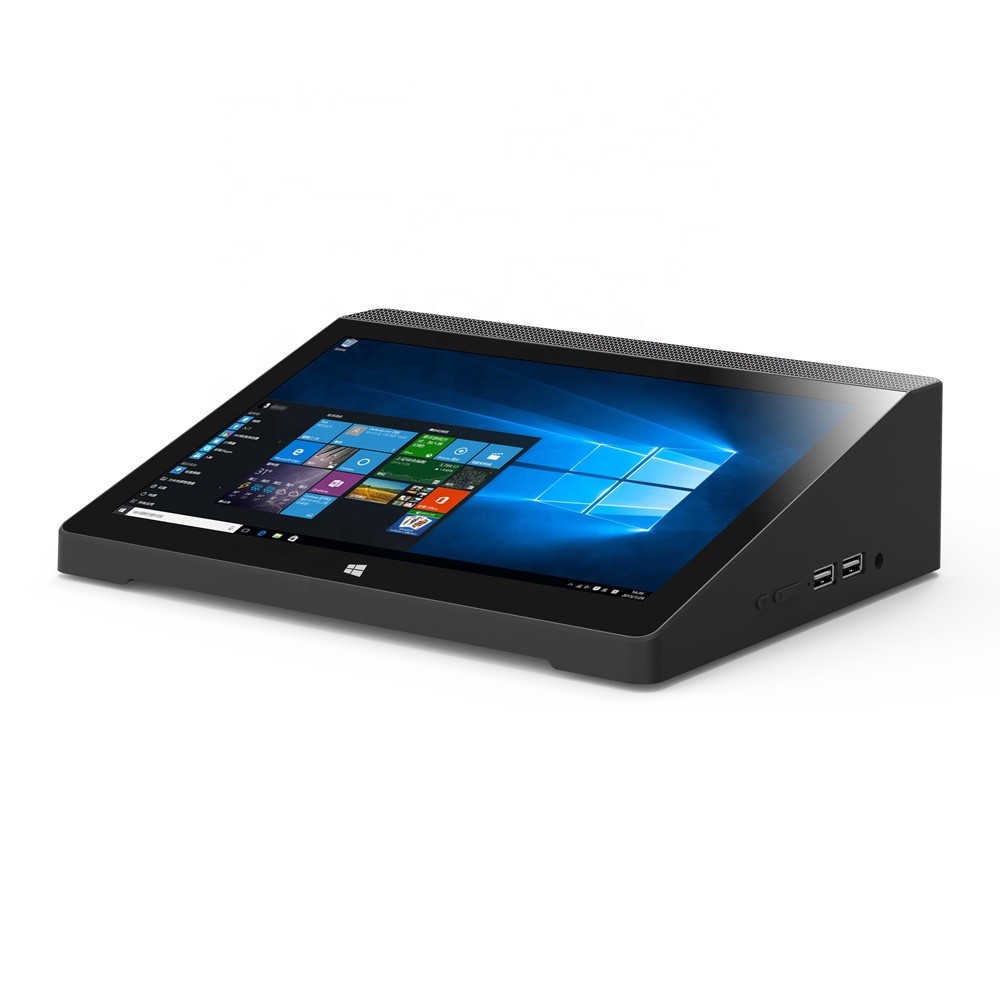

10.1 inch J3355 IPS touch screen industry all in one mini pos computer 4GB RAM 64GB Emmc with RS232 port
Features
Specifications
| System Physical Standard Configuration: | ||
| Type | Details | Descriptions |
| Product Form | Form Factor | 10.1" mini Aio PC |
| Dimensions | 244 x 184.2 x 65mm | |
| Weight | 0.9KG | |
| LCD | Screen Size | 10.1" |
| Screen Resolution | 1280×800 (IPS + 250ANSI) | |
| TP | Touch Module | G+G Multi-Touch |
| Battery | Recharge Li-ion battery | Optional |
| System Hardware Configuration: | ||
| Type | Details | Descriptions |
| CPU | Type | Intel Apollo Lake J3355 Dual-Core |
| Speed | 2GHz ~ 2.50GHz | |
| GPU | Type | Intel HD Graphics 500 |
| Memory | Capacity | 4GB (LPDDR4) |
| Storage | eMMC | 64GB |
| SSD (M.2; 22×42mm) | Optional | |
| SATA 2.5“ HDD | Optional | |
| Speaker | Built-in | 8Ω/1W |
| Micphone | Built-in | Optional |
| G-sensor | Built-in | Yes |
| Network Connections: | ||
| Type | Details | Descriptions |
| WIFI | WIFI Module: Intel AC3165 | WIFI 802.11ac/b/g/n 5G&2.4G Dual-band |
| Blue-tooth | BT Module: Intel AC3165 | Bluetooth4.2 |
| Ethernet Network | RJ-45 | 100/1000Mbps Gigabit Lan |
| 4G LTE | M.2 4G module | Optional |
| Interface Configuration: | ||
| Type | Details | Descriptions |
| USB Interface | USB3.0 Host | ×2pcs |
| USB2.0 Host | ×2pcs | |
| SD / TF Card reader | TF Card reader | ×1pc |
| Audio Jack | 3.5mm headphone | ×1pc |
| HD-MI | HD-MI 1.4 | ×1pc |
| Video output through HD-MI | Up to 4K | |
| COM Port | DB9 (RS232) | ×1pc |
| Button Switch: | ||
| Type | Details | Descriptions |
| Power | On/Off | ×1pc |
| Volume | Down/UP | ×1pc |
| CMOS Reset | Reset by Short Press | Optional |
| Main Accessories: | ||
| Type | Details | Descriptions |
| Power adapter | DC 12V/2A | ×1pc |
| User's Manual | User's Manual | ×1pc |
| Software Configuration: | ||
| Type | Details | Descriptions |
| Power on Function | By Power Button or Auto Power on | Optional |
| Wake up on Lan | Wake up on Lan by RJ45 | Support |
| PXE | Preboot Execution Environment | Support |
| Operating System | Windows 10 | Optional |
| Linux | Test by end user | |
| Environment: | ||
| Temperature | Operation Temperature | -10oC ~ 50oC (1080p or 4K local video display) |
| Storage Temperature | -20oC ~ 70oC (Restore to Operation Temperature 2hr before use) | |
| Humidity | Oprating Humidity | 35% ~ 80% relative humidity, Non-condensing |
| Storage Humidity | 20% ~ 93% relative humidity, Non-condensing | |
