Screen Size: | 8 Inch | CPU: | Intel Atom X5-Z83XX Quad-Core |
---|---|---|---|
RAM: | 4GB | Storage: | 64GB EMMC |
Resolution: | 1280×800 | Dimension: | 199X136x27mm |
Battery: | Bulit With 5000mAh/3.7V Rechargeable Lithium Battery | ||
Highlight: | 5000mAh Industrial Tablet PC,8 Inch Industrial Tablet PC,8 Inch All In One PC |

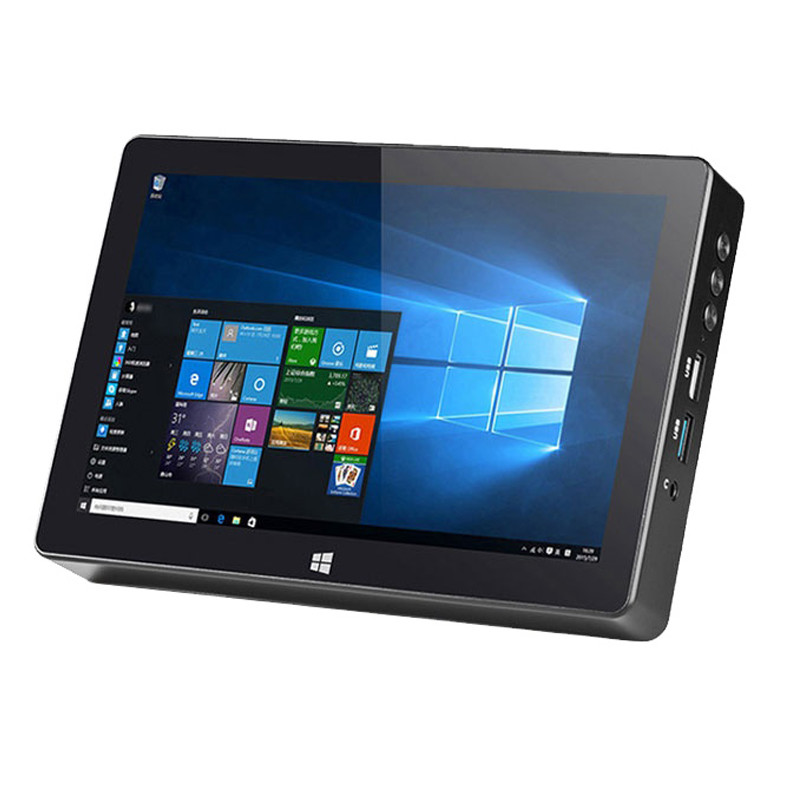

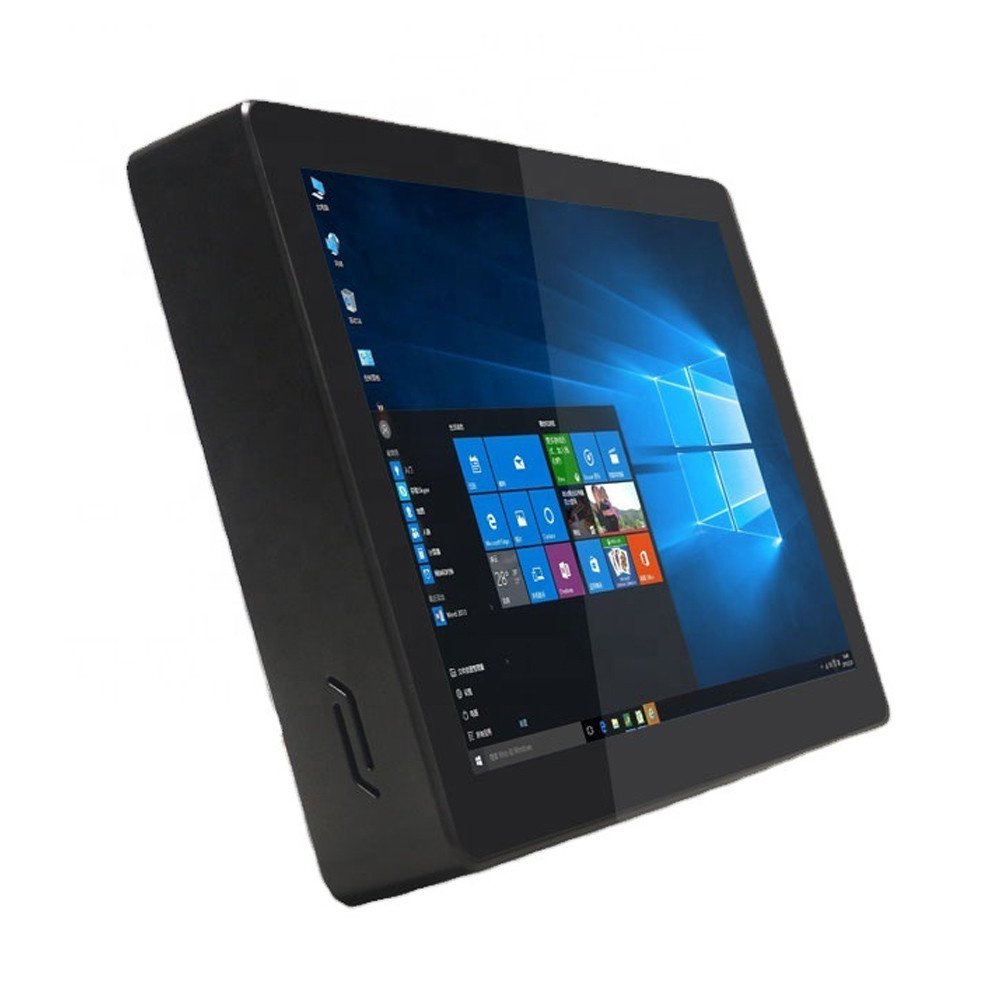

5000mAh battery 8 Inch Industrial Windows Touch Screen Mini Panel Computer All In One PC
Features
Specifications
System Physical Standard Configuration: | ||
Type | Details | Descriptions |
Product Form | Form Factor | 8" All-in-one PC |
Dimensions | 199X136x27mm | |
Weight | 0.6KG | |
LCD | Screen Size | 8" |
Screen Resolution | 800×1280 IPS | |
TP | Touch Module | G+G Multi-Touch |
Battery | Type | Rechargeable lithium polymer |
Capacity | 5000mAh/3.7V | |
Working Time | 6 hours (FHD local video display) | |
System Hardware Configuration: | ||
Type | Details | Descriptions |
CPU | Type | Intel Atom x5-Z83XX Quad-Core |
Speed | 1.44GHz ~ 1.84GHz | |
GPU | Type | Intel HD Graphics Gen8 |
Memory | Capacity | 4GB |
Storage | eMMC | 64GB |
Speaker | Built-in | 8Ω/1W |
G-sensor | Built-in | Yes |
Network Connections: | ||
Type | Details | Descriptions |
WIFI | WIFI Module: Realtek 8723BS | WIFI 802.11b/g/n 2.4G |
Blue tooth | Blue tooth Module: Realtek 8723BS | BT4.0 |
Ethernet Network | RJ-45 | 100/1000Mbps Gigabit Lan |
Interface Configuration: | ||
Type | Details | Descriptions |
USB Interface | USB3.0 | ×1pc |
USB2.0 | ×3pc | |
SD / TF Card reader | TF Card reader | ×1pc (up to 128GB) |
Audio Jack | 3.5mm headphone (Output only) | ×1pc |
HDM I | HDMI1.4 | ×1pc |
Video output through HDM I | Up to 4K | |
Button Switch: | ||
Type | Details | Descriptions |
Power | On/Off | ×1pc |
Volume | Down/UP | ×1pc |
Main Accessories: | ||
Type | Details | Descriptions |
Power adapter | DC 5V/3A | ×1pc |
User's Manual | User's Manual | ×1pc |
Software Configuration: | ||
Type | Details | Descriptions |
Power on Function | By Power Button or Auto Power on | Optional |
Operating System | Windows 10 | Optional |
Linux | Test by end user | |
Environment: | ||
Temperature | Operation Temperature | -10oC ~ 50oC (1080p or 4K local video display) |
Storage Temperature | -20oC ~ 70oC (Restore to Operation Temperature 2hr before use) | |
Humidity | Oprating Humidity | 35% ~ 80% relative humidity, Non-condensing |
Storage Humidity | 20% ~ 93% relative humidity, Non-condensing |
