| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | ETH-YB12U-B75 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Processor: | Support Intel® Core™ 2th /3th Gen I3/i5/i7 CPU | Chipset: | Intel®B75 |
|---|---|---|---|
| VGA: | 1*VGA | HD MI: | 1* H-D-M-I |
| PCIe Slot: | 12*USB3.0 TO 12* PCIE 16X Slot | Size: | 230*185mm |
| Power: | ATX Power Supply | ||
| Highlight: | Eth Mining PC Motherboard,12 GPU Mining PC Motherboard,Cryptocurrency Mining PC Motherboard |
||

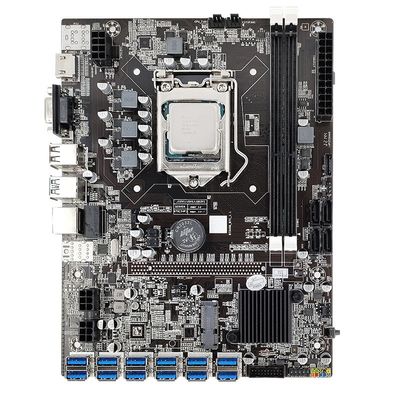

Intel® B75 Core™ 2th /3th Gen i3/i5/i7 CPU Support 12 GPU Cryptocurrency Eth Mining Rig motherboard 12 USB3.0 to PCIE 16X
Key features

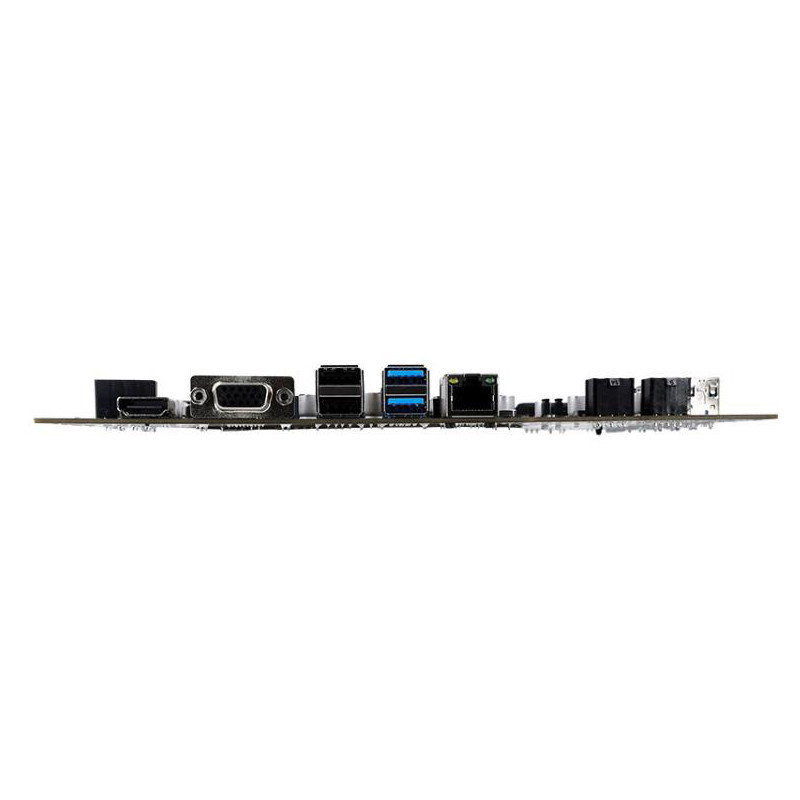

This Model ETH-YB12U-B75 Support LGA1155 Intel® Core™ 2th /3th Gen i3/i5/i7 CPU, Intel®B75 chipset , Support 2*DDR3 up to 32GB, It has 4*SATA3.0 interface, 1*mSATA support SSD, It has 1* VGA, 1*H-D-M-I ports.
It onboard 12*USB3.0 TO 12* PCIE 16X slot support 12GPU.
Size: 230*185mm
Weight: 0.6 KG
Specifications
| Model No. | ETH-YB12U-B75 |
| CPU | Support LGA1155 Intel® Core™ 2th /3th Gen i3/i5/i7 CPU / Intel® Pentium® cpu / Intel® Celeron® CPU |
| Chipset | Intel®B75 chipset |
| Momory | Support 2*DDR3 1600/1333 MHz ram,Max to 32GB |
| Storage |
4*SATA3.0 1*mSATA |
| Video | 1*H-D-M-I + 1* VGA, |
| Display | 12*USB3.0 TO 8* PCIE 16X slot |
| USB |
Front USB:1*USB2.0 1*USB 3.0 Back USB:2*USB2.0 2*USB3.0 |
| LAN | 1* LAN |
| Power interface | 24PIN power interface |
| Power type | ATX Power supply |
| Power input | AC 110~240V |
| Working temperature | -10℃ ~ +60℃ |
| Storage temperature | -20℃ ~ +70℃ |
| Operating humidity | 5% to 95% relative humidity, no condensation |
| Shaking | 0.5g rms/5-500HZ/random/operating |
| Dimension | 230mm*185mm |
| Weight | 0.6 KG |
