| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | ETH-YB8C-B75-65 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Processor: | Support LGA1155 Intel® Core™ 3th Gen I3/i5/i7 | Memory: | Support 1*DDR3 Max To 8GB |
|---|---|---|---|
| Chipset: | Intel®B75 Chipset | USB: | 2* USB2.0 , 2*USB3.0 |
| PCIe Slot: | 8* PCIE X16 Slot With Spacing Is 65mm | Size: | 595*180 Mm |
| Power: | ATX Power Supply | ||
| Highlight: | 65mm atx motherboard for mining,Cryptocurrency atx motherboard for mining |
||

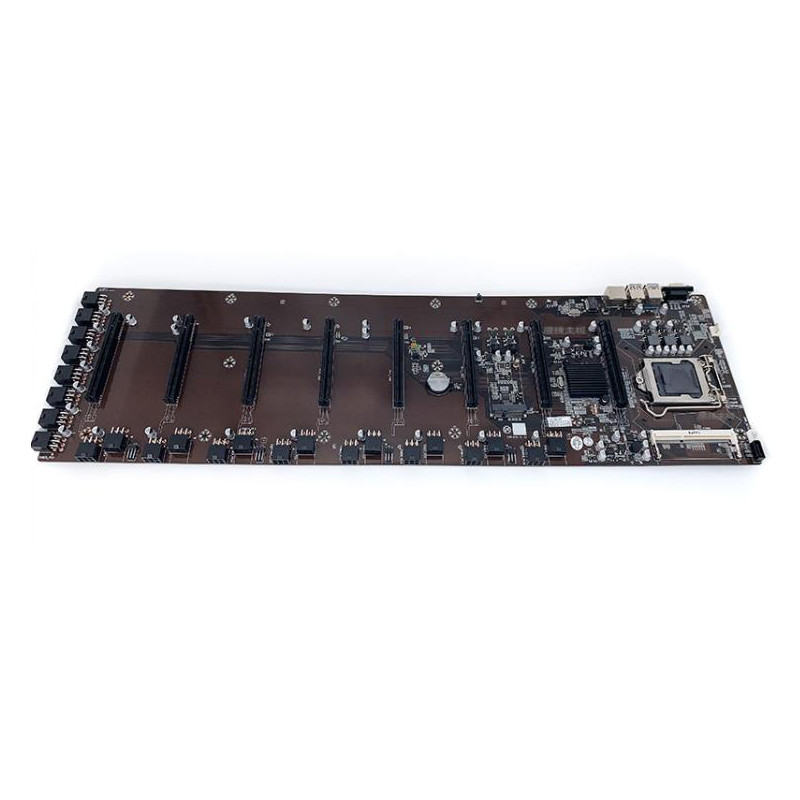

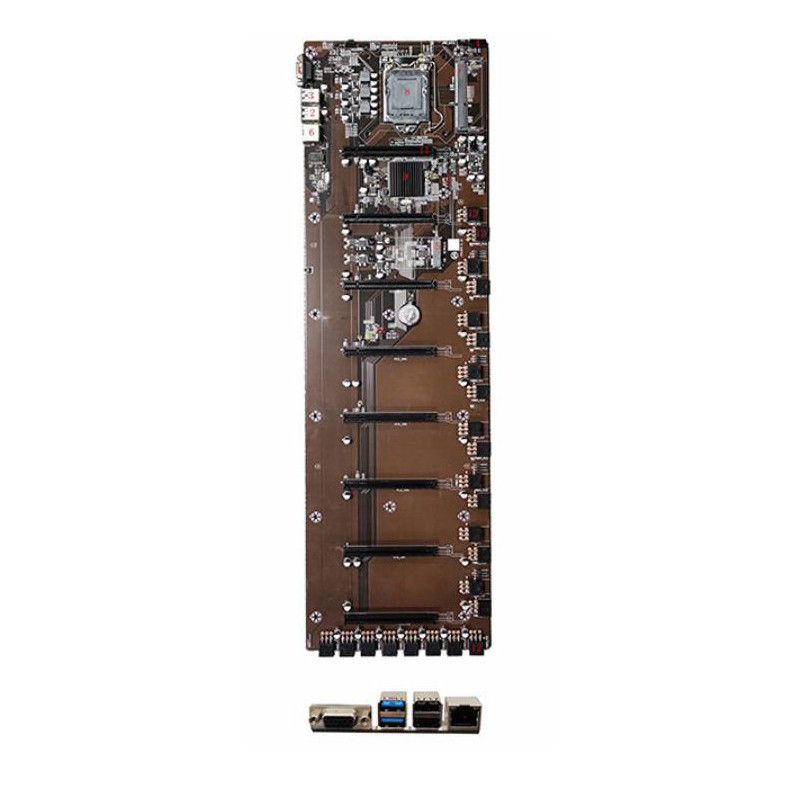

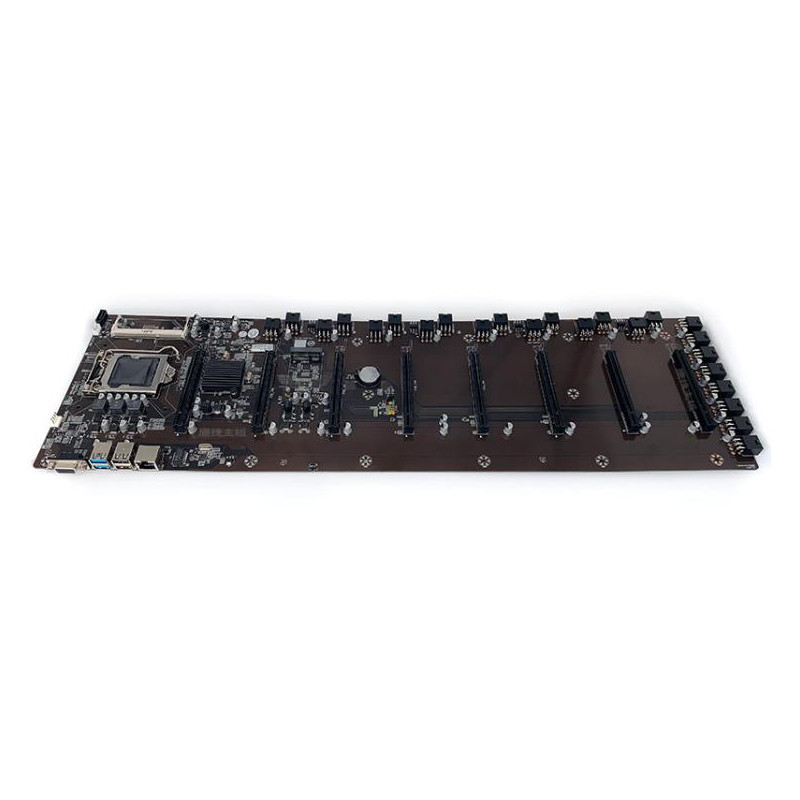

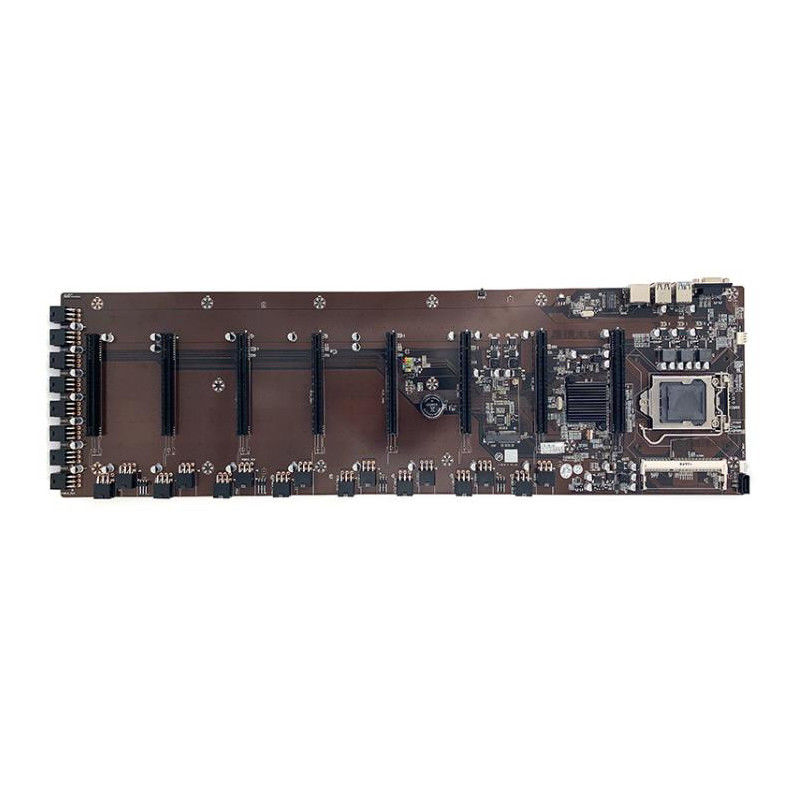

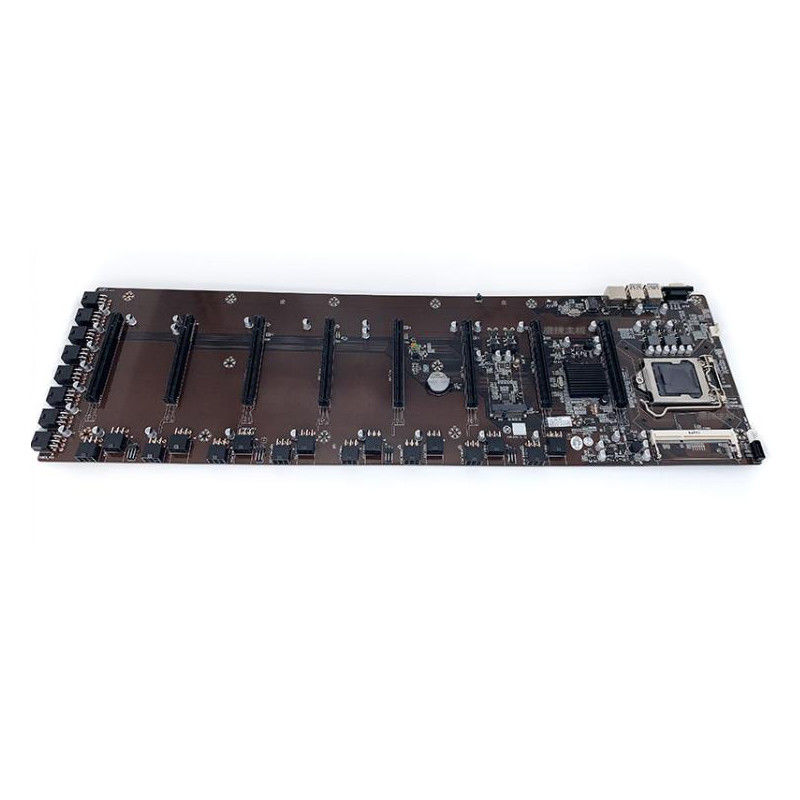

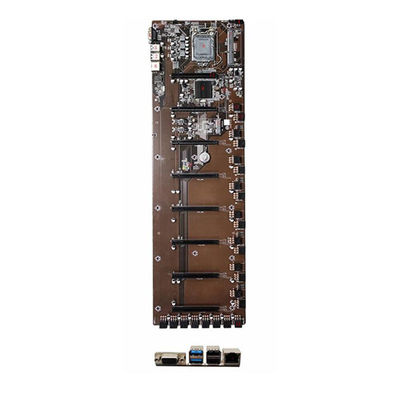

Intel®B75 3th i3/i5/i7 Cryptocurrency Ethereum coin Miner Rig mainboard 8PCIE 16X with slots spacing 65mm
Key features
Support LGA1155 Intel® Core™ 3th Gen i3/i5/i7 CPU
Intel®B75 chipset
Support 1*DDR3 1600/1333 MHz ram,Max to 8GB
1*SATA3.0
1* MSATA support SSD
1* VGA
2* USB2.0 , 2*USB3.0
1* LAN
8* PCIE X16 slot with spacing is 65mm
24PIN power interface
Support power AUTO_ON
ATX Power supply
Size : 595*180 mm
Weight : 1KG
Specifications
| Model No. | ETH-YB8C-B75-65 |
| CPU | Support LGA1155 Intel® Core™ 3th Gen i3/i5/i7 CPU / Intel® Pentium® cpu / Intel® Celeron® Ivy Bridge CPU |
| Chipset | Intel®B75 chipset |
| Momory | Support 1*DDR3 1600/1333 MHz ram,Max to 8GB |
| SATA | 1*SATA3.0 |
| SSD | 1* MSATA support SSD speed 6Gbps (64GB/128GB/256GB/512GB) |
| VGA | 1* VGA |
| USB | 2* USB2.0 , 2*USB3.0 |
| LAN | 1* LAN |
| PCI-E | 8* PCIE X16 slot with spacing is 65mm |
| Power interface |
24PIN power interface Support power AUTO_ON |
| Power type | ATX Power supply |
| Power input | AC 110~240V |
| Working temperature | -10℃ ~ +60℃ |
| Storage temperature | -20℃ ~ +70℃ |
| Operating humidity | 5% to 95% relative humidity, no condensation |
| Shaking | 0.5g rms/5-500HZ/random/operating |
| Dimension | 595*180 mm |
| Weight | 1KG |
