| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | ETH-YB8C-B85-65 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Processor: | 4th Gen I3/i5/i7 CPU | Memory: | Support 1*DDR3 Max To 8GB |
|---|---|---|---|
| Chipset: | Intel®B85 Chipset | USB: | 4*USB3.0 |
| PCIe Slot: | 8* PCIE X16 Slot With Spacing Is 65mm | Size: | 600*180 Mm |
| Power: | ATX Power Supply | ||
| Highlight: | 65mm motherboard 8 gpu slots,motherboard 8 gpu slots,8 Gpu miner mainboard |
||

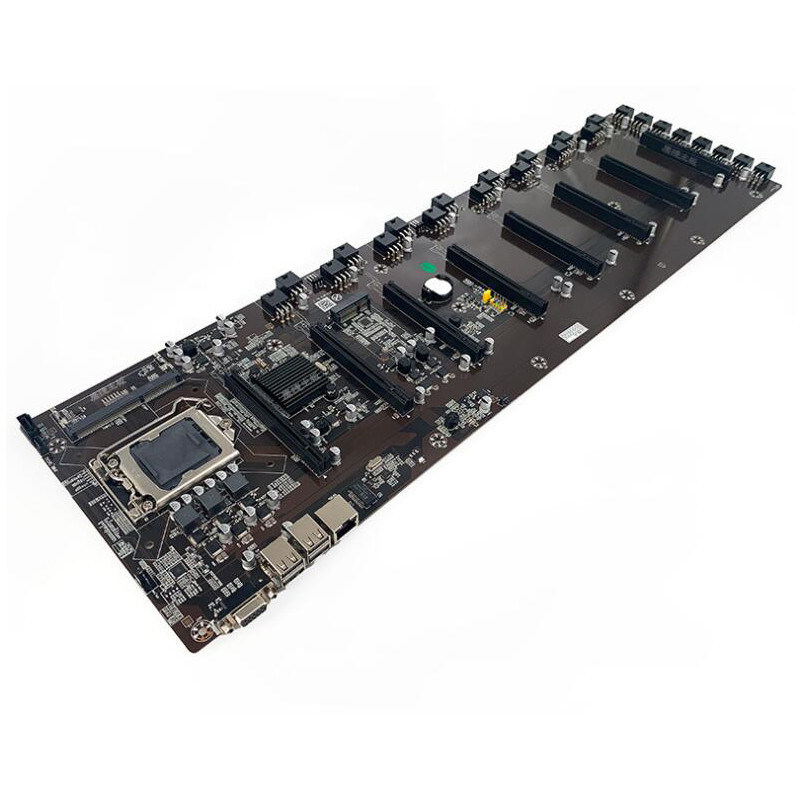

Intel® B85 intel 4th i3/i5/i7 Support 8 GPU 65mm spacing Cryptocurrency Eth Miner Rig motherboard
Key features
Support LGA1150 Intel® Core™ 4th Gen i3/i5/i7 CPU
Intel®B85 chipset
Support 1*DDR3 1600/1333/1066 MHz ram,Max to 8GB
1*SATA3.0
1*MSATA
1* VGA
4*USB3.0
1* LAN
8 * PCI-E X16 (with 65mm spacing)
ATX Power supply support AUTO_ON
Size: 600*180 mm
Weight: 1.0KG
Specifications
| Model No. | ETH-YB8C-B85-65 |
| CPU | Support LGA1150 Intel® Core™ 4th Gen i3/i5/i7 CPU / Intel® Pentium® cpu / Intel® Celeron® CPU |
| Chipset | Intel®B85 chipset |
| Momory | Support 1*DDR3 1600/1333/1066 MHz ram,Max to 8GB |
| Storage |
1*SATA3.0 1*MSATA |
| Video | 1* VGA |
| USB | 4*USB3.0 |
| LAN | 1* LAN |
| PCI-E | 8 * PCI-E X16 (with 65mm spacing) |
| Power interface | 24*POWER_PE |
| Power type | ATX Power supply support AUTO_ON |
| Power input | AC 110~240V |
| Working temperature | -10℃ ~ +60℃ |
| Storage temperature | -20℃ ~ +70℃ |
| Operating humidity | 5% to 95% relative humidity, no condensation |
| Shaking | 0.5g rms/5-500HZ/random/operating |
| Dimension | 600*180 mm |
| Weight | 1.0KG |
