| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | ETH-YB5C-X79-60 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Processor: | Support LGA2011 Intel®Xeon E5 Processors | Memory: | Support 1*DDR3 Ram |
|---|---|---|---|
| Chipset: | Intel® X79 Express Chipset | USB: | 4*USB |
| PCIe Slot: | 5* PCIE3.0 X8 Slot With Slots Spacing Is 60mm | Size: | 322*188 Mm |
| Power: | ATX Power Supply | ||
| Highlight: | LGA2011 Mining PC Motherboard,Mining PC Motherboard PCIE X8 |
||

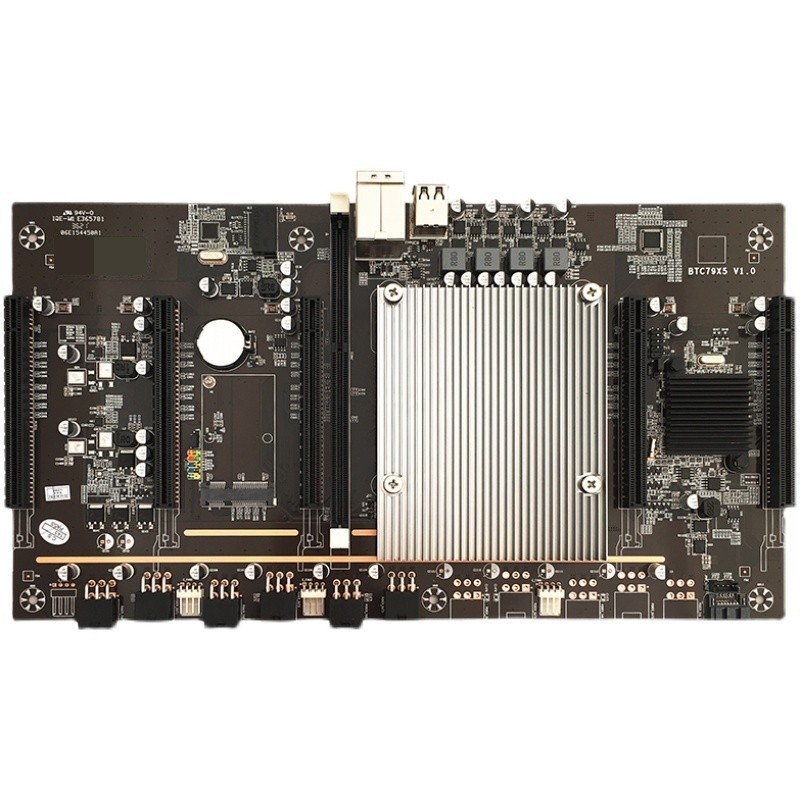

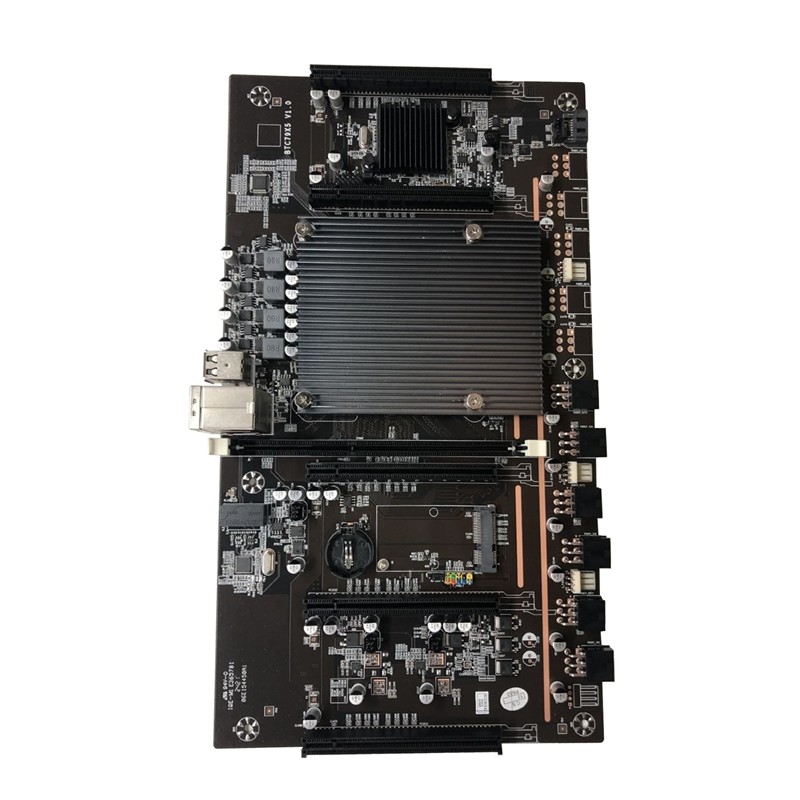

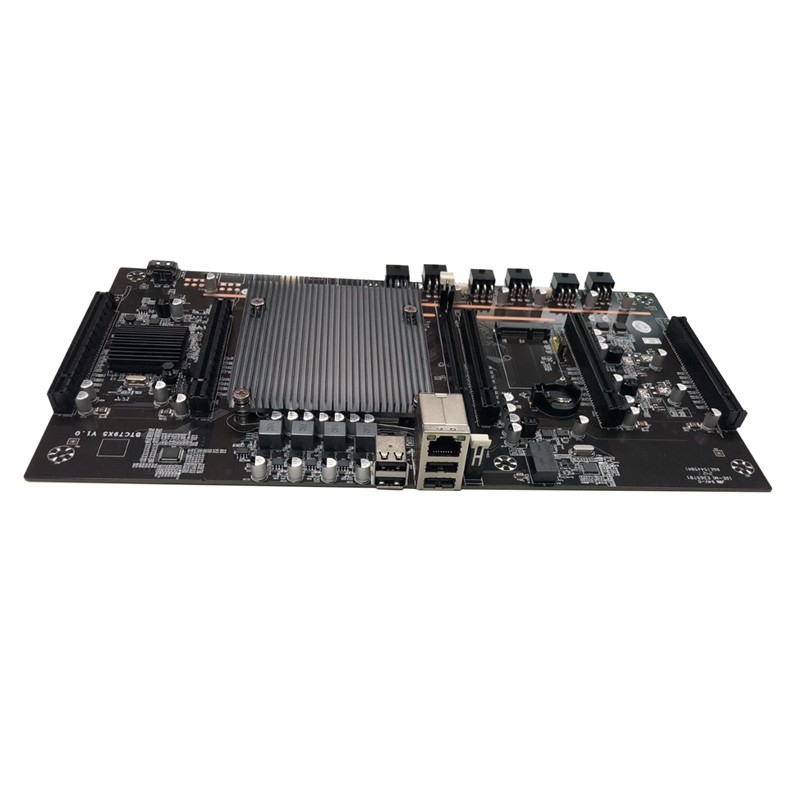

LGA2011 Intel® X79 Cryptocurrency Ethereum Miner Rig mainboard 5 PCIE X8 60mm spacing
Key features
Support LGA2011 Intel®Xeon E5 processors
Intel® X79 Express Chipset
Support 1*DDR3 DDR3 800/1066/1333MHz
1*SATA3.0
1* MSATA support SSD speed 6Gbps
4* USB2.0
1* LAN
5* PCIE3.0 X8 slot with spacing is 60mm
Support RTX3060,RTX3080 , RX570 graphic cards
ATX Power supply
Size : 322*188 mm
Weight: 1.2KG
Specifications
| Model No. | ETH-YB5C-X79-60 |
| CPU |
Support LGA2011 Intel®Xeon E5 processors Xeon Processor E5-2603 Xeon Processor E5-4603 Xeon Processor E5-2609 Xeon Processor E5-2603 V2 Xeon Processor E5-4603 V2 Xeon Processor E5-2609 V2 Xeon Processor E5-2620 Xeon Processor E5-2620 V2 Xeon Processor E5-4607 V2 Xeon Processor E5-2618L V2 |
| Chipset | Intel® X79 Express Chipset |
| Momory | Support 1*DDR3 DDR3 800/1066/1333MHz |
| SATA | 1*SATA3.0 |
| SSD | 1* MSATA support SSD speed 6Gbps (64GB/128GB/256GB/512GB) |
| USB | 4* USB2.0 |
| LAN | 1* LAN |
| PCI-E |
5* PCIE3.0 X8 slot with spacing is 60mm Support RTX3060,RTX3080 , RX570 graphic cards |
| Power type | ATX Power supply |
| Power input | AC 110~240V |
| Working temperature | -10℃ ~ +60℃ |
| Storage temperature | -20℃ ~ +70℃ |
| Operating humidity | 5% to 95% relative humidity, no condensation |
| Shaking | 0.5g rms/5-500HZ/random/operating |

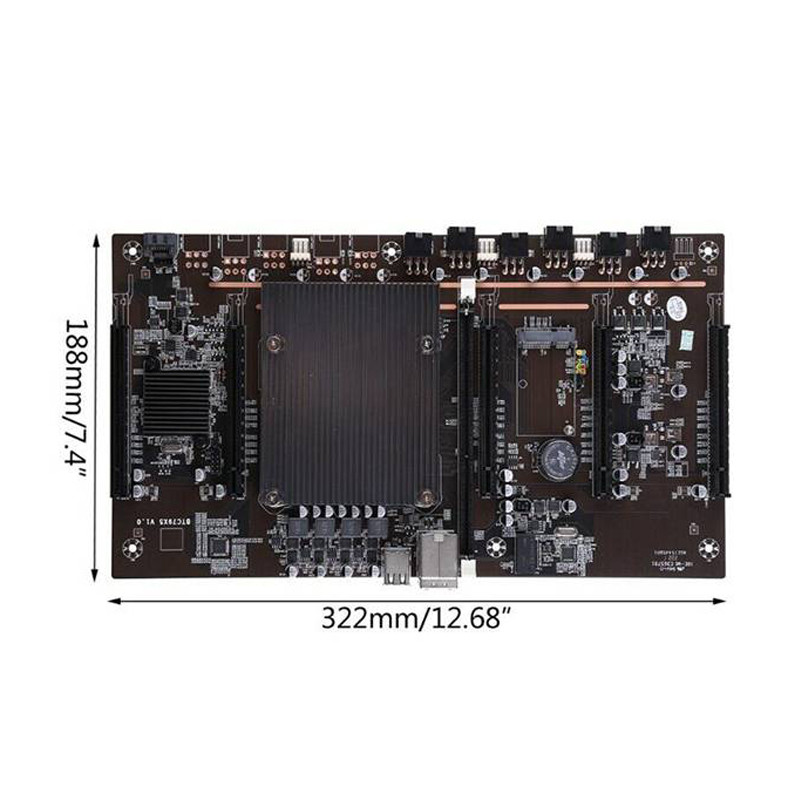

| Dimension | 322*188 mm |
| Weight | 1.2KG |
