| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | ETH-YB8U-B75 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Processor: | Support 2th /3th Gen I3/i5/i7 CPU | Memory: | Support 2*DDR3 Max To 16GB |
|---|---|---|---|
| Chipset: | Intel®B75 Chipset | Video: | 1* VGA, 1*H-D-M-I |
| PCIe Slot: | 8*USB3.0 TO 8* PCIE 16X Slot | Size: | 230mm*185mm |
| Storage: | 4*SATA3.0 + 1*Mini SATA | ||
| Highlight: | 8 GPU Mining PC Motherboard,USB3.0 Mining PC Motherboard,Eth crypto mining motherboard |
||

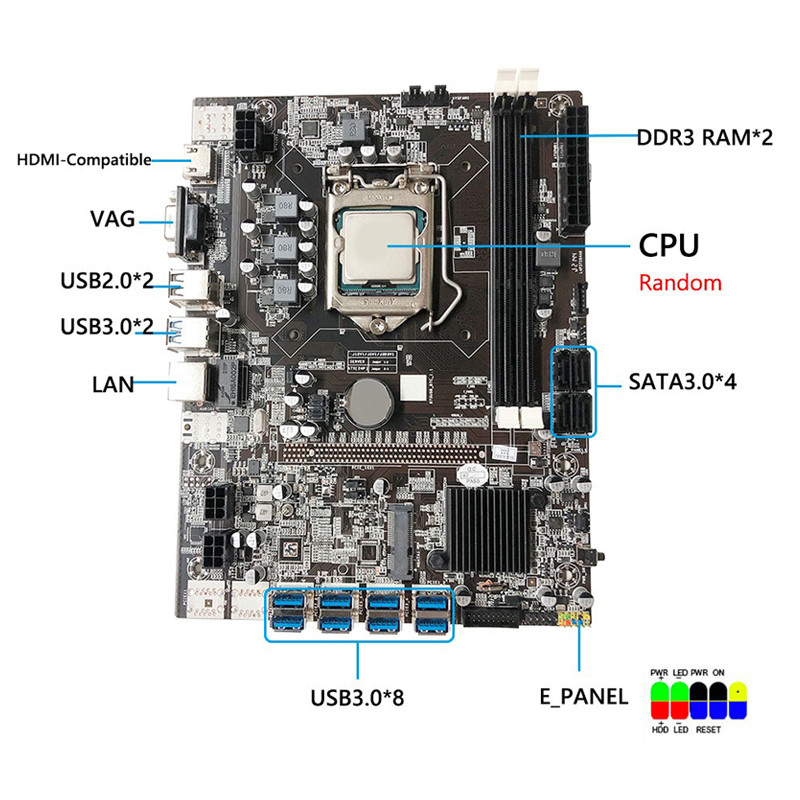

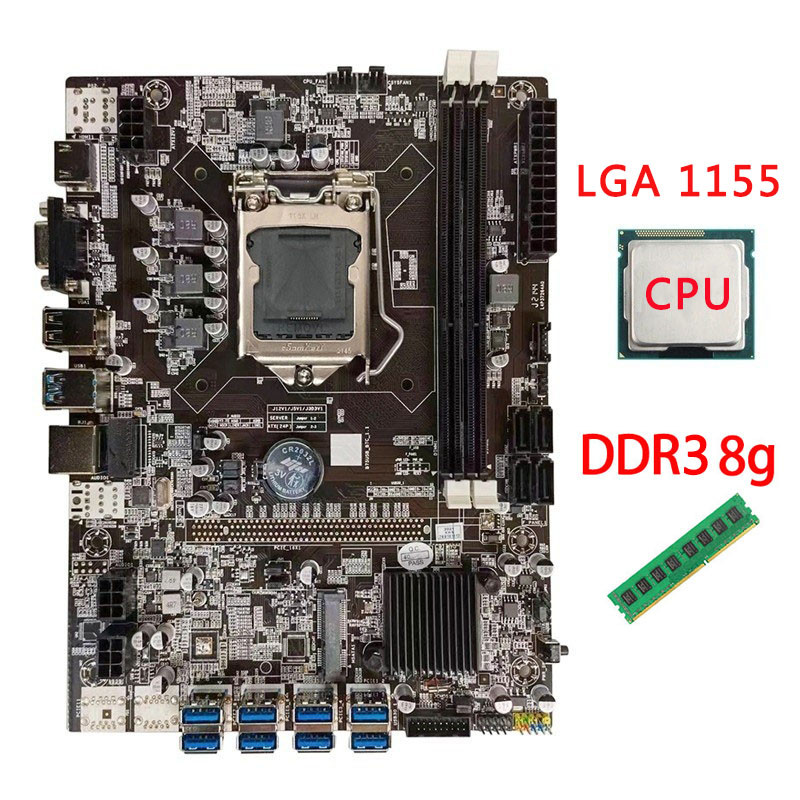

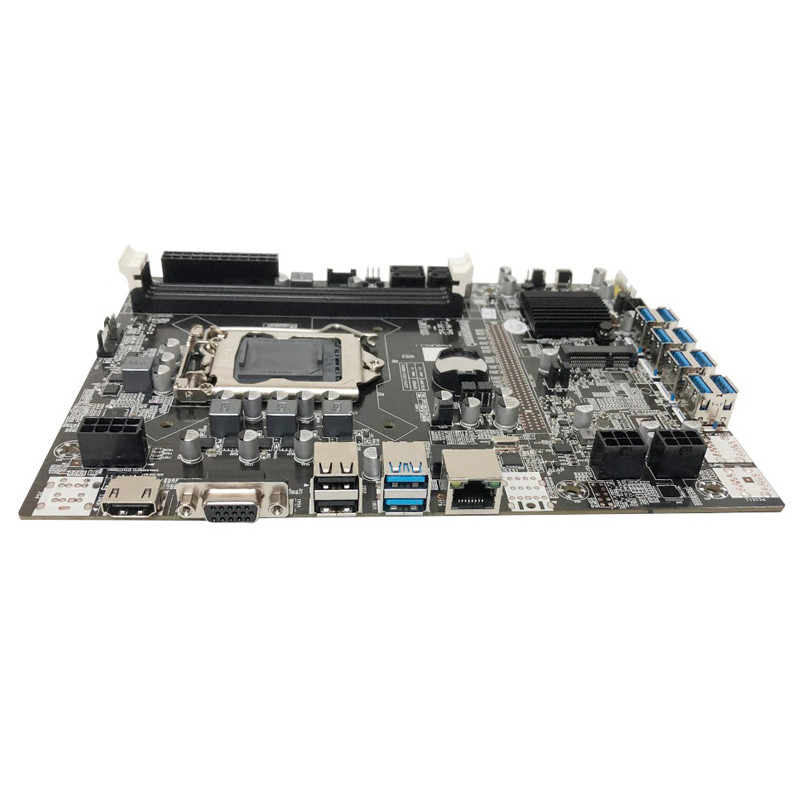

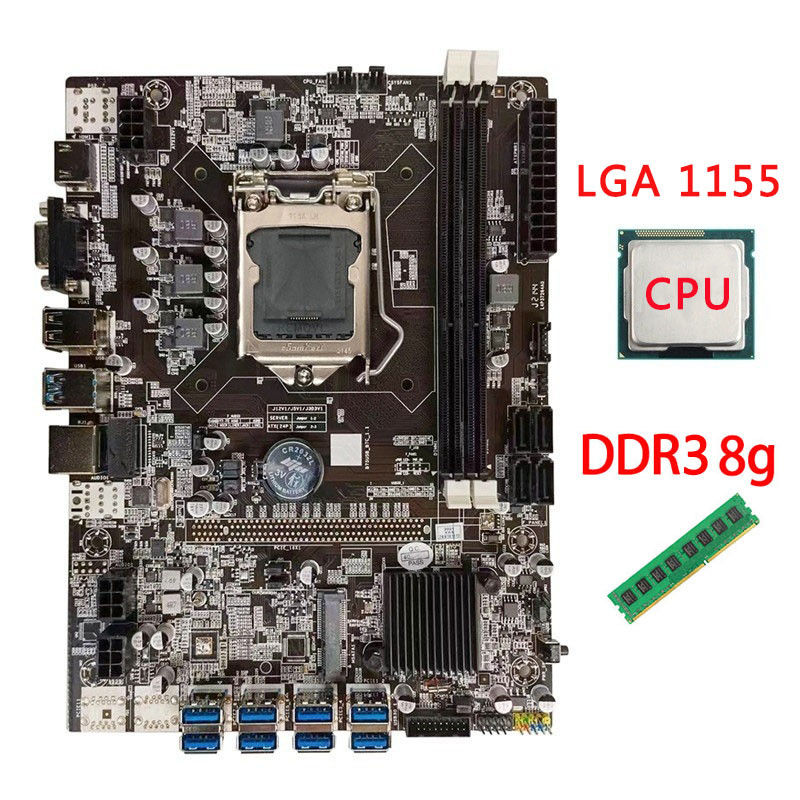

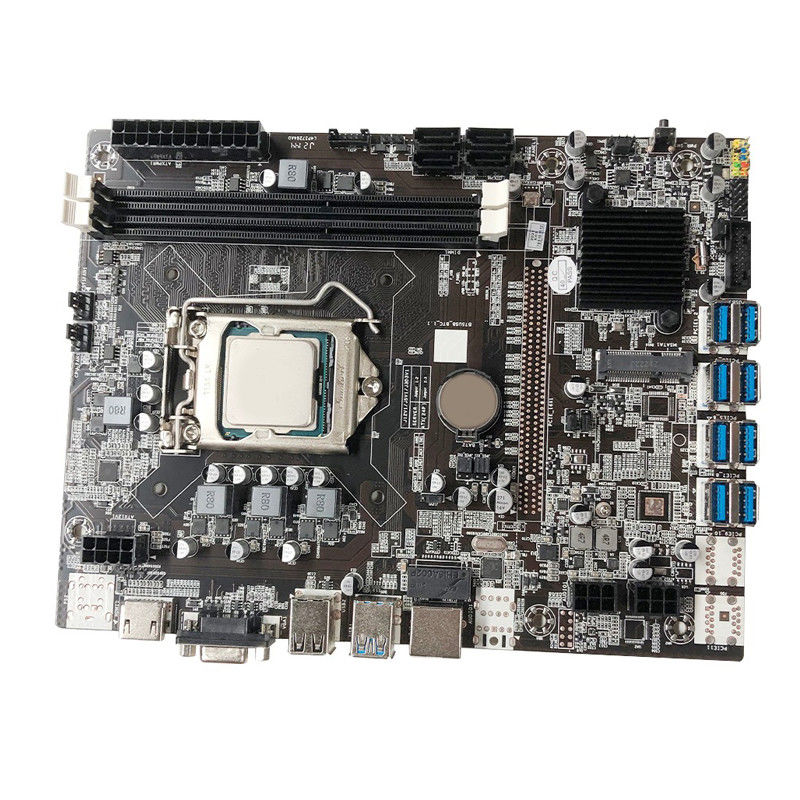

Intel® B75 Support 8 GPU Eth Mining Rig Cryptocurrency motherboard 8 USB3.0 to 8 PCIE 16X
Key features
Support LGA1155 Intel® Core™ 2th /3th Gen i3/i5/i7 CPU
Intel®B75 chipset
Support 2*DDR3 1600/1333 MHz ram,Max to 16GB
4*SATA3.0
1*mSATA
1* VGA, 1*H-D-M-I
8*USB3.0 TO 8* PCIE 16X slot
1* LAN
24PIN+8PIN power interface
ATX Power supply
Size: 230*185mm
Weight: 0.6 KG
Specifications
| Model No. | ETH-YB8U-B75 |
| CPU | Support LGA1155 Intel® Core™ 2th /3th Gen i3/i5/i7 CPU / Intel® Pentium® cpu / Intel® Celeron® CPU |
| Chipset | Intel®B75 chipset |
| Momory | Support 2*DDR3 1600/1333 MHz ram,Max to 16GB |
| Storage |
4*SATA3.0 1*mSATA |
| Video | 1* VGA, 1*H-D-M-I |
| Display | 8*USB3.0 TO 8* PCIE 16X slot |
| USB |
Front USB:1*USB2.0 1*USB 3.0 Back USB:2*USB2.0 2*USB3.0 |
| LAN | 1* LAN |
| Power interface |
24PIN+8PIN power interface Support power AUTO_ON |
| Power type | ATX Power supply |
| Power input | AC 110~240V |
| Working temperature | -10℃ ~ +60℃ |
| Storage temperature | -20℃ ~ +70℃ |
| Operating humidity | 5% to 95% relative humidity, no condensation |
| Shaking | 0.5g rms/5-500HZ/random/operating |
| Dimension | 230*185mm |
| Weight | 0.6 KG |
