| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | ITPC121-Y241 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, |
| Supply Ability: | 1000 units per Month |
| Screen Size: | 12.1 Inch | Color: | Black / Silver |
|---|---|---|---|
| Resolution: | 1024 X 768 | CPU: | Celeron® J1900 / I5-5200U |
| RAM+Storage: | 8GB DDR4 +64GB SSD | Waterproof And Dustproof: | IP65 |
| Serial Ports: | 2* RS232 COM | Casing Material: | Aluminum Alloy Case |

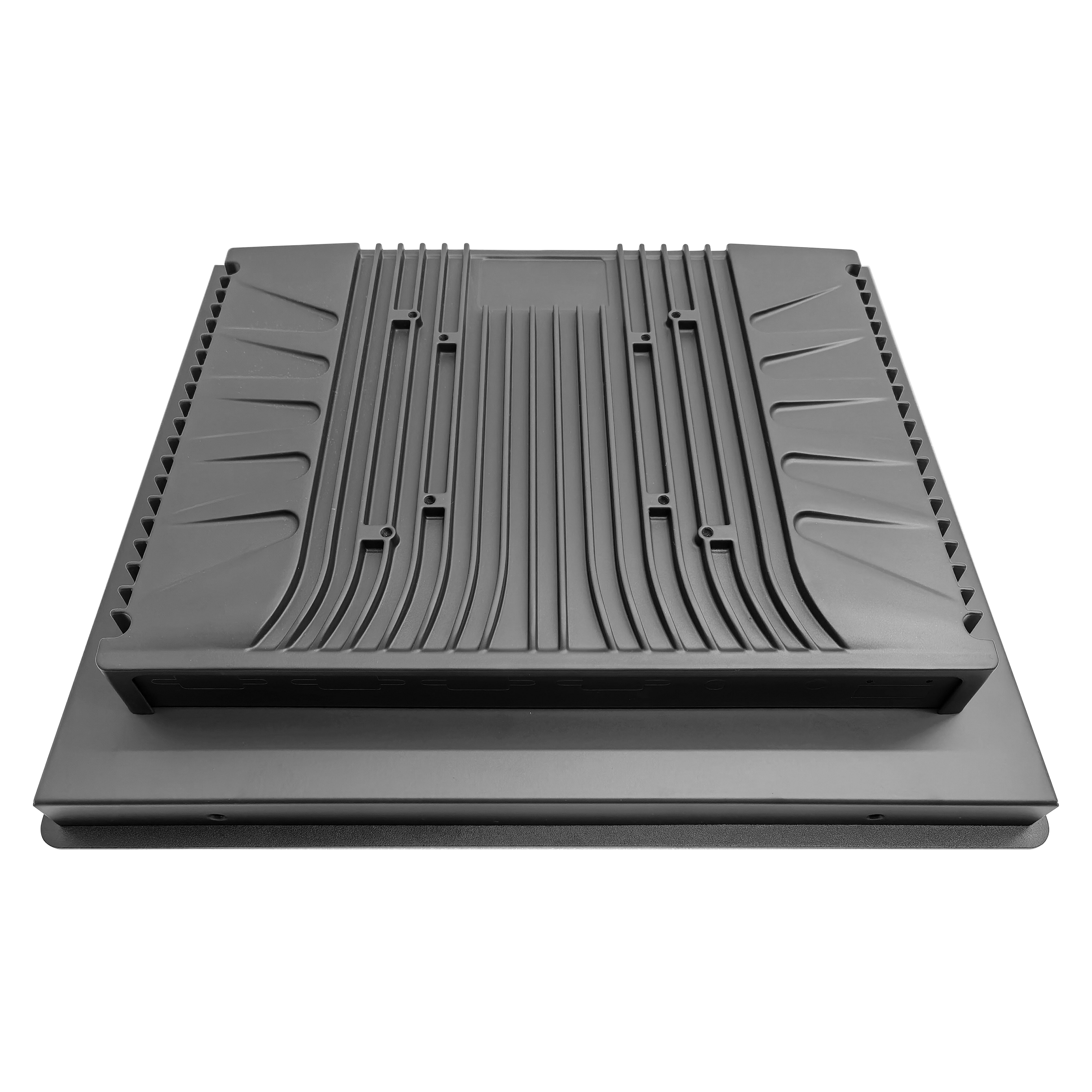

12.1 inch Quad core J1900 2COM 4USB industrial panel PC with Capacitive touchscreen
This industrial-grade human-machine interaction device features a high-strength aluminum alloy enclosure, combining low power consumption with excellent stability, specially designed for demanding industrial environments. Built around reliability, it enhances environmental adaptability, expandability, and compatibility, and can be widely applied in:
Features
Specifications
Display Parameters
| Specification | Parameter |
| Screen Size | 12.1 inch |
| Resolution | 1024 x 768 |
| Brightness | 250~300 cd/m², customizable high-brightness 800~1000 cd/m² |
Touch Parameters
| Type | Capacitive touch, non-touch optional |
| Click Life | Capacitive: >50 million times |
Hardware Configuration
| Processor | Standard: i5-5200U / J1900; optional: I3, I5, I7 (4th, 6th, 8th gen, etc.) |
| Memory | 8GB RAM, other specifications available on request |
| Storage | 64GB SSD, other specifications available on request |
| Operating System | Pre-installed Win10; supports Win7 / 10 / 11 / Linux |
| RJ45 Ethernet | Integrated |
| Wi-Fi | Integrated |
| Bluetooth | Integrated |
| Speaker | Integrated |

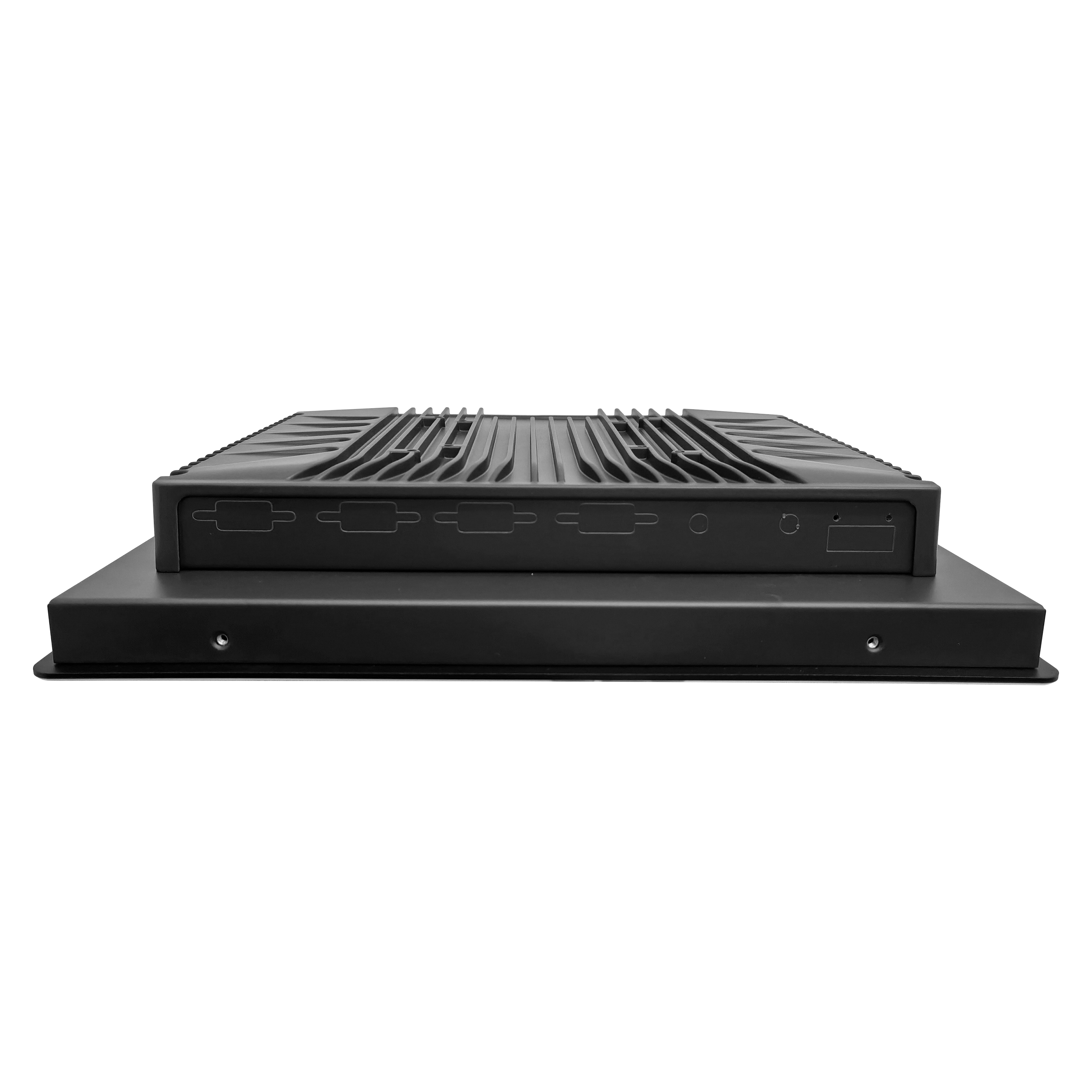

I/O Interfaces
| Power Port | 1 x DC |
| USB | 4 x USB |
| COM | 2 x RS232 |
| LAN Port | 1 x RJ45 |
| HDMI | 1 x HDMI |
Function Modules
| Card Reader Module | / |
| QR Code Scanner | / |
| 4G Module | None, optional upgrade available |
Other Parameters
| Temperature / Humidity | Operating: 0~60°C; Storage: -10~70°C; Humidity: 95% non-condensing |
| Protection Grade | Front panel IP65, dustproof and waterproof |
| Enclosure Material | All-aluminum alloy |
| Appearance Color | All-black |
| Packing List | Power adapter AC100V~240V, 50/60Hz, DC 12V output |
| Mounting Method | Embedded / wall-mounted / desktop / articulated arm |
| Warranty Service | Free warranty for 1 year |
| Repair Method | Return to factory for repair |
