Material: | Aluminum Alloy | Screen: | 19 Inch Capacitive Touch Screen |
---|---|---|---|
Color: | Black / Silver | Brightness: | 400cd/m2 |
Resolution: | 1280*1024 | Processor: | Celeron J1900 2GHz Quad-cores |
Serial Ports: | 2* RS232 | RAM+ Storage: | 4GB + 64GB SSD |
Waterproof And Dustproof: | IP65 | ||
Highlight: | 19inch Industrial Panel PC,IP65 Industrial Panel PC,IP65 industrial touch panel computer |

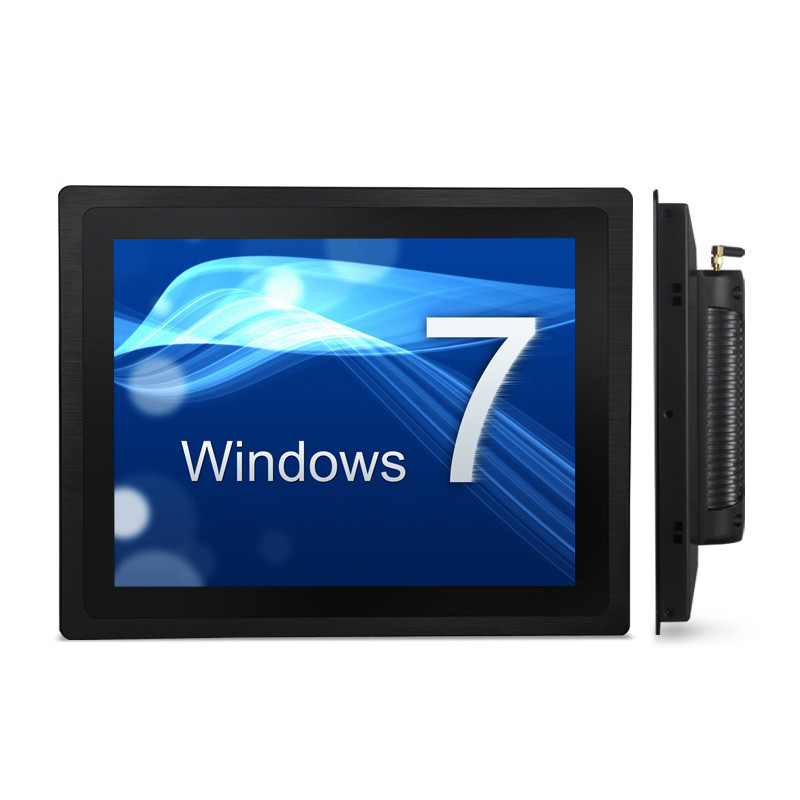

19 inch J1900 quad core touch screen industrial panel PC all in one tablet computer
Quick detail
Chassis material Aluminum Alloy
IP65 indoor & outdoor complied
Intel Celeron J1900 2GHz Quad-cores
64GB SSD
4GB DDR3
Screen size 19 inches
Resolution: 1280*1024
Capacitive touch screen
USB2.0*3+USB3.0*1
COM*2 RS232
WIFI*1
HDMI*1
VGA*1
RJ-45*1
12V 5A External power supply
Front panel IP65 dustproof and waterproof
Default Embedded install (desktop, wall-mounted, cantilever optional)
Working temperature : -20°C~70°C
Specifications
General info | Item No. | IPPC190-T012311 |
Casing Material | Aluminum Alloy | |
Color | Black / Silver | |
Dustproof and waterproof | IP65 | |
Operation System | WIN 7/8/10/XP LINUX | |
Weight | 5.4 KG | |
Size | 443*368*54.7 mm | |
Delivery time | 1-15 days depend on order quantity | |
Certificate | CE ROHS | |
Warranty | 1 years | |
Avalability of customization | YES | |
Mainboard info | CPU | Intel Celeron J1900 2GHz Quad-cores (4 cores) |
Hard disk | 64G SSD | |
Memory | 4GB DDR3 | |
Audio | Integrated audio chip | |
Network | Integrated gigabit network card | |
WIFI | Inner | |
Graphics | Integrated | |
System | WIN 7 as default | |
Speaker | Inner | |
Screen info | Screen size | 19 inches |
Resolution | 1280*1024 | |
Aspect Ratio | 4:3 | |
Gray-scale response time | 5ms | |
Panel Type Industrial | Control A style TFT | |
Contrast Ratio | 1000:1 | |
Backlight type | LED, lifespan≥50000h | |
Support color | 16.7M | |
Visual angle | 160 deg / 160 deg | |
Brightness | 400cd/m2 | |
Touch type | Default Capacitive (resistive and infrared optional) | |
Touches cycles | ≥ 50 million times | |

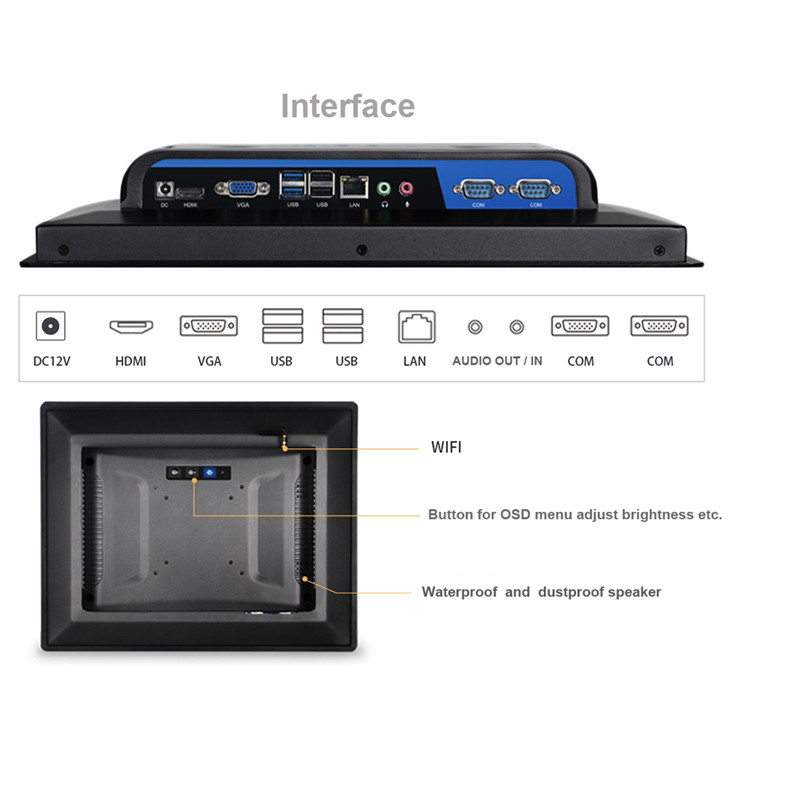

Interface info | USB | USB2.0*3+USB3.0*1 |
Expansion | COM*2 | |
Default protocol | RS232 | |
WIFI | Support | |
Power Supply | DC12V *1 PC | |
HDMI | HDMI*1 | |
VGA | VGA*1 | |
Network card | RJ-45*1 | |
Audio | Input *1 + output *1 | |
Other info | Power Supply | 12V 5A External |
Tablet Input voltage | 12V | |
Anti-static | contact 4KV, air 8KV | |
Monitor Power | ≤60W | |
Anti-vibration | GB2423 standard in China | |
Anti-interference | EMC & EMI anti-electromagnetic interference | |
Dustproof and waterproof | front panel IP65 dustproof and waterproof | |
Installation method | Default Embedded (desktop, wall-mounted, cantilever optional) | |
Ambient humidity | 5~85%, non-condensable | |
Working temperature | -20°C~70°C | |
Language menu | Chinese, English, German, French, Korean, Spanish, Italian, Russian,custumed |
Industrial pc Applications
Industry product auto- control
Automatic control equipment
Self service kiosk
Bank ATM machine
Artificial intelligence
Internet of Things
Business intelligence terminal
The intelligent Queuing machine
Smart medicine
