Home ProductsIndustrial Panel PC21.5 inch Quad core J6412 4COM 2LAN industrial panel PC with Capacitive touchscreen

21.5 inch Quad core J6412 4COM 2LAN industrial panel PC with Capacitive touchscreen

21.5 inch Quad core J6412 4COM 2LAN industrial panel PC with Capacitive touchscreen
21.5 inch Quad core J6412 4COM 2LAN industrial panel PC with Capacitive touchscreen 21.5 inch Quad core J6412 4COM 2LAN industrial panel PC with Capacitive touchscreen
Basic Information
Place of Origin: Shenzhen China
Brand Name: VEGASHINE / OEM
Model Number: IPPC215-W422-J6412
Minimum Order Quantity: 1 unit
Packaging Details: Carton
Delivery Time: 3 to 10 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000 units per Month
Contact Now
Screen Size: 21.5 Inch Color: Black / Silver
Resolution: 1920*1080 CPU: Celeron® Processor Quad-core J6412
RAM+Storage: 8GB DDR4 +128GB SSD Waterproof And Dustproof: IP65
Serial Ports: 4* RS232 COM Casing Material: Aluminum Alloy Case



21.5 inch Quad core J6412 4COM 2LAN industrial panel PC with Capacitive touchscreen





Quick detail

Chassis material Aluminum Alloy

IP65 indoor & outdoor complied

Intel® Celeron® Processor Quad-core J6412

8GB DDR4L(UP to 32G)

128G SSD

Screen size 21.5 inches

Resolution: 1920*1080

Capacitive touch screen

2*USB2.0

4*COM

1*HDMI

1*VGA

2*RJ-45 Gigabit LAN

12V 5A External power supply

Default Embedded install (desktop, wall-mounted, cantilever optional)

Working temperature : -20°C~60°C

Support Windows / Linux / Debian







Specifications



Product model IPPC215-W422-J6412
Basic parameters
  • CPU:Intel® Celeron® Processor Quad-core J6412,Frequency 2.0GHz, Max 2.6GHz
  • Integrated graphics: Intel® UHD Graphics for 10th Gen Intel® Processors,support OpenGL, Support OpenCL
  • Memory :8GB DDR4L(UP to 32G)
  • SSD:128GB

Display screen


  • Size :21.5 inch
  • Resolution :1920×1080
  • Wide-temperature,2070K colors or 24-bit true colors
  • LED backlight:lifetime>25000 hours
Touch screen Capacitive touchscreen

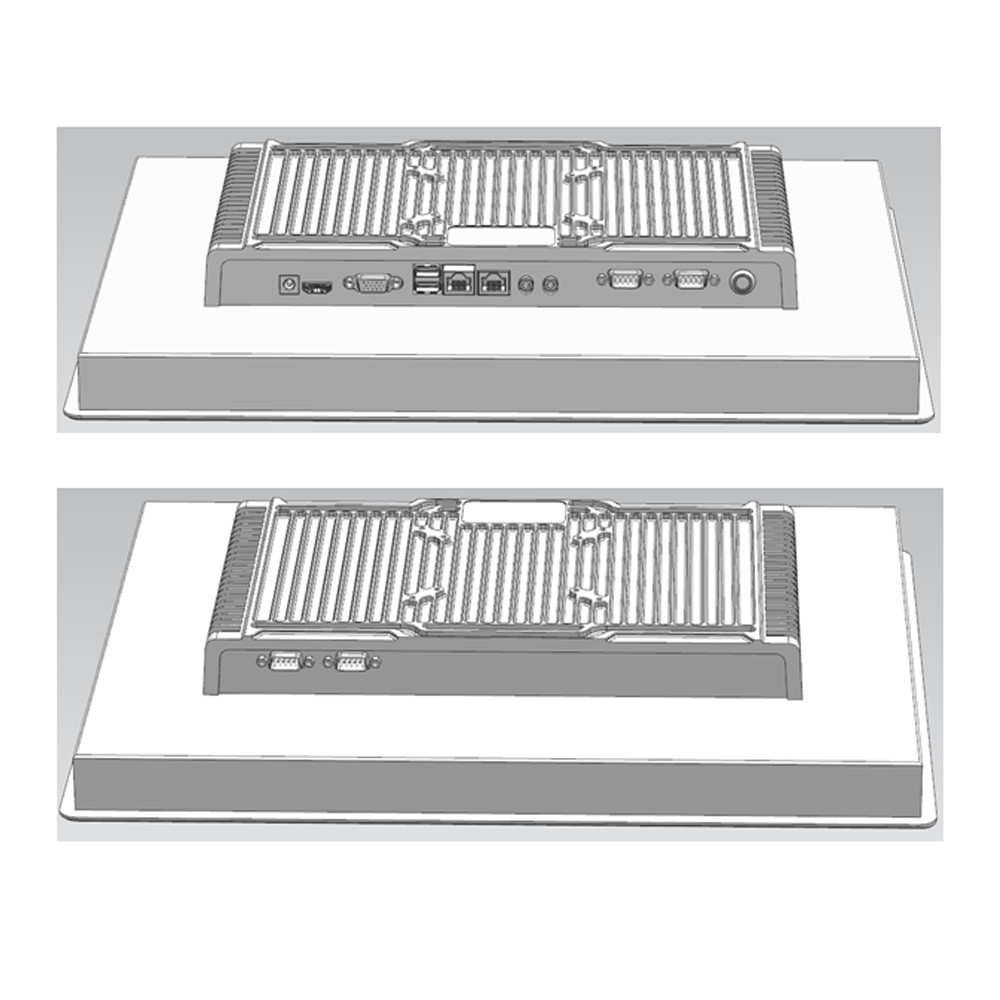

Hardware interface
  • 1 channel VGA interface
  • 4 channel DB9-232 interface (COM3/COM4/COM5/COM6),COM3 (can be customized as DB9-485)
  • 1 channel HDMI interface
  • 2 channel USB Host2.0 interface ,support usual USB device such as mouse, keyboard, U disk, etc.
  • 2* 1000M Ethernet LAN
  • 1 channel 3.5 audio interface +1 channel MIC interface
  • 1 channel DC5.5-2.1(DC12V) power input interface
  • 1 channel power button switch
  • WIFI (optional)
OS Windows10 (Does Not support Windows7)
Defend degree IP65 (front panel)
Working environment
  • Power :DC 12V/5A
  • Working temperature:-20~60℃
  • Storage temperature:-20~80℃
  • Working humidity:10～90%RH

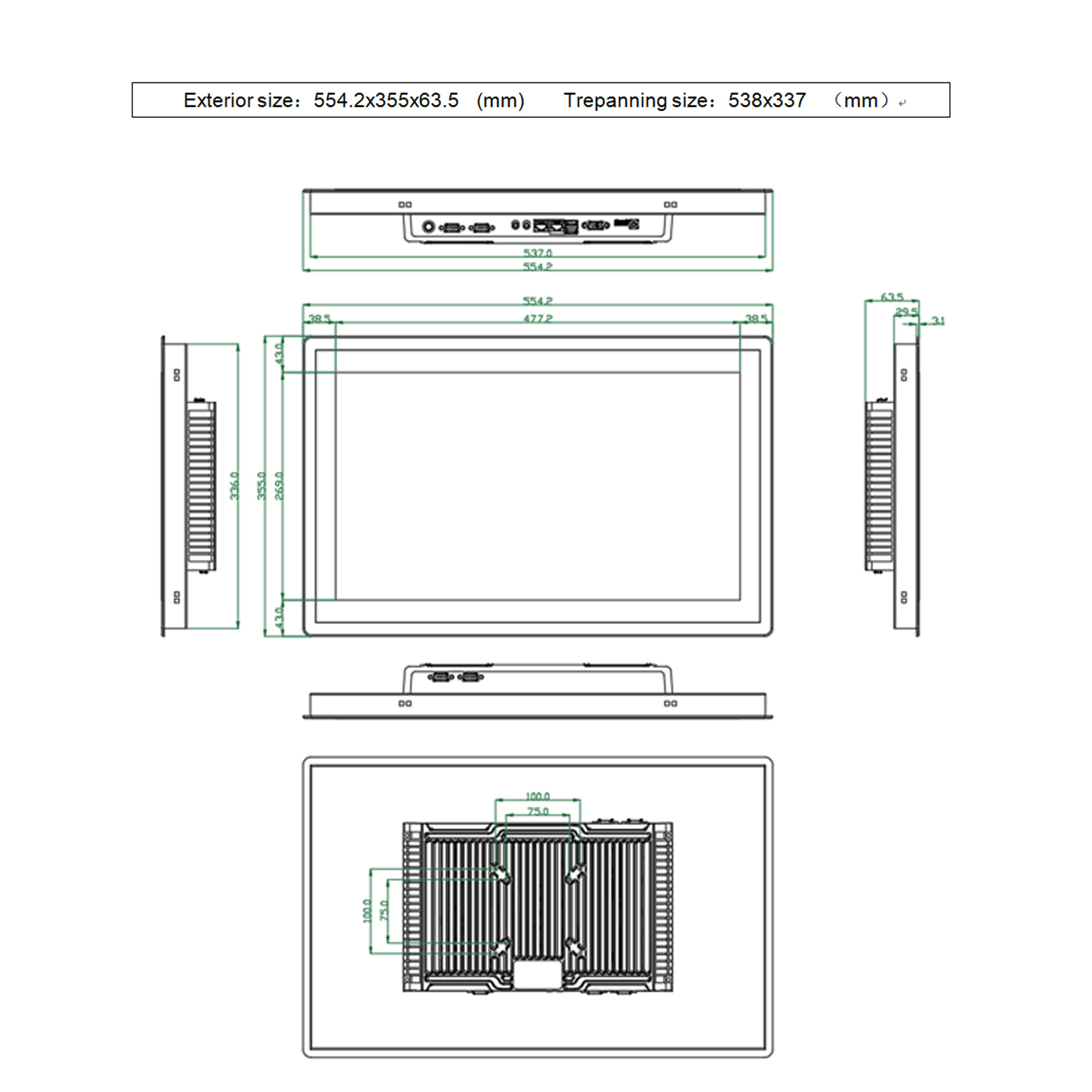

specification


  • Shell structure:Metal
  • Panel size:554.2x355(mm)
  • Trepanning size:538x337 (mm)
Application area
  • Industrial control, detection device, instruments and meters, security monitoring, medical apparatus and instruments, intelligent terminals embedded high-end application.
Software support
  • Support Windows / Linux / Debian





21.5 inch Quad core J6412 4COM 2LAN industrial panel PC with Capacitive touchscreen 021.5 inch Quad core J6412 4COM 2LAN industrial panel PC with Capacitive touchscreen 1
