| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | VGS-I945GV-2ISA |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Chipset: | Intel®945GV + ICH7 Chipsets | CPU: | Socket775 FSB 533/800/1066 CPU |
|---|---|---|---|
| RAM: | DDRII 400/533/667 SDRAM Up To 4GB | Display: | 1*VGA |
| COM: | 2*COM | ISA Slots: | 2* ISA Slots |
| Size: | Flex-ATX @ 305 Mm (L) × 244 Mm(W) | ||
| Highlight: | 2COM Industrial PC Motherboard,2ISA Slot Industrial PC Motherboard,945GV industrial pc mainboard |
||

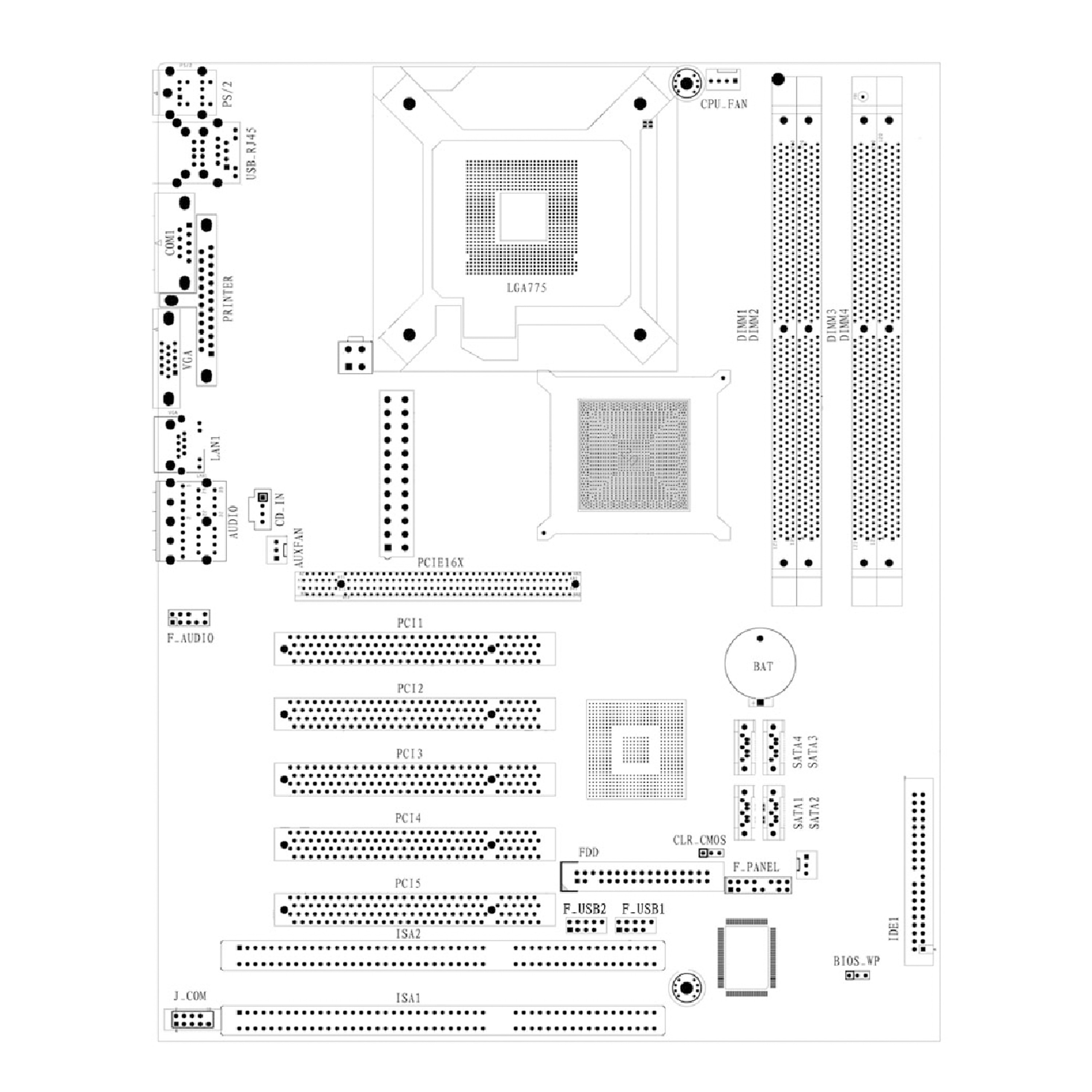

The Model No. VGS-I945GV-2ISA is Intel® 945GV Socket775 FSB 533/800/1066 Industrial motherboard with 2*ISA,5*PCI,2*COM,ATX industrial motherboard/mainboard for ISA computer/server
Quick Details
--Support Socket775 FSB 533/800/1066 CPU
--Intel®945GV + ICH7 Chipsets
--integrated with two RTL8111C Ethernet controllers
--2*ISA Slots
--2*COM ports
--5*PCI slots
--1* gigabit Lan
--Flex-ATX @ 305 mm (L) × 244 mm(W), 4 Layers
Specifications
| CPU | • Supports FSB 533/800/1066 CPU • Supports Intel® Pentium HT(Hyper Threading Technology)CPU • Supports Intel® Conroe LGA775 CPU • Supports Intel® Conroe-L LGA775 CPU • Supports Intel® Pentium D LGA775 CPU • Supports Intel® Pentium 4 LGA775 CPU • Supports Intel® Celeron D LGA775 CPU |
| Chipset | • Intel®945GV + ICH7 chipsets • ITE IT8712F LPC controller • RTL8111C Ethernet controller |
| Memory | • Four 240-pin DDRII sockets • Support DDRII 400/533/667 SDRAM up to 4GB |
| VGA | • Integrated Graphics controller in 945GV GMCH • Integrated Intel® Graphics Media Accelerator 950 • One VGA Port it can accelerate DirectX 9 performance of hardware,400MHz core frequency,up to 224MB display memory. |
| Ethernet | • Onboard two RTL8111C10/100/1000Base-T Ethernet controllers • Full-Duplex supported |
| IDE SATA & FDD | • One enhanced PCI IDE channels which support up to 2 IDE devices • Four SATA devices • Support ATA-100, data transfer rate up to 100MB/sec • One FDC supports 1.2M/1.44M/2.88MFDD |
| PCI-E PCI ISA AUDIO COM &LPT | • Support One PCI-E X16 devices • Support five PCI devices • Support two ISA devices • Support 7.1 HDAudio • Support two COM • Support one LPT |
System BIOS |
• Award BIOS with 4MB Firmware Hub • ACPI/PnP supported • Software WatchDog supported |
| I/O Output | • Two COM port & one Printer port • One DB-15 VGA port • PS/2 mouse and keyboard connectors • Double Deck downstream USB 2.0 ports • Two RJ-45 LAN ports |
| Expansion Slots | • Five PCI slot • Two ISA slot |
| Form Factor | • Flex-ATX @ 305 mm (L) × 244 mm(W), 4 Layers |
