| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | VGS-8601-3ISA |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Chipset: | VIA 8601A Or 8601T | CPU: | Socket 370 Processors With 133MHz FSB |
|---|---|---|---|
| RAM: | 2 X 168-pin SD-RAM DIMM Max.up To 512M | Display: | 1*VGA |
| COM: | 1*COM | Size: | Macro-ATX 192 Mm(W) X 244 Mm (L) |
| Highlight: | VIA 8601T Industrial PC Motherboard,VIA 8601A Industrial PC Motherboard,VIA 8601T computer mainboard |
||

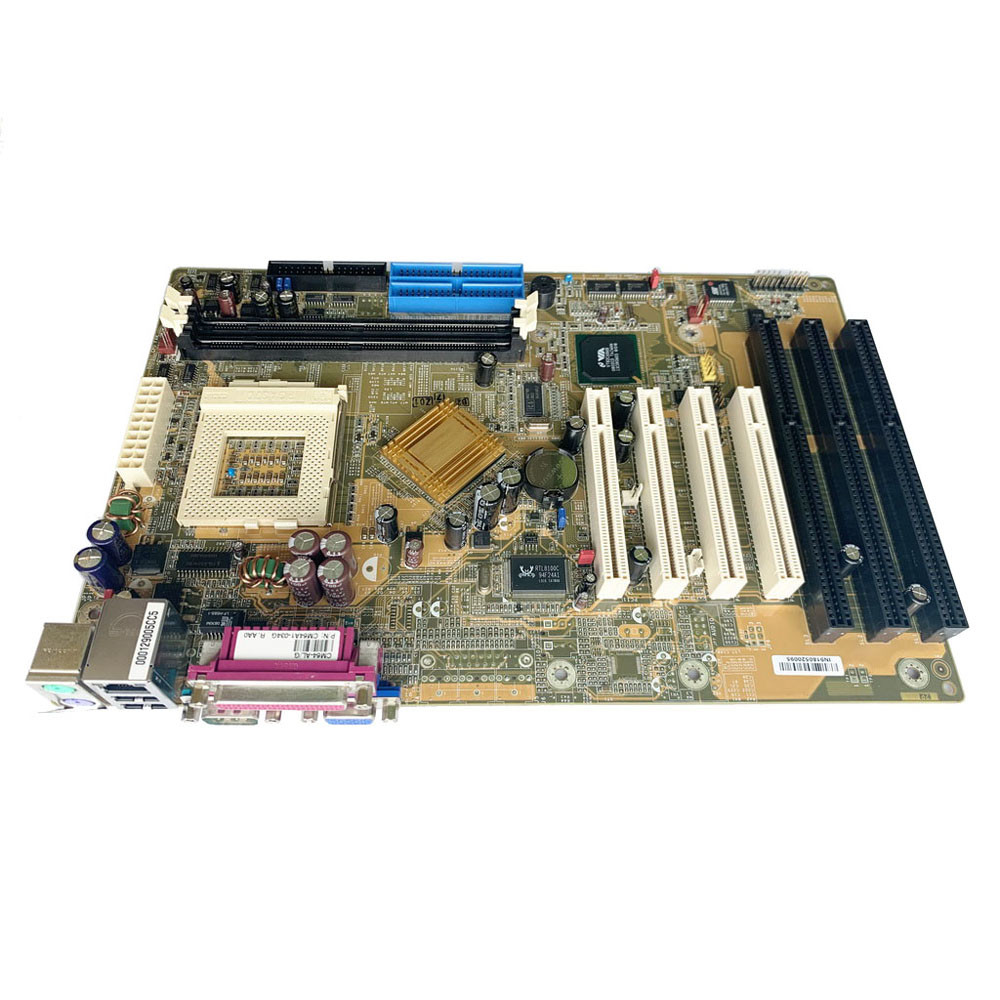

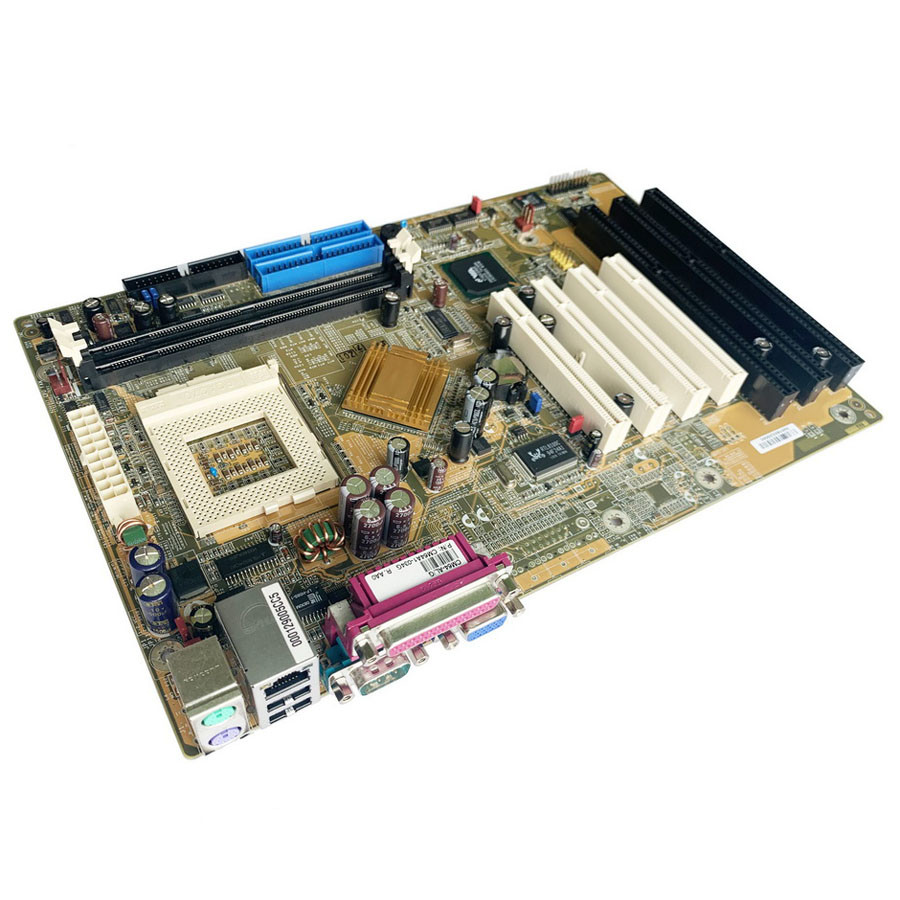

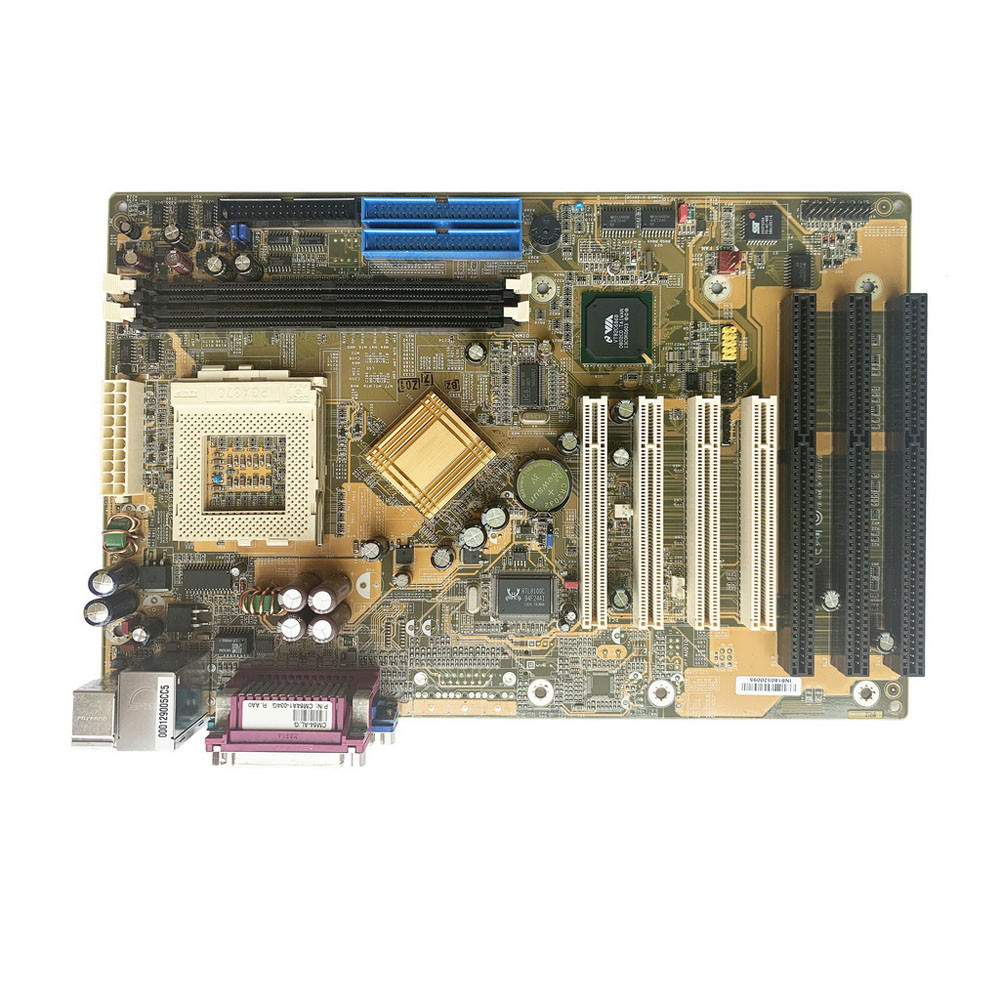

Socket 370 VIA 8601T 3 ISA slot industrial pc motherboard mainboard
Key features
Support Socket 370 processors with 133MHz FSB(INTEL Pentium 3/Celeron 2/3,Max 1.3Ghz)
VIA 8601T / VIA8601A chipset
2 x 168-pin SD-RAM DIMM max.up to 512M
4 X PCI expansion slot
3 X ISA expansion slot
2 X PS/2 ports for mouse and keyboard
1 X serial port
1 X VGA port
1 X parallel port
2 X USB 2.0 port
1 x LAN port
ATX power connector(20 pin)
Macro-ATX 192 mm(W) X 244 mm (L)
Specifications
| CPU | Support Socket 370 processors with 133MHz FSB(INTEL Pentium 3/Celeron 2/3,Max 1.3Ghz) |
| Chipset | VIA 8601A or 8601T North Bridge |
| VT82C686B South Bridge | |
| Memory | 2 x 168-pin SD-RAM DIMM max.up to 512M,PC100/PC133 SDRAM |
| VGA | Integrated SiS 301 Accelerator |
| Expansion Interface | 4 X PCI expansion slot |
| 3 X ISA expansion slot | |
| IDE | 2 X UltraDMA 133/100/66 Connetors |
| Audio | None |
| IO | The motherboard has a full set of I/O ports and connectors: |
| 2 X PS/2 ports for mouse and keyboard | |
| 1 X serial port | |
| 1 X VGA port | |
| 1 X parallel port | |
| 2 X USB 2.0 port | |
| 1 x LAN port | |
| ATX power connector(20 pin) | |
| BIOS | Award BIOS with 4Mbit Flash ROM |
| Supports Plug and Play 1.0B,APM 1.2, Multi Boot, DMI | |
| Supports ACPI revision 1.0 specification | |
| Accessories | 1 x 40 pin IDE cable |
| 1 x I/O shield | |
| Operation Temperature | 0-60°C |
| Operating Humidity | 0% ~ 93% (relative humidity; non-condensing) |
| Size | Macro-ATX |
| 192 mm(W) X 244 mm (L) |
