DFI HD620 Intel® H81 Motherboard With 2 ISA Slot 10 COM Dual LAN ATX Industrial Mainboard

Model No. HD620-H81 is Intel® LGA1150 ATX motherboard with 2*ISA, 4*PCI, 10*COM, 10*USB, dual LAN, DFI ATX industrial motherboard/mainboard for ISA computer/server

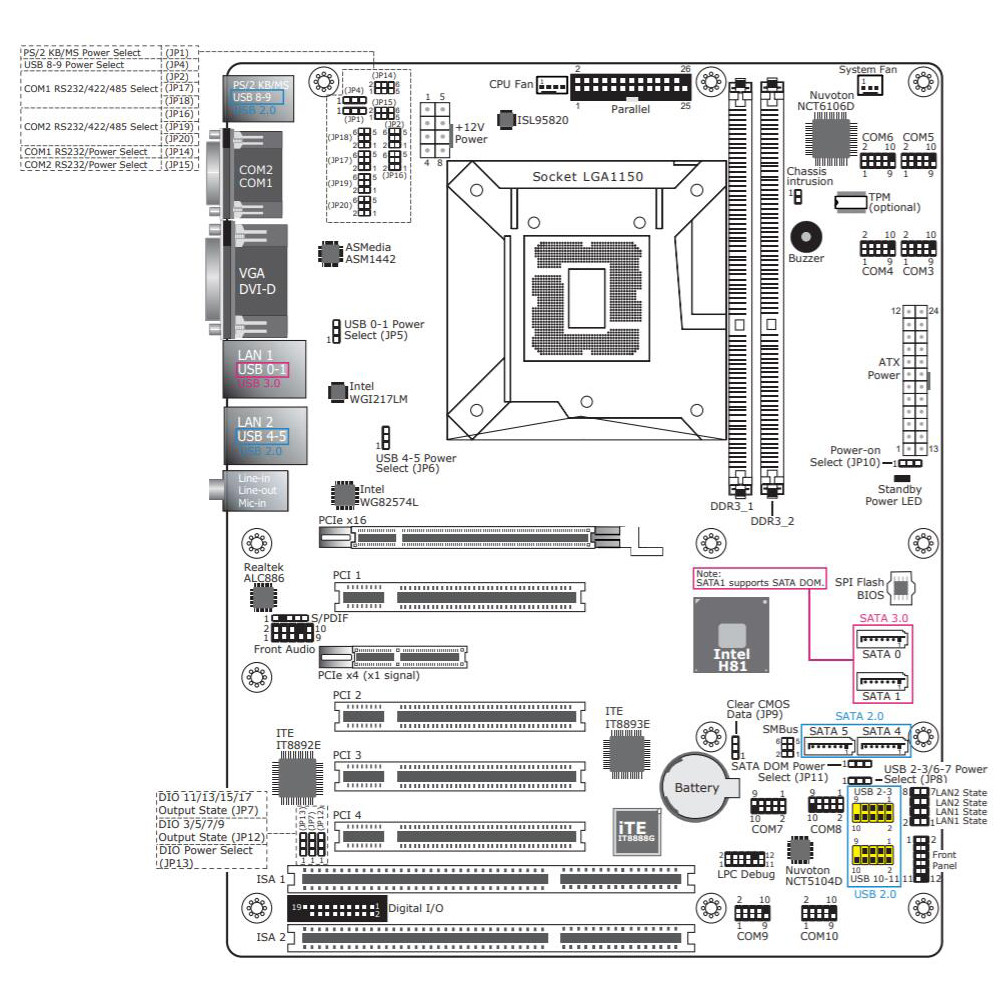

Quick Details

--LGA 1150 socket CPU,Support 4th Generation Intel^® Core™CPU

--Chipset Intel^® H81

--Support 2* DDR3 up to 16GB

--1* PCIe x16

--1 *PCIe x4 (x1 signal)

--4 *PCI

--2* ISA

--1 *VGA,

--1 *DVI-D

--2* gigabit LAN

--10* COM

--10* USB: 2* USB 3.0, 8 *USB 2.0

--4* SATA: 2 *SATA 3.0, 2* SATA 2.0

--1* Parallel

--DIMENSIONS:ATX form factor,305mm (12") x 244mm (9.6")

Specifications

Processor

4th Generation Intel® Core™ processors, LGA 1150 socket
Intel® Core™ i7-4790S Processor, 8M Cache, 4.0 GHz, 65W
Intel® Core™ i7-4770S Processor, 8M Cache, 3.9 GHz, 65W
Intel® Core™ i7-4770TE Processor, 8M Cache, 3.3 GHz, 45W
Intel® Core™ i5-4590S Processor, 6M Cache, 3.7 GHz, 65W
Intel® Core™ i5-4590T Processor, 6M Cache, 3.0 GHz, 35W
Intel® Core™ i5-4570S Processor, 6M Cache, 3.6 GHz, 65W
Intel® Core™ i5-4570TE Processor, 4M Cache, 3.3 GHz, 35W
Intel® Core™ i3-4360 Processor, 4M Cache, 3.7 GHz, 54W
Intel® Core™ i3-4350T Processor, 4M Cache, 3.1 GHz, 35W
Intel® Core™ i3-4340TE Processor, 4M Cache, 2.6 GHz, 35W
Intel® Core™ i3-4330 Processor, 4M Cache, 3.5 GHz, 54W
Intel® Core™ i3-4330TE Processor, 4M Cache, 2.4 GHz, 35W
Intel® Pentium® G3420 Processor, 3M Cache, 3.2 GHz, 53W
Intel® Pentium® G3320TE Processor, 3M Cache, 2.3 GHz, 35W
Intel® Celeron® G1820 Processor, 2M Cache, 2.7 GHz, 53W
Intel® Celeron® G1820TE Processor, 2M Cache, 2.2 GHz, 35W

Chipset

Intel® H81 Chipset

Memory

Two 240-pin DIMM up to 16GB Dual Channel DDR3 1333/1600MHz

BIOS

AMI SPI 64Mbit

Graphics

Intel® HD Graphics

OpenGL 4.0, DirectX 11.1

1 x DVI-D
1 x VGA
DVI-D/VGA: resolution up to 1920x1200 @ 60Hz

Expansion Interface

1 x PCIe x16 (Gen 2)
1 x PCIe x4 (Gen 2)
4 x PCI
2 x ISA

Audio

Audio Codec Realtek ALC886

Ethernet Controller

1 x Intel® 82574 PCIe (10/100/1000Mbps)
1 x Intel® I217LM (10/100/1000Mbps)

Rear I/O

2 x GbE (RJ-45)

2 x RS-232/422/485 (RS-232 w/ power) (DB-9)

2 x USB 3.0
4 x USB 2.0

1 x PS/2 (mini-DIN-6)

1 x VGA
1 x DVI-D

Audio:1 x Line-out,1 x Mic-in,1 x Line-in

Internal I/O

8 x RS-232 (2.0mm pitch)

4 x USB 2.0 or 1 Vertical USB 2.0*

1 x Audio (Line-out/Mic-in)
1 x S/PDIF

2 x SATA 3.0 (up to 6Gb/s)
2 x SATA 2.0 (up to 3Gb/s)

1 x 8-bit DIO

Watchdog Timer

Output & Interval:System Reset, Programmable via Software from 1 to 255 Seconds

TPM available Upon Request

Power

ATX power

8-pin ATX 12V power
24-pin ATX power

Consumption

Idle: i7-4770S 65W: 12V @ 1.1922A (14.3064W), 5V @ 0.8850A (4.425W), 3.3V @ 0.8183A (2.70039W)
Max: i7-4770S 65W: 12V @ 4.2839A (51.4068W), 5V @ 1.4762A (7.381W), 3.3V @ 0.9035A (2.98155W)

RTC Battery:CR2032 Coin Cell

OS Support

Windows XP Professional x86 & SP3 (32-bit) (limited function)
Windows 7 Ultimate x86 & SP1 (32-bit)
Windows 7 Ultimate x64 & SP1 (64-bit)
Windows 8 Enterprise x86 (32-bit)
Windows 8 Enterprise x64 (64-bit)


Environment

Temperature

Operating: 0 to 60°C
Storage: -20 to 85°C

Humidity

Operating: 5 to 90% RH
Storage: 5 to 90% RH

MTBF

435,517 hrs @ 25°C; 253,313 hrs @ 45°C
Calculation model: Telcordia Issue 2, Method I Case 3
Environment: GB, GC – Ground Benign, Controlled

Dimensions

ATX form factor 305mm (12") x 244mm (9.6")

Height

PCB: 1.6mm
Top Side: 38.5mm
Bottom Side: 4.4mm
