| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | IPC-P18-6422VH-CDV |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Integrated Intel® Atom® Dual Core D2550 N2600 N2800 CPU | RAM: | Onboard 2GB/4GB DDR3 |
|---|---|---|---|
| Display: | HDMI+VGA | Serial Ports: | 6 *COM |
| USB: | 6*USB2.0 | Ethernet: | 2* Gigabit LAN |
| Dimension: | 185.2*194*63.5mm | Power: | DC 12V Power Supply |
| Highlight: | 12 Volt Mini Computer Fanless,N2600 12 Volt Mini Computer,N2800 Custom Fanless PC |
||
Intel® Atom® Dual core D2550 N2600 N2800 Fanless Industrial Mini PC 6COM 2 LAN X86 embedded computer
Notice:
When you inquiry , you can choose the following Model
IPC-P18-6422VH-CDV-N2600 Integrated Atom®N2600 Dual cores 4 threads 1.6Ghz processor
IPC-P18-6422VH-CDV-N2800 Integrated Atom®N2800 Dual cores 4 threads 1.86Ghz processor
IPC-P18-6422VH-CDV-D2550 Integrated Atom®D2550 Dual cores 4 threads 1.86Ghz processor
Intel® Atom® Dual core D2550 N2600 N2800 Fanless Industrial Mini PC 6COM 2 LAN X86 embedded computer
Key features
Integrated Intel® Atom® Dual core D2550 N2600 N2800 CPU
Onboard 2GB/4GB DDR3
Support VGA+HDMI Synchronous or asynchronous display
1*VGA
1*HDMI
6*USB2.0
2*Gigabit LAN
6*COM
1* standard SATAII port
1*Mini-PCIe M-SATA Scoket
DC12V and 16-40V wide voltage power supply(optional)
Size: 185.2*194*63.5mm
Specifications
| Processor | CPU | Integrated Intel® Atom® Dual core D2550 N2600 N2800 CPU |
| CPU Package | BGA559 | |
| Chipset | Intel NM10 Express Chipset (Intel CG82NM10 PCH) | |
| BIOS | AMI EMI 16MB SMT/DIP-SPI Flash ROM | |
| RAM | Technology framework | Signal Channel DDR3 1066/1333MHz,maximum up to 4GB. |
| Capacity | Onboard 2GB/4GB DDR3 | |
| Video | Graphic controller | Intel GMA3650 Graphics Core(DVMT Max 384MB) |
| HDMI | Resolution maximum:1366*768 | |
| VGA | Resolution maximum:1366*768 | |
| Double display support | Support VGA+HDMI Synchronous or asynchronous display | |
| Network | Controller | 2*RTL8111EL LAN,support RTL/PXE diskless booting |
| Radio | Controller | Realtek HD ALC662 chipset,provide 6 channels output(line-in,line-out,Mic) |
| Hardware monitor | Watchdog & Timer | 0~255 timer (Watchdog code optional) |
| Cooler | Fanless cooling or with Fan | |

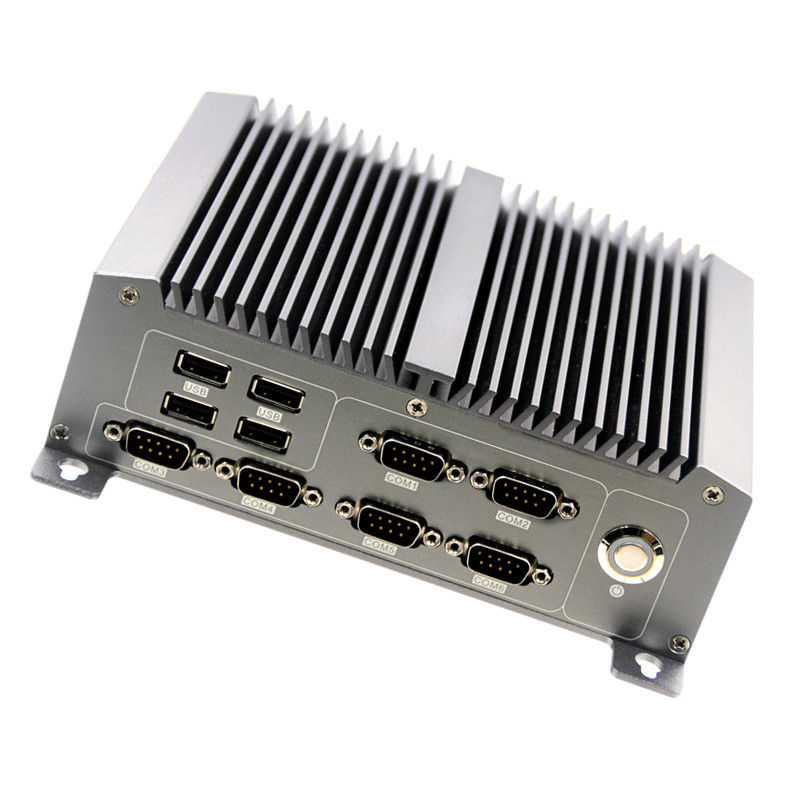

| Front I / O | Ports |
5*RS232, 1*RS422/RS485 4*USB2.0 1*Power switch |

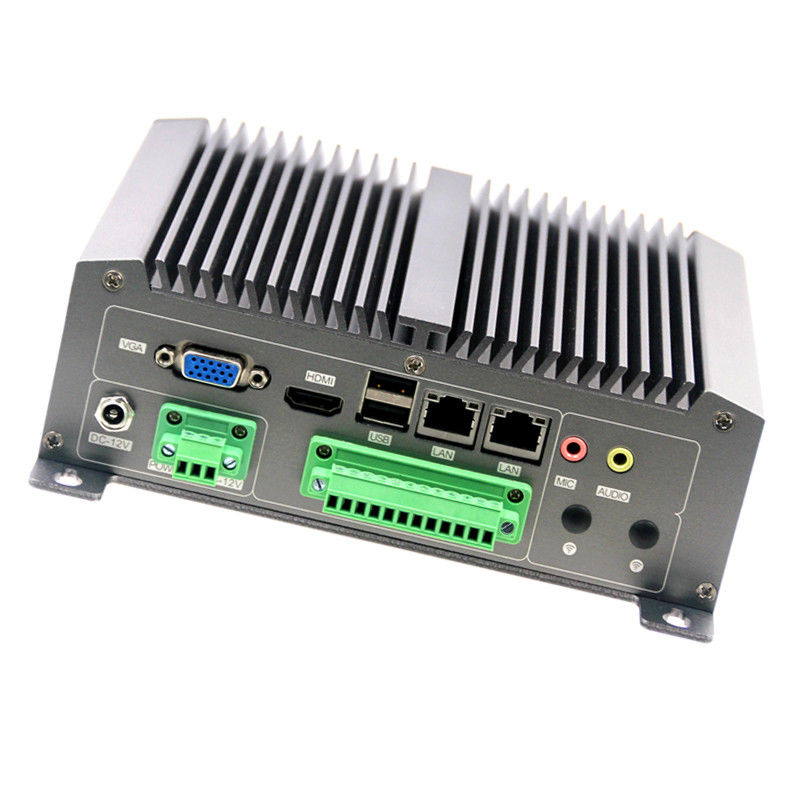

| Rear I / O | Ports |
2*USB2.0 2*LAN 1*MIC 1*Audio 1*VGA 1*HDMI 1*DC power interface |
| GPIO | 8bit (4pin in/4pin out)/ 3.3V@24mA / Sample code optional/Free definition of input/output | |
| Extended bus | Mini-PCle | 1*MINI-PCIE socket,can add wifi,3G module |
| Storage | SATA | 1*SATA2.0 support 2.5 inch HDD |
| M-SATA | 1*mSATA socket ,Supported SANDISK protocol ,Max. transmission rate 3Gb/s | |
| Power Supply | Power Type | DC12V and 16-40V wide voltage power supply(optional) |
| working environment | Operating temperature | -20℃ ~ +60℃ |
| storage temperature | -40℃ ~ +85℃ | |
| Working humidity | 0% ~ 90% relative humidity, non-condensing | |
| Storage humidity | 0% ~ 90% relative humidity, non-condensing | |
| Case | Color | Gray |
| Size | 185.2*194*63.5mm | |
| Material | 6063 |
