| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | IPC-P09-6422VH-8TH |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Processor: | Intel® Core™ Kaby Lake R I3-8130 I5-8250U I7-8550U | Memory: | Onboard 2G\4G\8GB DDR4 |
|---|---|---|---|
| COM: | 6 *COM | USB: | 6* USB |
| Network: | 2* Gigabit LAN | Display: | 1*VGA , 1*H-D-M-I |
| Size: | 209.4*122.5*70.6mm | Power Supply: | DC12V Power Supply |
| Highlight: | 2LAN Industrial Mini PC,6COM Industrial Mini PC,I5-8250U mini industrial pc |
||
6COM 2LAN Intel® 8th generation i3-8130 i5-8250U i7-8550U industrial mini computer DC power supply
Notice:
When you inquiry , you can choose the following Model
IPC-P09-6422VH-8TH-I3 Integrated Intel® Kaby Lake R i3-8130U dual cores 4 threads 2.2~3.4GHz Processor, 4 MB Intel® Smart Cache
IPC-P09-6422VH-8TH-I5 Integrated Intel® Kaby Lake R i5-8250U quad cores 8 threads1.6~3.4GHz Processor, 6 MB Intel® Smart Cache
IPC-P09-6422VH-8TH-I7 Integrated Intel® Kaby Lake R i7-8550U quad cores 8 threads1.8~4.0GHz Processor, 8 MB Intel® Smart Cache
6COM 2LAN Intel® 8th generation i3-8130 i5-8250U i7-8550U industrial mini computer DC power supply
Key features
Intel® Core™ Kaby Lake R i3-8130 / i5-8250U / i7-8550U Processor
Onboard 2G4G8GB DDR4 memory
Can add one Ram socket , max to be 16GB Ram
Support VGA+HDMI Synchronous or asynchronous display
1*VGA
1*HDMI
4*USB2.0, 2*USB3.0
2*Gigabit LAN
6*COM
1*SATA3.0
1*Mini-SATA
DC12V Power supply(wide voltage 8-36V Power supply for optional)
Size: 209.4*122.5*70.6mm
Specifications
| Processor | Intel® Core™ Kaby Lake R i3-8130 / i5-8250U/ i7-8550U Processor |
| Chipset | Intel ® Coffee Lake-U serial chipset |
| Ram socket |
Onboard 2GB4GB8GB DDR4 memory Can add one Ram socket , max to be 16GB Ram |
| Network | Onboard 2* Gigabit LAN (1*Intel I219 and 1*Intel I211) |
| Audio | Onboard HDA ALC662 |
| Storage |
1*SATA3.0 1*onboard SSD 1*Mini-SATA (onboard SSD or Mini-SATA for alternative) |
| Rear panel interface |
2*RJ45 LAN 1*HDMI 1*VGA 4*COM(RS232) 2*USB3.0 1*DC 1*LINE-OUT 2*WIFI antenna interface |
| Front panel interface |

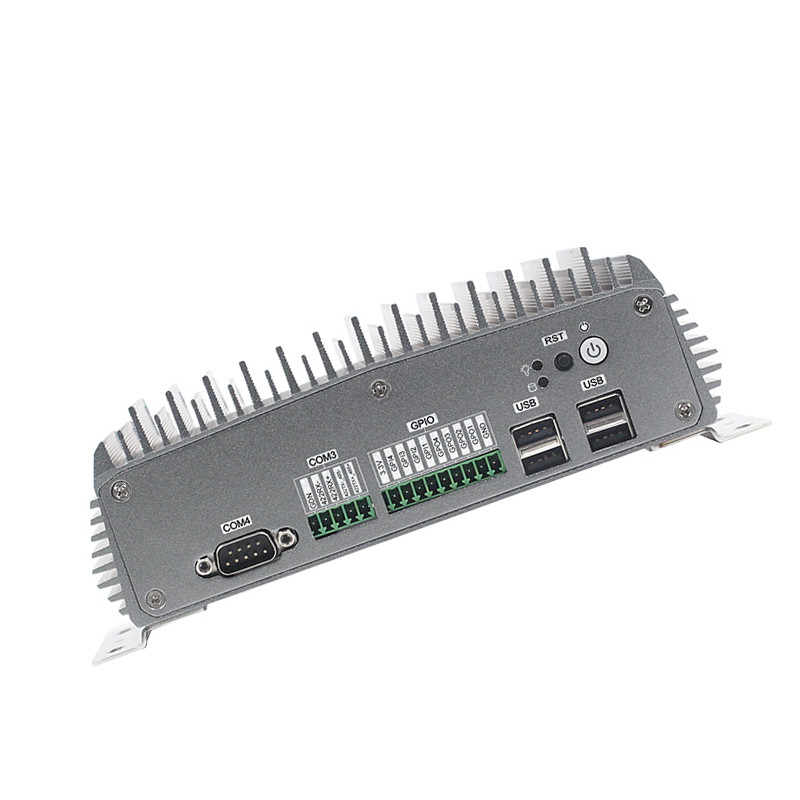

1* fast switch button 1* power indicator 1* hard disk indicator 4*USB2.0 1*COM(RS232) 1*COM(RS422/485 Phoenix terminal interface ) 1*GPIO |
| Chassis | Silver |
| Size | 209.4*122.5*70.6mm |
| Operating system | Windows7/Windows 8/Windows8.1 /Windows10/linux |
| Power Type | DC12V Power supply(wide voltage 8-36V Power supply for optional) |
| Operating temperature | -20℃ ~ +60℃ |
| storage temperature | -40℃ ~ +85℃ |
| Working humidity | 0% ~ 90% relative humidity, non-condensing |
| Storage humidity | 0% ~ 90% relative humidity, non-condensing |
Advantages
Small size
All Vegashine mini pcs smaller than A4 paper, some of them only 3.5 inch size, just like the HDD sized using it traditional fat computers. Most of those small sized mini pc can be mounted to the backside of monitor, and takes almost no space of your desk, make your desk more clear and smart.
Durability
all those fanless mini pcs are highly intergrated, fanless design makes it runs silent and no need extra maintenance like normal fat comptuters. And most of them using aluminium alloy computer case, very durable.
Low power
Using 12V power supply, most of them power consumption from 15W to 30W, compare to 150W traditional pc's consumption, it helps saving more than 80% energy.
